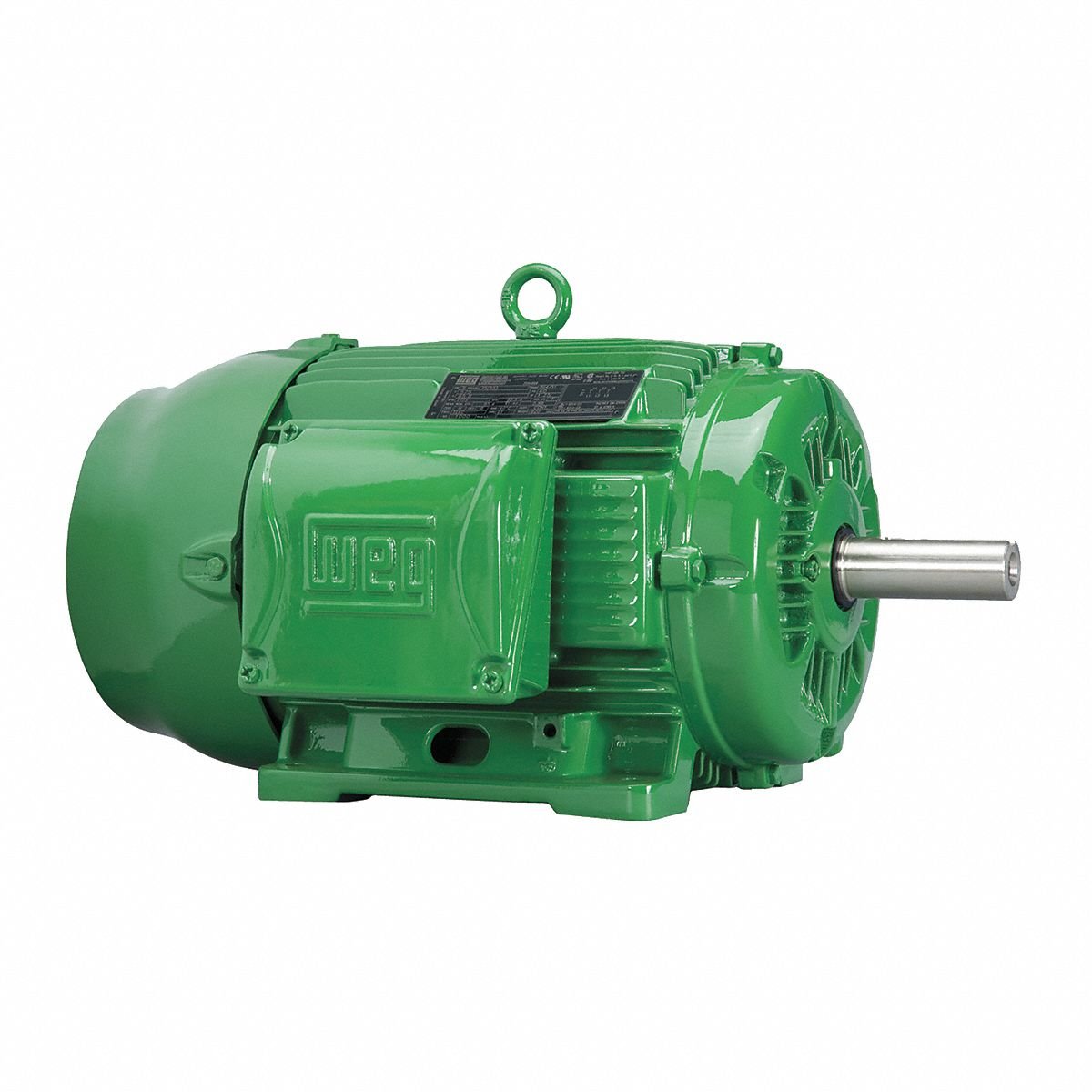

WEG General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 125 hp, 230/460V AC

Specifications & Compliance

Manufacturer #

12512EG3G445T-W22

Brand

WEG

Nameplate Horsepower @ 60 Hz

125 hp

Nameplate RPM @ 60 Hz

1,190 RPM

Frame Size

444-5T

Nameplate Voltage @ 60 Hz

230/460V AC

Full Load Current @ 60 Hz

152.0 A

Motor Enclosure

TEFC

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.25

Output Shaft (Dia x L)

3-3/8 in x 8-1/2 in

Frame Family

NEMA 440

Motor Enclosure Type

Totally Enclosed Fan Cooled

Mounting Type

Rigid Base
