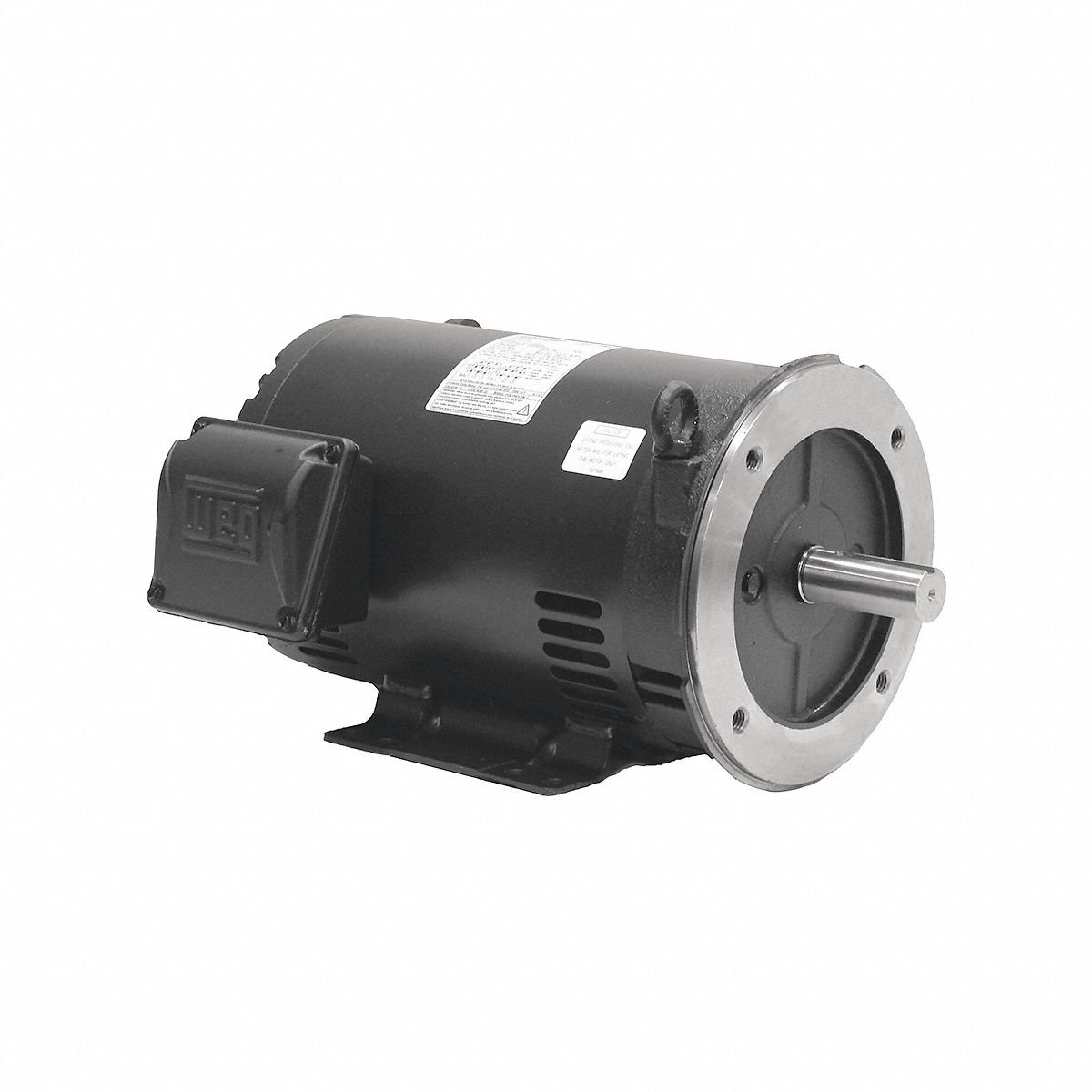

WEG General Purpose Motor: C-Face/Rigid Base Mount, Open Drip Proof, 1 1/2 hp, 230/460V AC

Specifications & Compliance

Manufacturer #

00158OT3E145TC-S

Brand

WEG

Nameplate Horsepower @ 60 Hz

1-1/2 hp

Nameplate RPM @ 60 Hz

1,760 RPM

Frame Size

143-5TC

Nameplate Voltage @ 60 Hz

230/460V AC

Full Load Current @ 60 Hz

4.14/2.07 A

Motor Enclosure

ODP

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

7/8 in x 2-1/4 in

Frame Family

NEMA 140

Motor Enclosure Type

Open Drip Proof

Mounting Type

Rigid Base; C-Face
