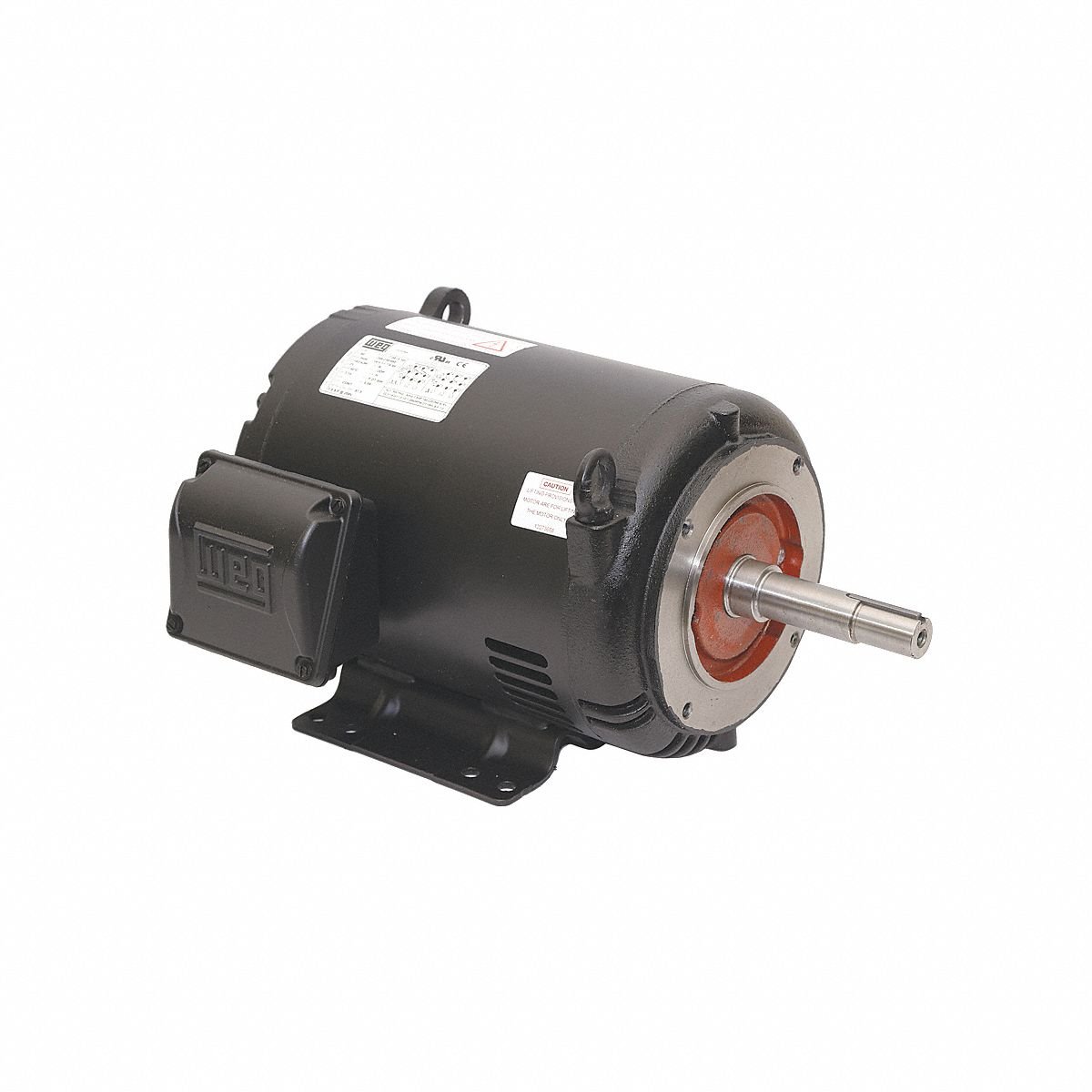

WEG Close-Coupled Pump Motor: 254-6JP Frame Size, C-Face/Rigid Base Mounting, Open Drip Proof, 20 hp

Specifications & Compliance

Manufacturer #

02018OT3E256JP-S

Brand

WEG

Nameplate Horsepower @ 60 Hz

20 hp

Nameplate RPM @ 60 Hz

1,770 RPM

Frame Size

254-6JP

Nameplate Voltage @ 60 Hz

208-230/460V AC

Full Load Amps @ 60 Hz

55.3-50.0/25.0 A

Motor Enclosure

ODP

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

1-1/4 in x 8-1/8 in

Mounting Type

Rigid Base; C-Face
