USB Galvanic Isolator, Up To 6KV, Electrical Noise Isolator, IP40, DIN Rail Mount, Isolated Power Filter, USB 2.0/1.1, 5V/250mA, Plug-and-Play, TAA

$83.99

Protect computers and devices from power surges with this high-voltage USB isolator

SKU: U1-USB-ISOLATOR Category:

Specifications & Compliance

UPC
065030909464
Brand
StarTech.com
Included in Package
1 - USB Isolator, 1 - 3ft (0.9m) USB-B to USB-A Cable, 1 - Adhesive Strip, 1 - DIN Rail Mounting Kit
Shipping (Package) Weight
4.6 oz [130 g]
Weight of Product
2.6 oz [72.3 g]
Product Length
2.2 in [55.0 mm]
Product Width
3.5 in [89.0 mm]
Product Height
0.9 in [24.0 mm]
Package Depth
4.3 in [11 cm]
Package Width
2.0 in [52 mm]
Package Height
2.5 in [63 mm]
Color
Black
Warranty
2 Years
Connector 1
Barrel Power (M-Type, OD 5.5mm / ID 2.1mm)
Connector 1 (Quantity)
1
Connector 2
USB-A (480Mbps, 2.5W)
Connector 2 (Quantity)
1
Operating Temperature
-22 to 167°F (-30 to 75°C)
Storage Temperature
-40 to +185°F (-40 to +85°C)
Humidity
0 to 95% (non-condensing)
Maximum Data Transfer Rate
12Mbps
Power Source
Bus Powered
Chipset ID
Analog - ADUM4160
Output Voltage
6 DC
Connector 3
USB-B (480Mbps, 2.5W)
Connector 3 (Quantity)
1
LED Indicators
1 - Linked LED: </br> Solid Blue: Indicates there's a USB Device connected to the Isolated USB Device Port </br> Off: No USB Device connected on the Isolated USB </br> </br> Aux Power LED: </br> Solid Green: External power is being supplied </br> Off: No external power is being supplied
Type and Rate
USB 1.1 (1.5Mbits), USB 2.0 (12Mbits)
Plug Type
M

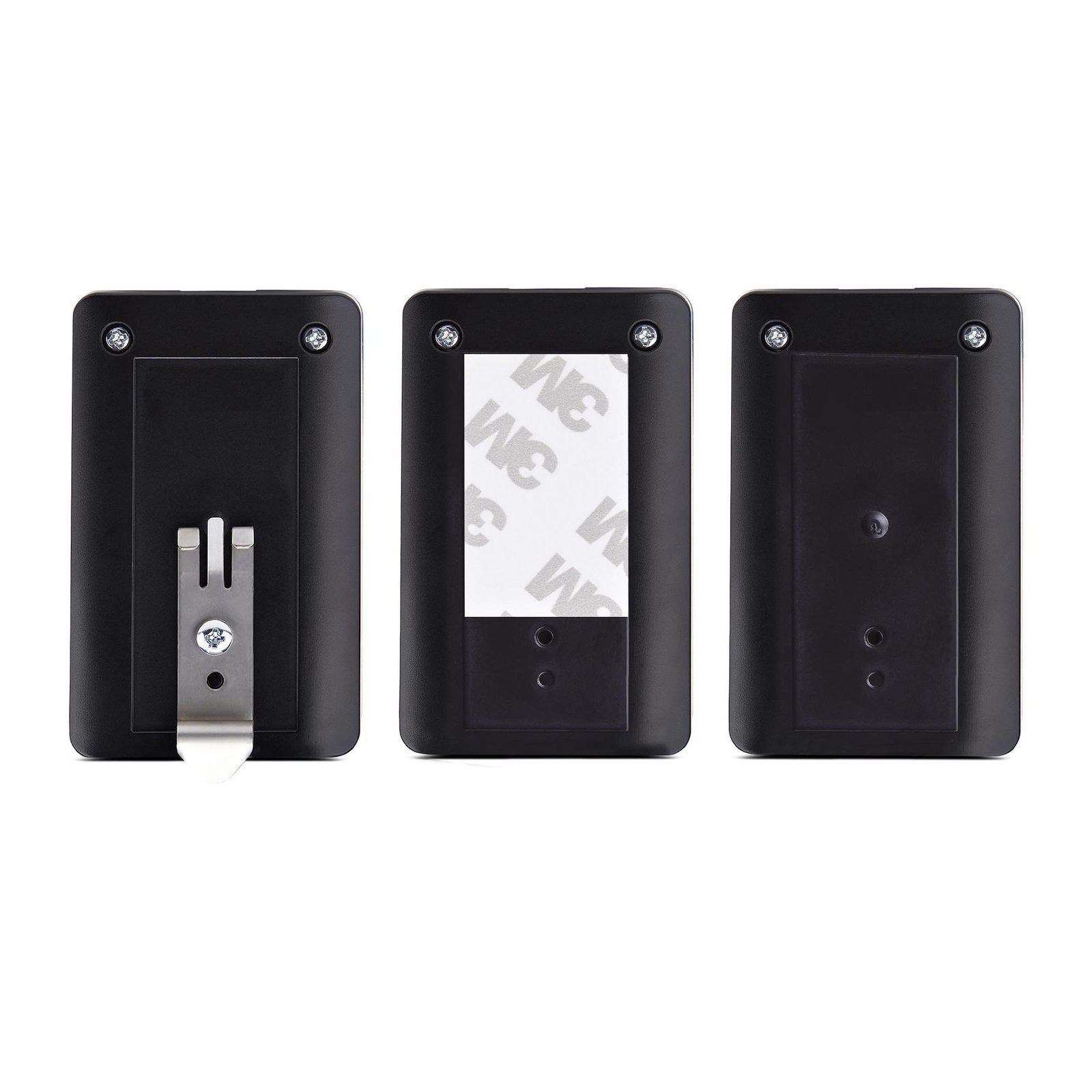

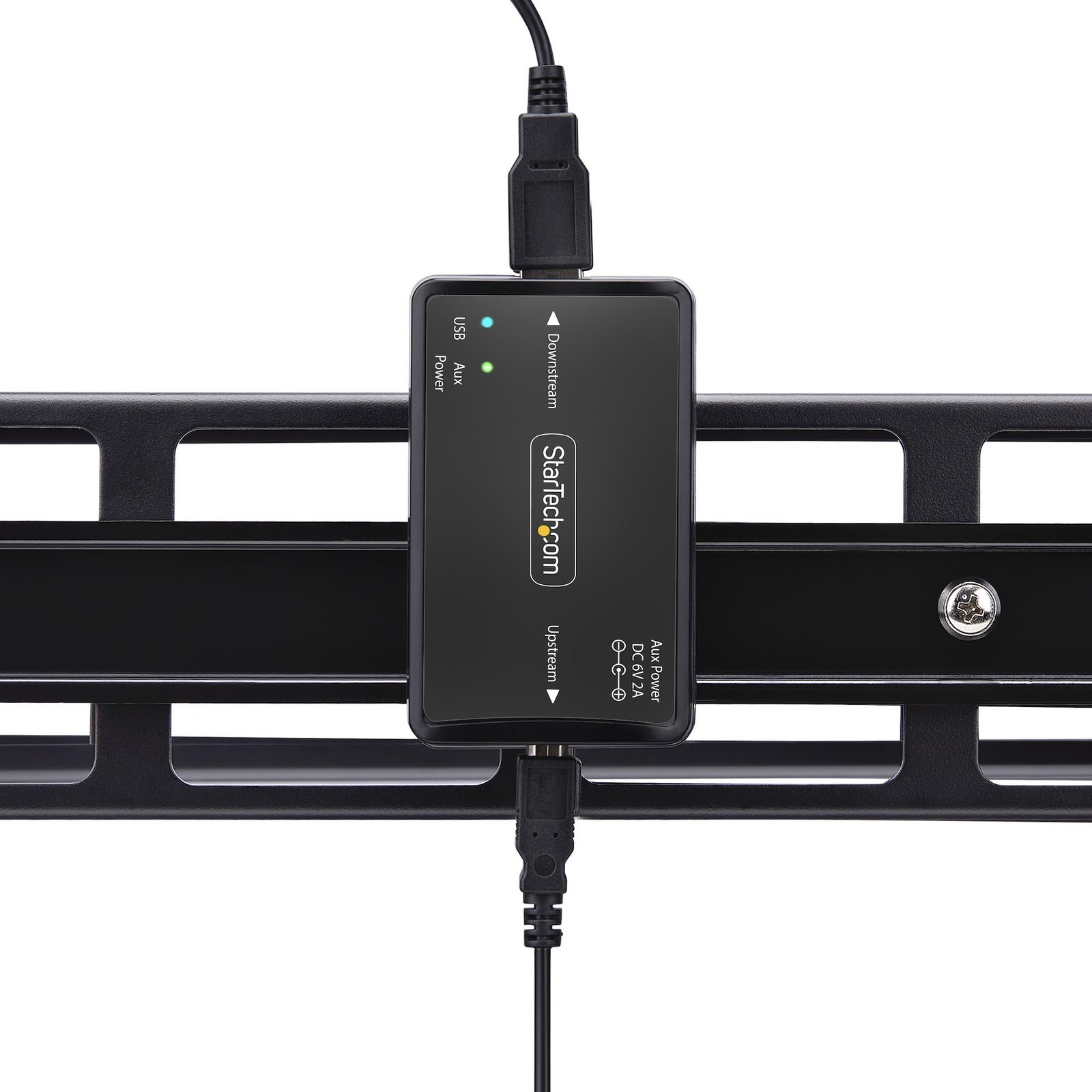

Mounting Options
DIN Rail
Total Available Power Output
2.5W
Total USB Power Output
5V

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
