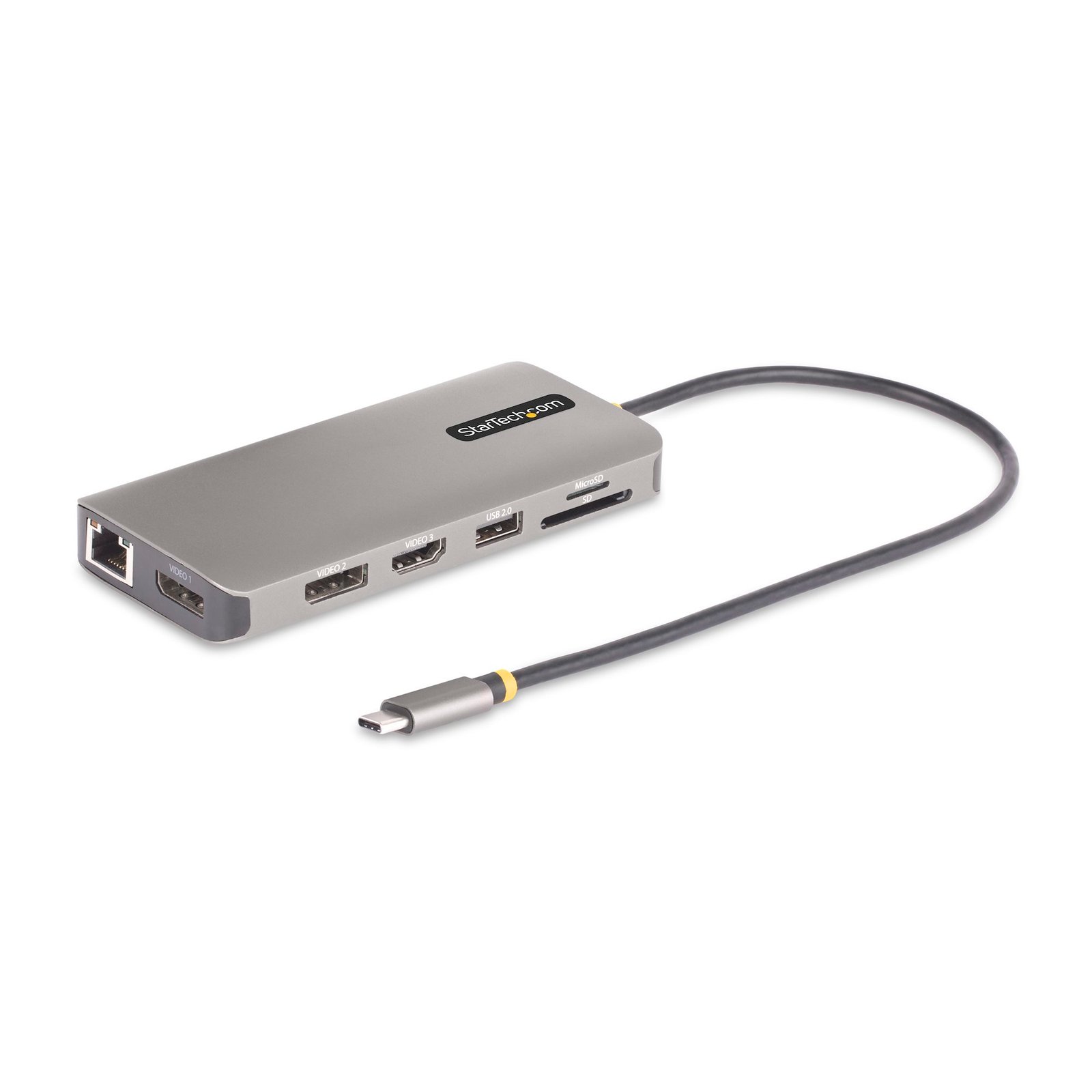

USB-C Triple-Monitor Multiport Adapter, Dual 4K 60Hz + 4K 30Hz HDMI & DisplayPort, 4-Port USB Hub, 100W PD Pass-Through, GbE, SD/MicroSD

USB-C Triple-Monitor Multiport Adapter, Dual 4K 60Hz + 4K 30Hz HDMI & DisplayPort, 4-Port USB Hub, 100W PD Pass-Through, GbE, SD/MicroSD Card Readers

$118.99

Create a workstation wherever you work with multiple displays, multiple USB ports, Gigabit Ethernet, and an SD slot

SKU: 154B-USBC-MULTIPORT Category:

Specifications & Compliance

UPC
065030899499
Brand
StarTech.com
Included in Package
1 - USB-C Multiport Adapter, 1 - Quick-Start Guide
Shipping (Package) Weight
6.7 oz [190 g]
Weight of Product
3.8 oz [108 g]
Product Length
5.1 in [13.0 cm]
Product Width
2.2 in [56.0 mm]
Product Height
0.6 in [16.0 mm]
Package Depth
9.6 in [24.5 cm]
Package Width
5.1 in [12.9 cm]
Package Height
1.3 in [33 mm]
Color
Space Gray
Cable Length
11.8 in [30 cm]
Warranty
3 Years
Connector 1
HDMI
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2
DisplayPort
Connector 2 (Quantity)
2
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
5~90% RH (Non-condensing)
Material
Aluminum and Plastic
Maximum Data Transfer Rate
USB 3.2 Gen 1 (5 Gbps)
Industry Standards
HDMI 2.0b, DisplayPort 1.4, USB Power Delivery Specification Rev. 3.0, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Power Source
Bus Powered and Host USB-C Power Adapter
Chipset ID
VIA - VL102, VIA - VL817, Synaptics - VMM5320, Realtek - RTL8153, Solid State System - SSS1700, Genesys Logic - GL823K
Special Notes
Ensure computer drivers, firmware, and operating system are up to date prior to using the docking station
Power Delivery
100W
Connector 3
USB-A (5Gbps, 4.5W)
Connector 3 (Quantity)
1
Power Consumption
15W
LED Indicators
2 - Connection state/activity LEDs under GbE port
Bus Type
USB-C
Type and Rate
USB 5Gbps
System and Cable Requirements
A Windows or ChromeOS based computer with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB-C Power Delivery, DP alt mode and MST)
Maximum Digital Resolutions
<b>Triple Display:</b><br>3840 x 2160 60Hz<br>3840 x 2160 60Hz<br>3840 x 2160 30Hz<br><br> <b>Dual Display:</b><br>3840 x 2160 60Hz<br>3840 x 2160 60Hz<br><br> <i><b>GPU CAPABILITIES:</b> A laptop with a discrete video card is recommended for maximum dual or triple display performance. Must also support DP 1.4 Alt-Mode with DSC. Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays (laptop screen may be disabled when connected to three monitors)</i>
Host Connector 1
USB-C (5Gbps, 4.5W)
Host Connector 1 (Quantity)
1
Audio
Yes
Compatible Networks
10/100/1000 Mbps
Connector 4
USB-A (480Mbps, 2.5W)
Connector 4 (Quantity)
2
Number of Displays
3
UASP Support
Yes
Connector 5
USB-C (100W PD Only)
Connector 5 (Quantity)
1
Full Duplex Support
Yes
Fast-Charge Port(s)
No
Connector 6
RJ-45
Connector 6 (Quantity)
1
Wake-On-LAN (WOL)
Yes
Displays Supported
3
4K Support
Yes
Connector 7
3.5mm (4 Conductors, TRRS)
Connector 7 (Quantity)
1
PXE
Yes
Connector 8
SD Card Slot
Connector 8 (Quantity)
1
Connector 9
SD Card Slot
Connector 9 (Quantity)
1

Questions & Answers

I am having issues with my new network interface card (NIC) and my on-board NIC is still enabled. What do I do in Windows?
Sometimes an on-board network interface card (NIC) conflicts with a new NIC. In these cases it is best to disable the on-board NIC. The best way to disable your on-board NIC is to go into your BIOS and disable it there if possible. To do this, consult your motherboard manual. You can also disable any NIC in Windows. Here is how you do this: First click Start , or, in Windows 10 and 8, hold down the Windows key and press X . Then click Control Panel . Windows 10 Click Network and Internet . Click Network and Sharing Center . On the left, click Change adapter settings . Right-click the NIC that you would like to disable and select Disable . Windows 8 Click Network and Sharing Center . On the left, click Change adapter settings . Right-click the NIC that you would like to disable and select Disable . Windows 7 Click Network and Internet . Click Network and Sharing Center . On the left, click Change adapter settings . Right-click the NIC that you would like to disable and select Disable . Windows Vista Click Network and Sharing Center . On the left, click Manage network connections . Right-click the NIC that you would like to disable and select Disable . Windows XP Click Network Connections . Right-click the NIC that you would like to disable and select Disable .

Why do I have speed or connectivity issues?
If you are experiencing speed or connectivity issues, it is best to set a specific speed at half or full duplex in your settings. You can set your network adapter to perform at a certain speed, but the device that the adapter is connected to (whether it is a router, switch, or computer) must also be able to perform at the same speed. Note : You must log in as the local administrator before you continue. To open Device Manager: Press Windows key + R . Type devmgmt.msc . Click OK . Open the Networking adapters section. Right-click the network adapter that you want to change and select Properties . Click the Advanced tab. Scroll down to Speed & Duplex . By default, it is set to Auto-Negotiate . Select any of the speeds that you see in the list. Click OK and restart your computer.

Can I use my network card for a Preboot Execution Environment (PXE)?
StarTech.com does not support a Preboot Execution Environment (PXE) as this requires third-party software. However, our devices can be used as long as the following conditions are met: The BIOS must support PXE. The BIOS must see the card. The environment must have drivers for the chipset used in the card. If using a USB networking card, the environment must have support for USB devices as well.
