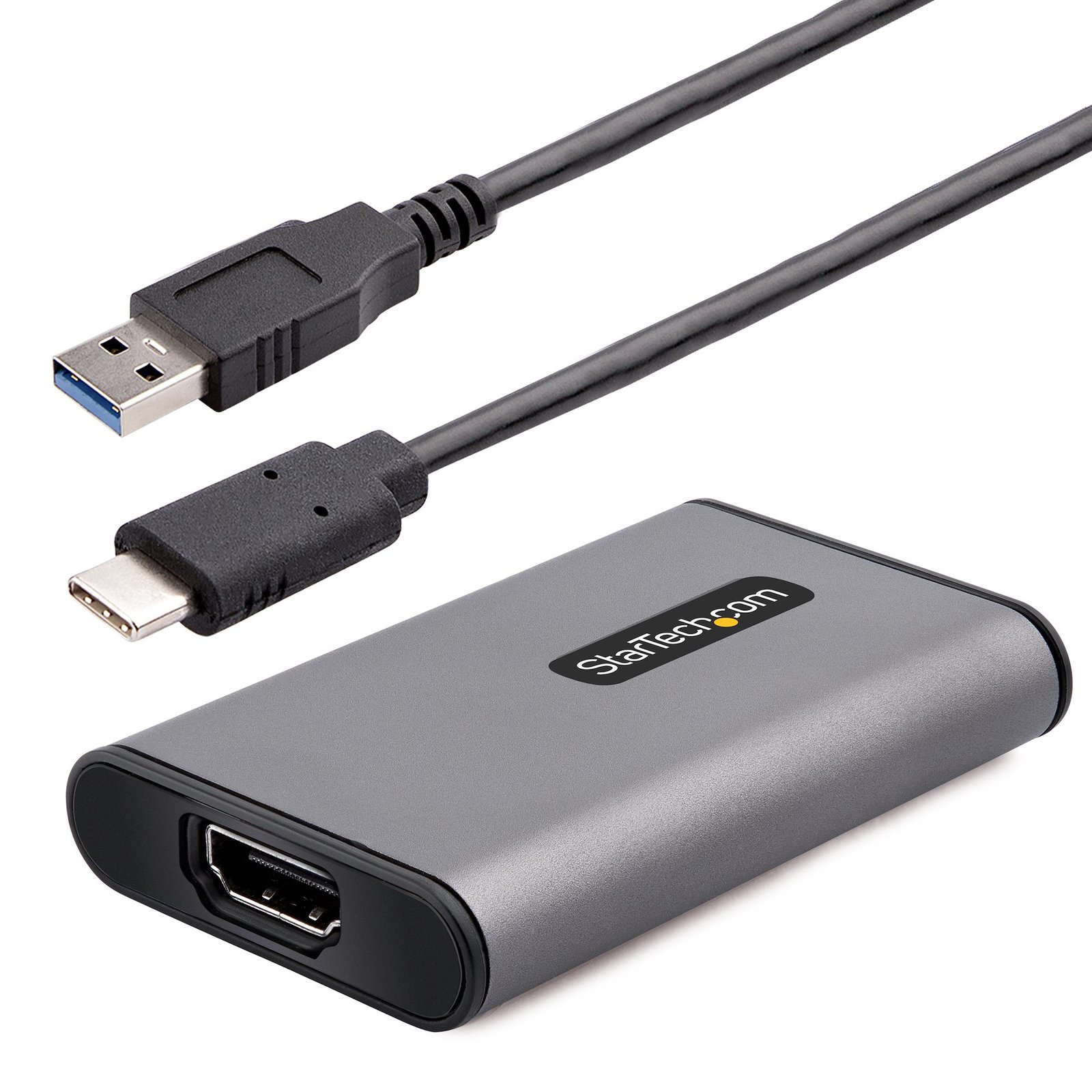

USB 3.0 HDMI Video Capture Device, 4K 30Hz Video Capture Adapter/External USB Capture Card, UVC, Live Stream, Screen Recorder, Works w/ USB-A, USB-C, TB3 - Windows/Mac/Ubuntu - TAA

Specifications & Compliance

UPC

065030895682

Brand

StarTech.com

Included in Package

1 - Capture Device, 1 - USB-A to Micro USB-B Host Cable, 1 - USB-C to Micro USB-B Host Cable, 1 - Quick-Start Guide

Shipping (Package) Weight

4.9 oz [139 g]

Weight of Product

1.4 oz [41.0 g]

Product Length

2.9 in [73.0 mm]

Product Width

1.7 in [44.0 mm]

Product Height

0.5 in [12.0 mm]

Package Depth

4.2 in [10.7 cm]

Package Width

6.1 in [15.5 cm]

Package Height

1.5 in [37 mm]

Color

Gray

Cable Length

15.7 in [40 cm]

Warranty

2 Years

Connector 1

HDMI

Connector 1 (Quantity)

1

Package Quantity

1

Connector 2

USB Micro-B (5Gbps, 4.5W)

Connector 2 (Quantity)

1

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

20 - 90%

Material

Aluminum

Power Source

Bus Powered

Chipset ID

ITE - IT66021, ITE - IT9323

Special Notes

A computer that supports USB 3.2 Gen 1 (5Gbps) or higher is required. USB 3.2 Gen 1 (5Gbps) is also known as USB 3.0. This product will not work with USB 2.0 or 1.1 controllers., This device is HDCP compliant, and will not capture copy protected video, such as Blu-rays or the video output of Mac computers. However, this device will capture video to Mac computers and will capture non-encrypted video., This device is compatible with hosts that have Thunderbolt 3/4 ports, but will only run at up to USB 3.2 Gen 1 (5Gbps).

Input Voltage

5

Power Consumption

1.5 W

Input Current

300 mA

Maximum Digital Resolutions

3840 x 2160p @ 30fps

Audio

Yes

AV Input

HDMI

AV Output

USB, USB-C

Audio Specifications

HDMI - 2 Channel Audio
