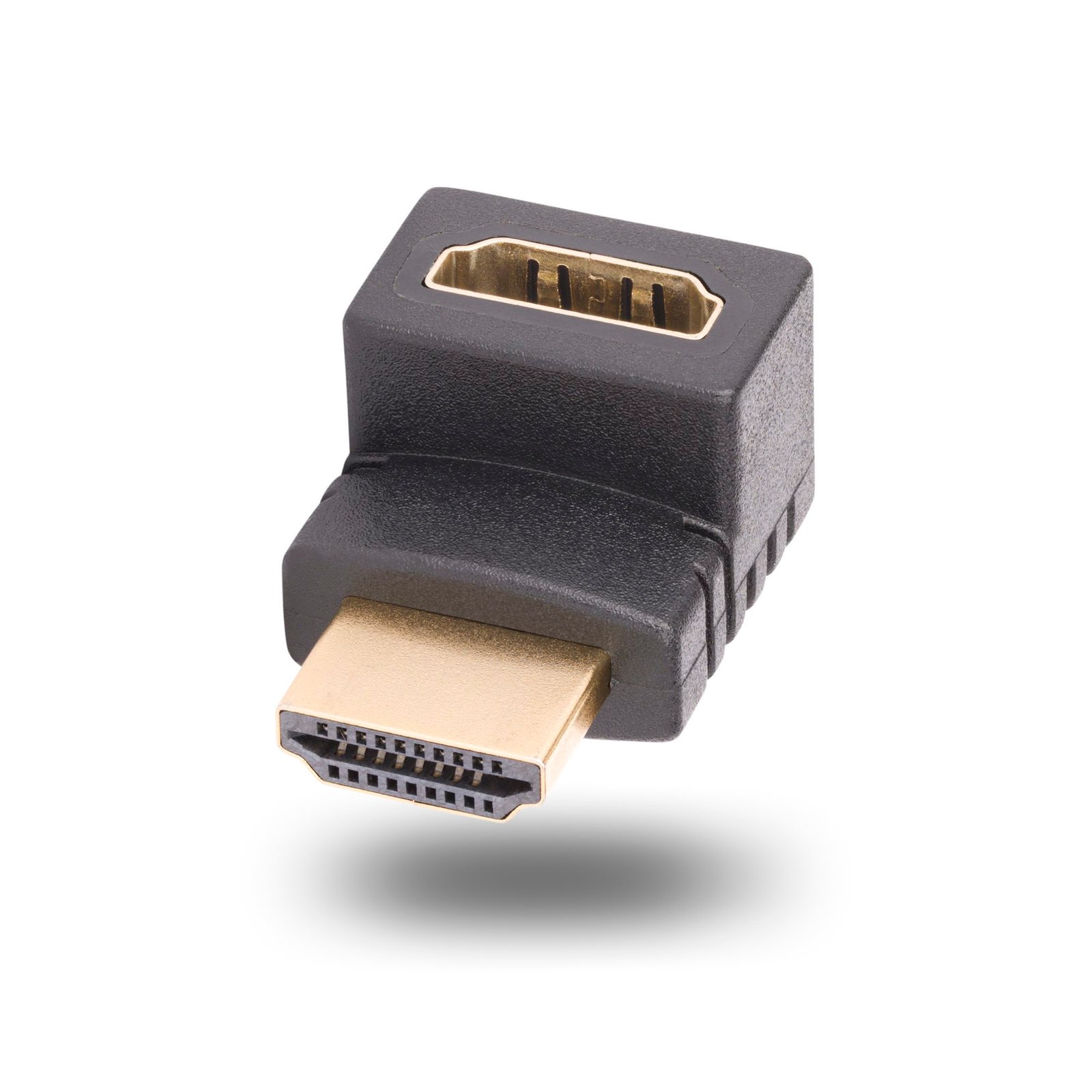

Up Angle HDMI 2.0 Adapter, Male to Female, Vertical 90-Degree Angled HDMI Port Saver, 4K 60Hz, High Speed HDMI Connector Extension, M/F

Specifications & Compliance

UPC

065030903899

Brand

StarTech.com

Included in Package

1 - HDMI 2.0 Up Angle Adapter - M/F

Shipping (Package) Weight

0.5 oz [14 g]

Weight of Product

0.4 oz [10 g]

Product Length

1.2 in [30.6 mm]

Product Width

0.8 in [20.7 mm]

Product Height

0.6 in [15.7 mm]

Package Depth

2.3 in [58 mm]

Package Width

3.6 in [91 mm]

Package Height

0.8 in [21 mm]

Color

Black

Warranty

Lifetime

Connector 1

HDMI

Connector 1 (Quantity)

1

Connector 2

HDMI

Connector 2 (Quantity)

1

Operating Temperature

0°C to 45°C (32°F to 113°F)

Storage Temperature

-10°C to 70°C (14°F to 176°F)

Humidity

10% - 90%

Material

PVC

Maximum Data Transfer Rate

18Gbps

Industry Standards

HDMI 2.0

Number of Conductors

19

Connector Plating

Gold

MTBF

Rated beyond 10,000 connector mating cycles

Maximum Digital Resolutions

4K 60Hz

Connector Style

Right Angled

Active or Passive Adapter

Passive

Audio Specifications

HDMI - 32 Channel Audio, HDMI - 7.1 Channel Audio

HDR Support

HDR10
