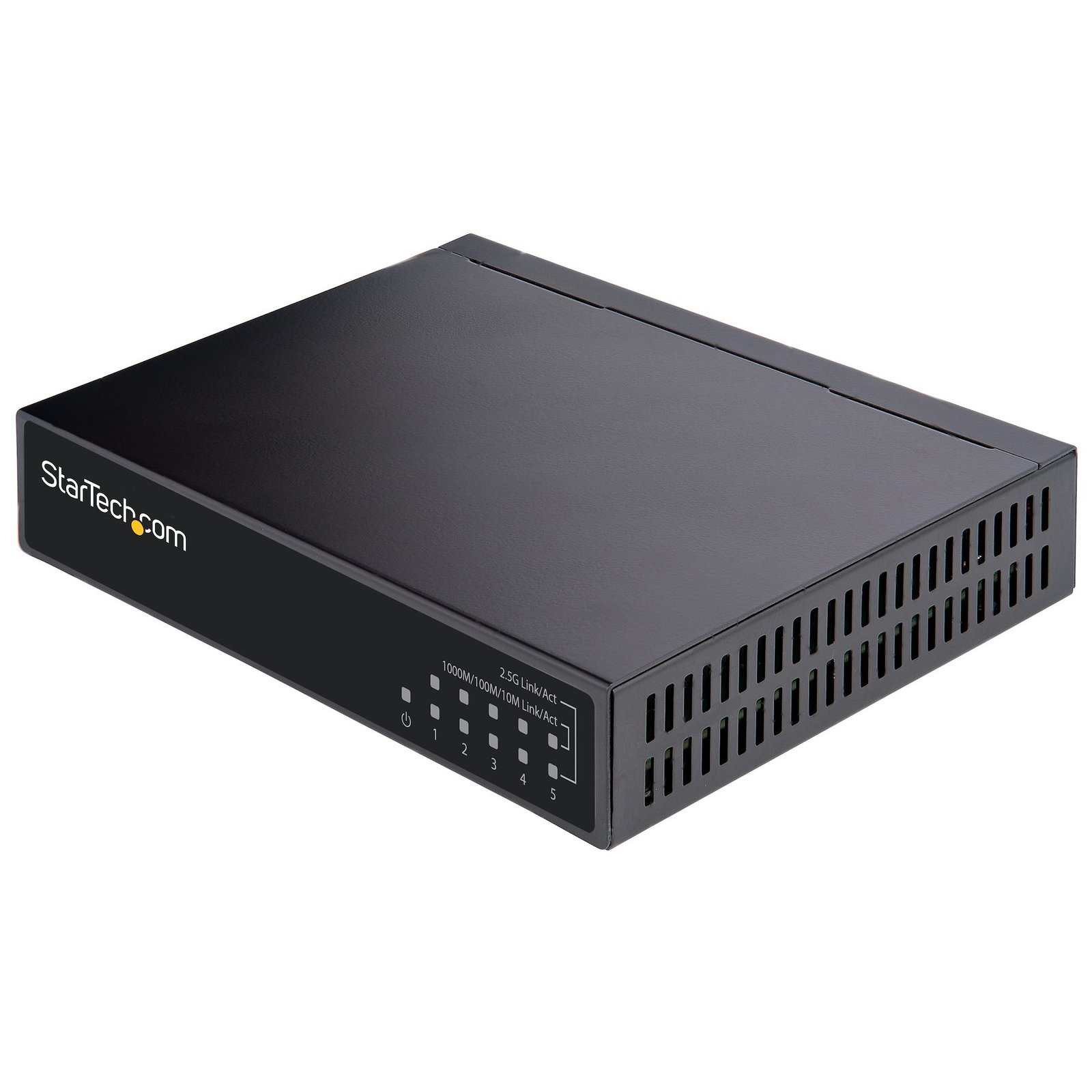

Unmanaged 2.5G Switch - 5 Port Gigabit Switch - 2.5GBASE-T Unmanaged Ethernet Switch - Ethernet Splitter - Din Rail or Wall Mount

Unmanaged 2.5G Switch - 5 Port Gigabit Switch - 2.5GBASE-T Unmanaged Ethernet Switch - Ethernet Splitter - Din Rail or Wall Mount - Multi-Gigabit - Auto-MDIX - 9K Jumbo

$59.99

2.5G switch | Multi-Gigabit | 5 port | Unmanaged | Cat5e/Cat6/Cat6a cabling | Wall mount kit | K-slot

SKU: DS52000 Category:

Specifications & Compliance

UPC
065030893183
Brand
StarTech.com
Included in Package
1 - Ethernet Switch, 1 - Universal Power Adapter, 1 - Wall Mounting Kit, 1 - Quick-Start Guide
Shipping (Package) Weight
33.7 oz [954 g]
Weight of Product
22.5 oz [638.0 g]
Product Length
4.7 in [12.0 cm]
Product Width
6.1 in [15.5 cm]
Product Height
1.2 in [30.0 mm]
Package Depth
5.3 in [13.4 cm]
Package Width
11.3 in [28.6 cm]
Package Height
2.8 in [70 mm]
Color
Black
Warranty
2 Years
Connector 1
RJ-45
Connector 1 (Quantity)
5
Package Quantity
1
Connector 2
Barrel Power (M-Type, OD 5.5mm / ID 2.1mm)
Connector 2 (Quantity)
1
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Humidity
10~90% RH
Material
Steel
Maximum Data Transfer Rate
2.5 Gbps
Industry Standards
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-TX, IEEE 802.3bz 2.5GBASE-T, IEEE 802.3az Energy Efficient Ethernet (EEE), IEEE 802.1p (QoS), IEEE 802.3x (Full-Duplex)
Power Source
AC Adapter Included
Chipset ID
Realtek RTL8371, Realtek RTL8226B
Input Voltage
100 - 240 AC
Output Voltage
12V DC
LED Indicators
1 - Power LED - Green, 5 - Top Row LEDs - Green, 5 - Bottom Row LEDs - Green
Number of Ports
5
Interface
RJ45 (2.5G Ethernet)
Input Current
0.5 A
Output Current
1
Plug Type
M
Compatible Networks
2.5G/1G/100Mbps/10Mbps
Center Tip Polarity
Positive
Maximum Cable Length
328.1 ft [100 m]
Auto MDIX
Yes
Full Duplex Support
Yes
Max Distance
100m [328ft]
Jumbo Frame Support
9K max.
Flow Control
IEEE 802.3x Full-Duplex
Compatible Lock Slot
Kensington Standard Slot (K-Slot)
Switching Architecture
Store-and-Forward

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
