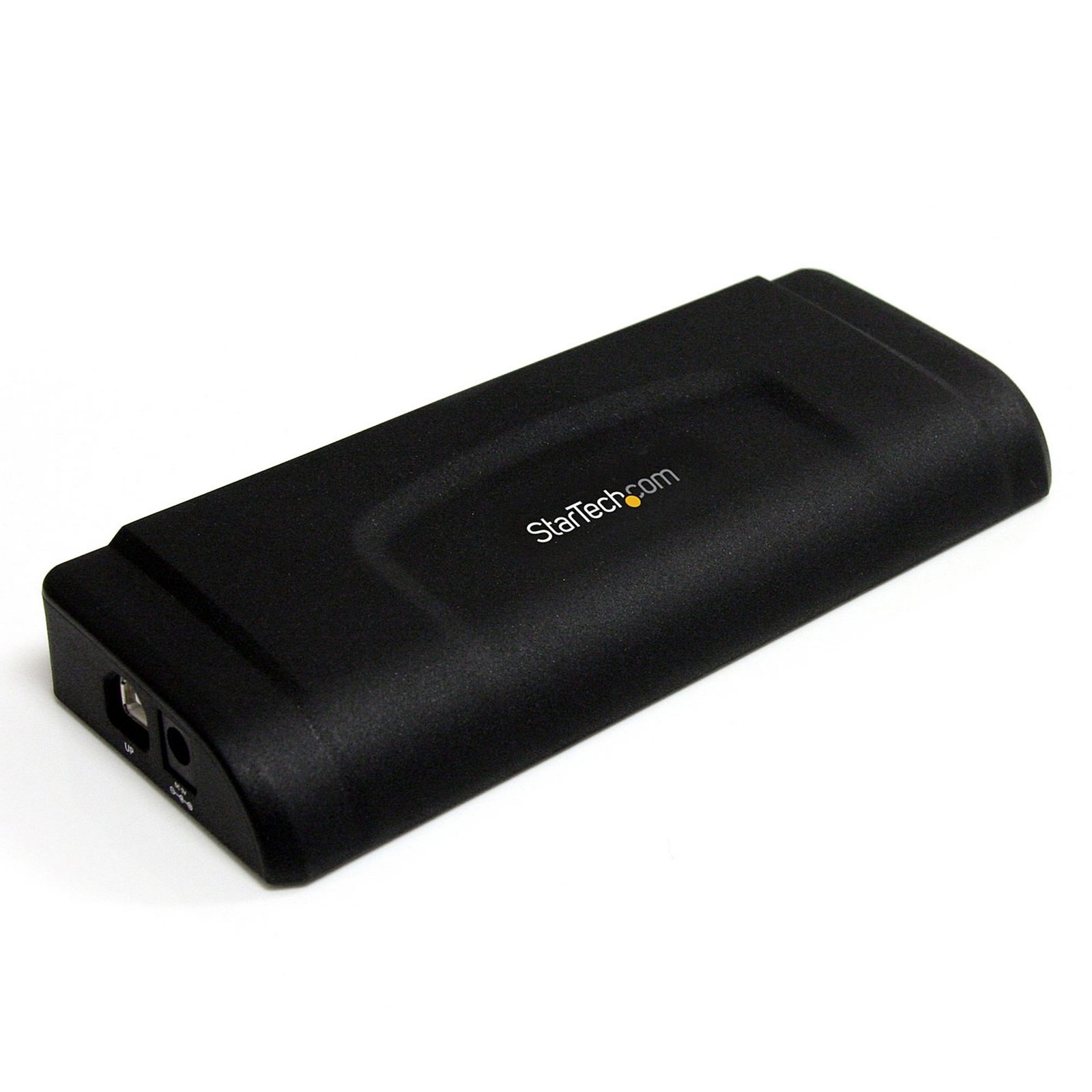

Universal Laptop USB 2.0 Docking Station with Audio and Ethernet

Specifications & Compliance

UPC

065030838863

Brand

StarTech.com

Included in Package

1 - USB Docking Station, 1 - USB cable, 1 - Universal Power Adapter, 3 - Power Adapter Plug (NA/UK/EU), 1 - Driver CD, 1 - Instruction Manual

Shipping (Package) Weight

24.4 oz [690 g]

Weight of Product

6.5 oz [185 g]

Product Length

7.2 in [18.3 cm]

Product Width

2.8 in [70 mm]

Product Height

1.0 in [25 mm]

Package Depth

3.0 in [75 mm]

Package Width

9.1 in [23 cm]

Package Height

5.7 in [14.5 cm]

Color

Black

Warranty

2 Years

Connector 1

USB-A (480Mbps, 2.5W)

Connector 1 (Quantity)

4

Connector 2

RJ-45

Connector 2 (Quantity)

1

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-10°C to 80°C (14°F to 176°F)

Humidity

0~90% RH

Material

Plastic

Power Source

AC Adapter Included

Chipset ID

ASIX - MCS7830 <br> C-Media - CM108

Input Voltage

110V-240V AC

Output Voltage

5 DC

Connector 3

3.5mm (3 Conductors, TRS)

Connector 3 (Quantity)

2

LED Indicators

1 - RJ45 Link, 1 - RJ45 Activity

Output Current

3

System and Cable Requirements

1 x Free USB port

Center Tip Polarity

Positive

Connector 4

USB-B (480Mbps, 2.5W)

Connector 4 (Quantity)

1
