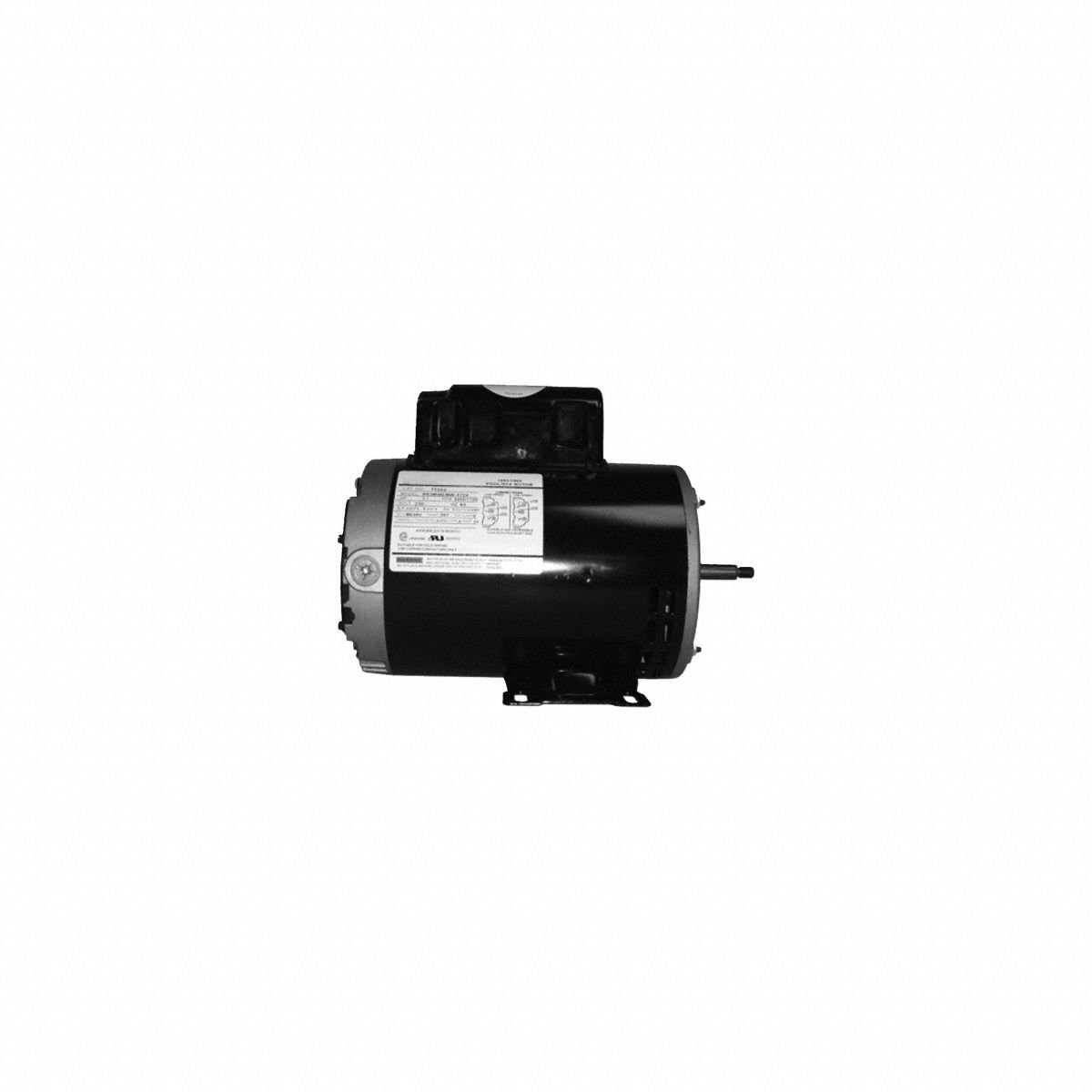

U.S. MOTORS Pool and Spa Pump Motor: Stud, 56Y Frame Size, PSC, Open Drip Proof, 1 1/2 hp/3/16 hp

Specifications & Compliance

Manufacturer #

TT502

Brand

U.S. MOTORS

Mounting Type

Stud

Nameplate Horsepower @ 60 Hz

1-1/2 hp; 3/16 hp

Nameplate RPM @ 60 Hz

1,780 RPM

Frame Size

56Y

Nameplate Voltage @ 60 Hz

230V AC

Full Load Amps @ 60 Hz

8.0/3.0 A

Motor Enclosure

ODP

Motor Thermal Protection

Auto

Nameplate Service Factor @ 60 Hz

1

Output Shaft (Dia x L)

1/2 in 2-3/8 in

Motor Design

Permanent Split Capacitor

Motor Enclosure Type

Open Drip Proof
