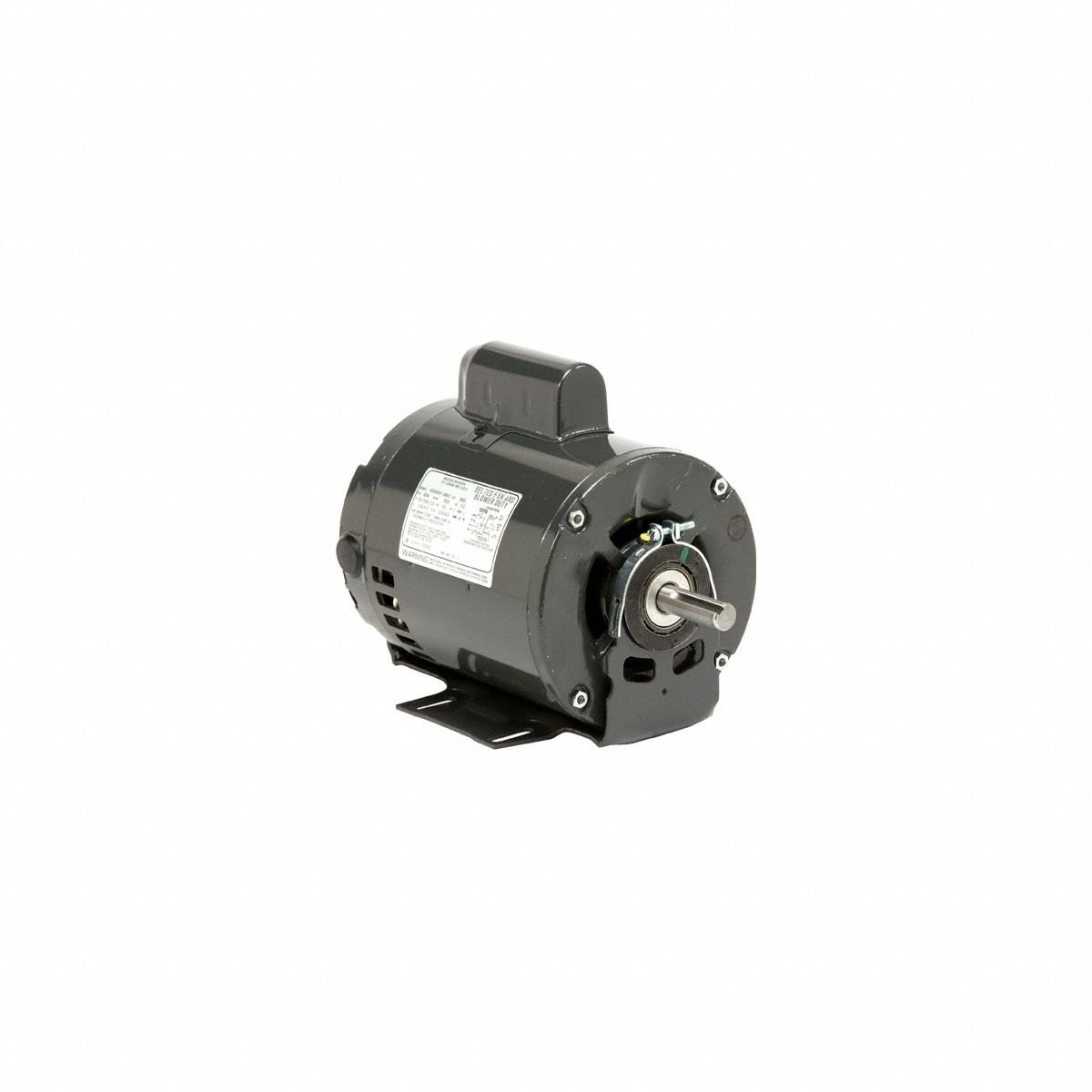

U.S. MOTORS General Purpose Motor: Single Phase, 1 hp, 208-230V AC, 56 Frame Size, 5/8 in x 1 7/8 in

Specifications & Compliance

Manufacturer #

6316

Brand

U.S. MOTORS

Nameplate Horsepower @ 60 Hz

1 hp

Nameplate RPM @ 60 Hz

1,725 RPM

Frame Size

56

Nameplate Voltage @ 60 Hz

208-230V AC

Full Load Amps @ 60 Hz

7.4-7.4/4-4.3 A

Motor Enclosure Type(Abbreviated)

ODP

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

5/8 in x 1-7/8 in

Phase

Single

Frequency

60 Hz

Insulation Class

B

Shaft Diameter

5/8 in

Shaft Length

1-7/8 in

Motor Design

Capacitor-Start

Mounting Type

Cradle Base

Motor Enclosure Type

Open Drip Proof

Motor Shaft Rotation

CW/CCW

Number of Speeds

2
