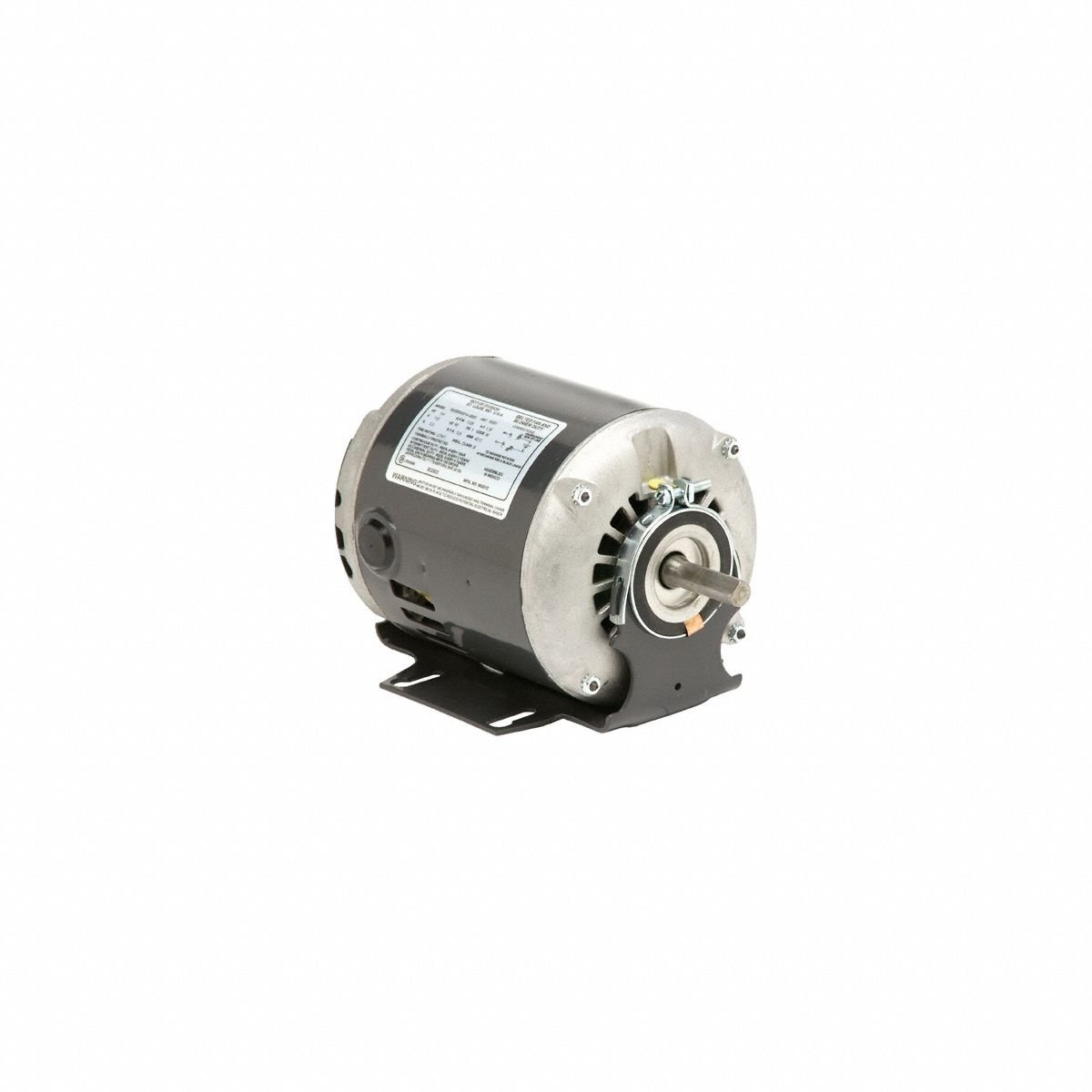

U.S. MOTORS General Purpose Motor: Single Phase, 1/4 hp, 115V AC, 56Z Frame Size, 1/2 in x 1 1/2 in

Specifications & Compliance

Manufacturer #

D14B2NZA9

Brand

U.S. MOTORS

Nameplate Horsepower @ 60 Hz

1/4 hp

Nameplate RPM @ 60 Hz

1,725 RPM

Frame Size

56Z

Nameplate Voltage @ 60 Hz

115V AC

Full Load Amps @ 60 Hz

5.4 A

Motor Enclosure Type(Abbreviated)

ODP

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1

Output Shaft (Dia x L)

1/2 in x 1-1/2 in

Phase

Single

Frequency

60 Hz

Insulation Class

B

Shaft Diameter

1/2 in

Shaft Length

1-1/2 in

Motor Design

Split-Phase

Mounting Type

Cradle Base

Motor Enclosure Type

Open Drip Proof

Motor Shaft Rotation

CW/CCW

Nominal Efficiency

55 %

Number of Speeds

1

Efficiency Rating

Standard Efficiency (IE1)
