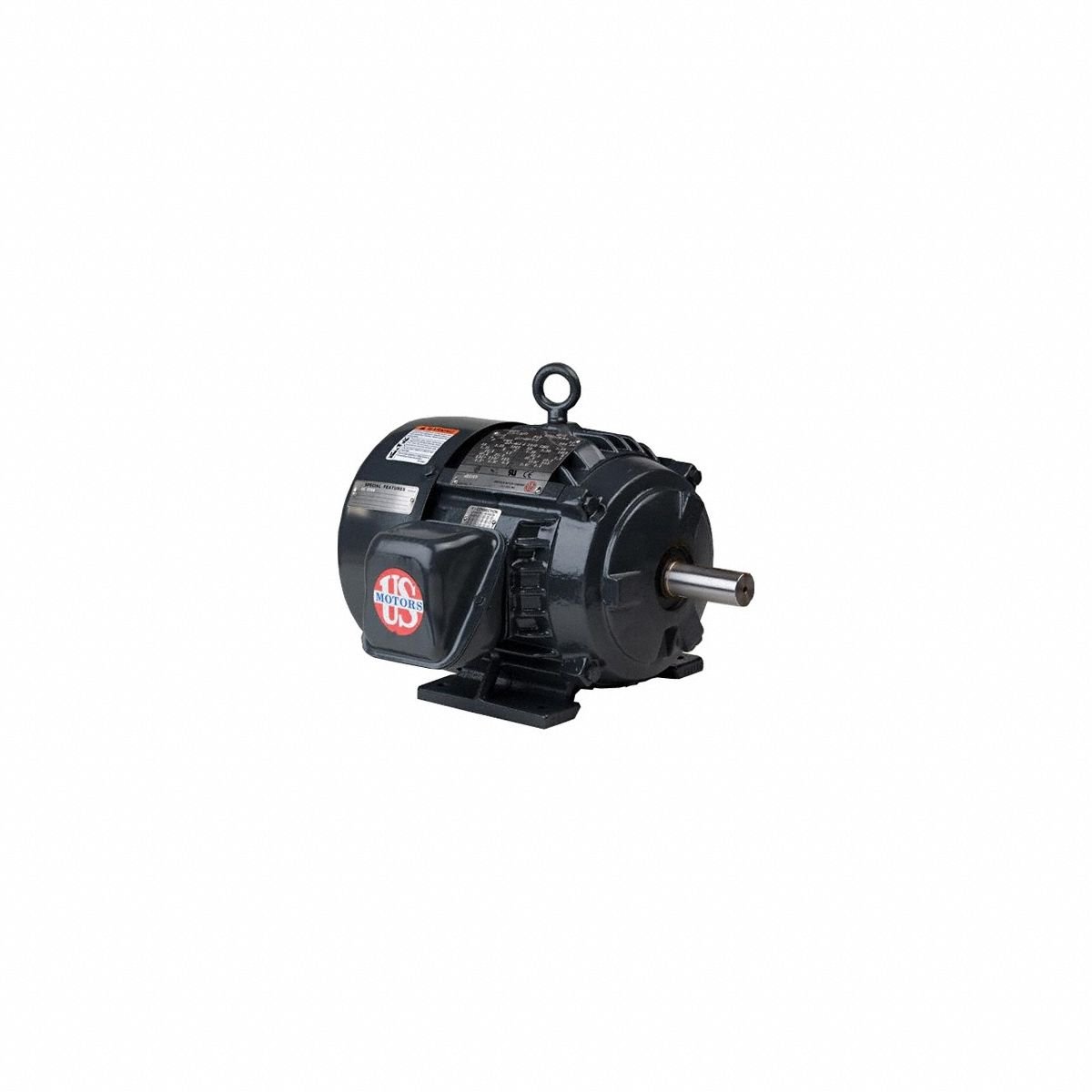

U.S. MOTORS General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 40 hp, 460V AC

Specifications & Compliance

Manufacturer #

A40P3C

Brand

U.S. MOTORS

Nameplate Horsepower @ 60 Hz

40 hp

Nameplate RPM @ 60 Hz

1,190 RPM

Frame Size

404U

Nameplate Voltage @ 60 Hz

460V AC

Full Load Current @ 60 Hz

47.0 A

Motor Enclosure

TEFC

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

2-3/8 in x 7-1/8 in

Frame Family

NEMA 400

Motor Enclosure Type

Totally Enclosed Fan Cooled

Mounting Type

Rigid Base
