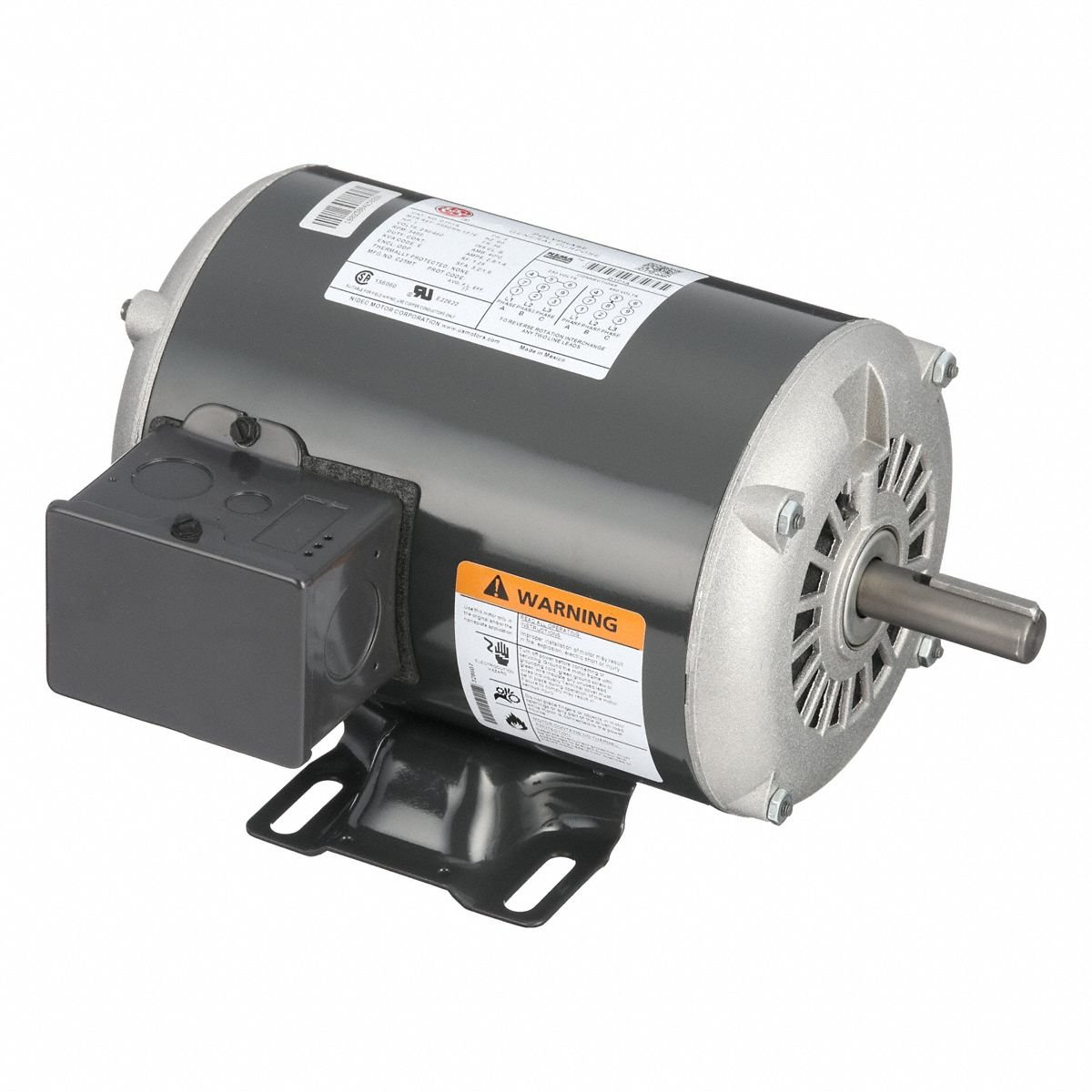

U.S. MOTORS General Purpose Motor: Rigid Base Mount, Open Air Over, 1 hp, 208-230/460V AC, 3,450 RPM

Specifications & Compliance

Manufacturer #

D1P1A

Brand

U.S. MOTORS

Nameplate Horsepower @ 60 Hz

1 hp

Nameplate RPM @ 60 Hz

3,450 RPM

Frame Size

56

Nameplate Voltage @ 60 Hz

208-230/460V AC

Full Load Current @ 60 Hz

2.8-2.8/1.4 A

Motor Enclosure

OAO

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.25

Output Shaft (Dia x L)

5/8 in x 1-7/8 in

Frame Family

NEMA 56

Motor Enclosure Type

Open Air Over

Mounting Type

Rigid Base
