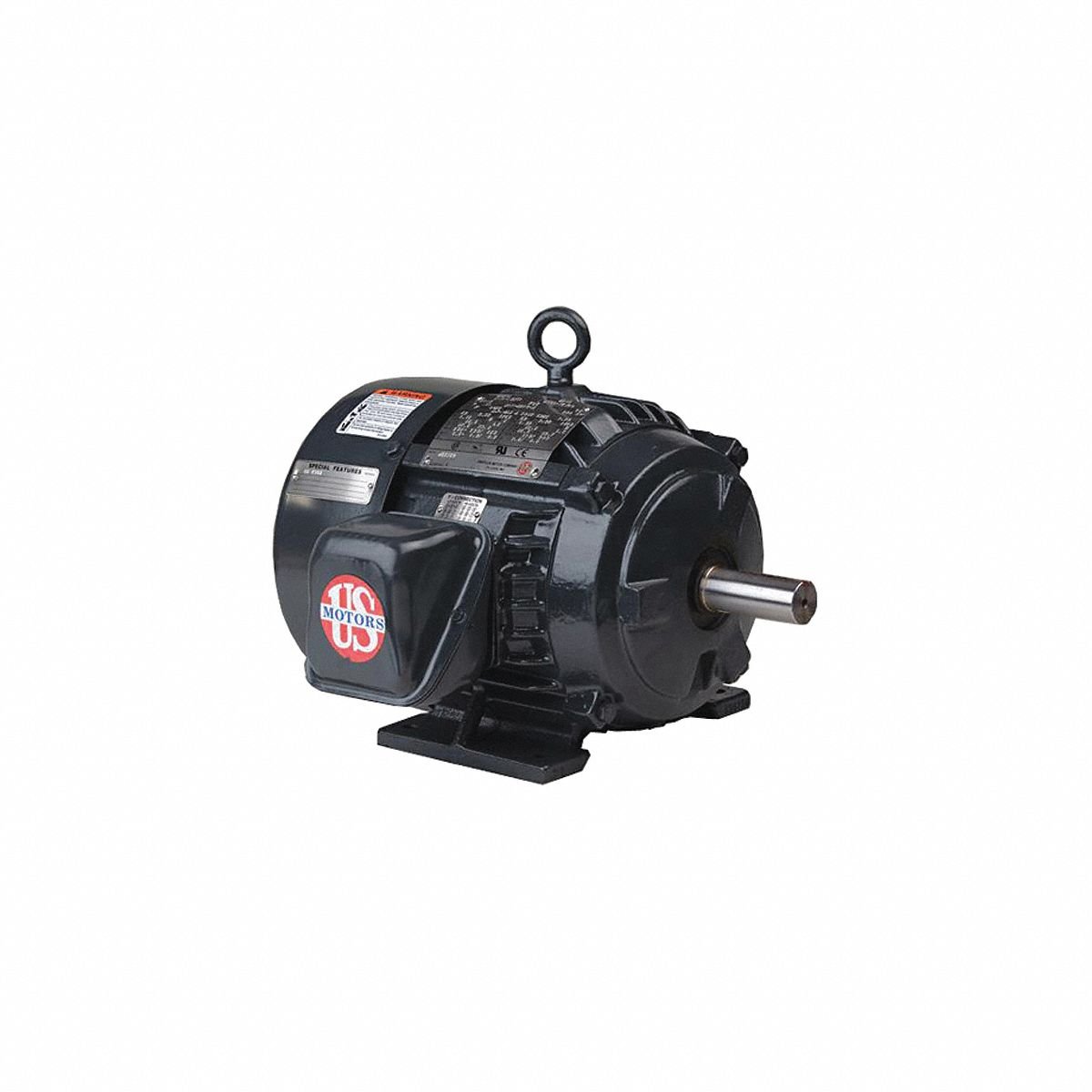

U.S. MOTORS General Purpose Motor: Flange Mount, Totally Enclosed Fan Cooled, 7 1/2 hp, 460V AC

Specifications & Compliance

Manufacturer #

A7P1C

Brand

U.S. MOTORS

Nameplate Horsepower @ 60 Hz

7-1/2 hp

Nameplate RPM @ 60 Hz

3,525 RPM

Frame Size

215

Nameplate Voltage @ 60 Hz

460V AC

Full Load Current @ 60 Hz

0.375 A

Motor Enclosure

TEFC

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

1-1/8 in x 3 in

Frame Family

NEMA 210

Motor Enclosure Type

Totally Enclosed Fan Cooled

Mounting Type

Flange
