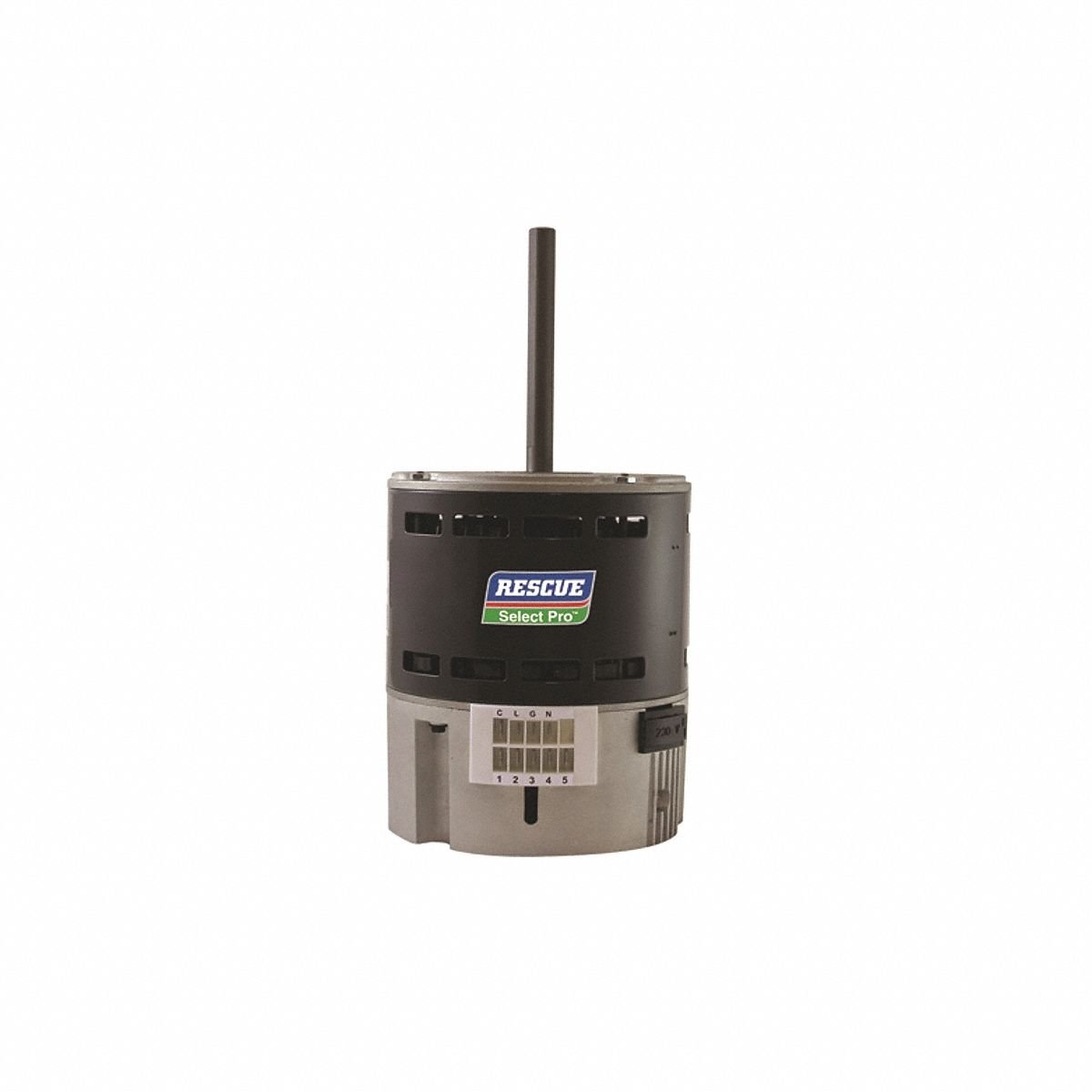

U.S. MOTORS Direct Drive Blower Motor: RESCUE® Select Pro™, 48Y Frame Size, Belly Band, ECM, 1 hp

Specifications & Compliance

Manufacturer #

6653

Brand

U.S. MOTORS

Nameplate Horsepower @ 60 Hz

1 hp

Nameplate RPM @ 60 Hz

1,075 RPM

Frame Size

48Y

Nameplate Voltage @ 60 Hz

115/208-230V AC

Mounting Type

Belly Band

Motor Enclosure

OAO

Motor Thermal Protection

Auto

Nameplate Service Factor @ 60 Hz

1

ECM Motor Type

Constant Torque

Control Connector Configuration

5-Pin

Includes User Interface

No

External Controller Compatible

No

Motor Shaft Rotation

CW/CCW

Series

RESCUE® Select Pro™

Wattage

800 W

Horsepower/Wattage

1 hp800 W
