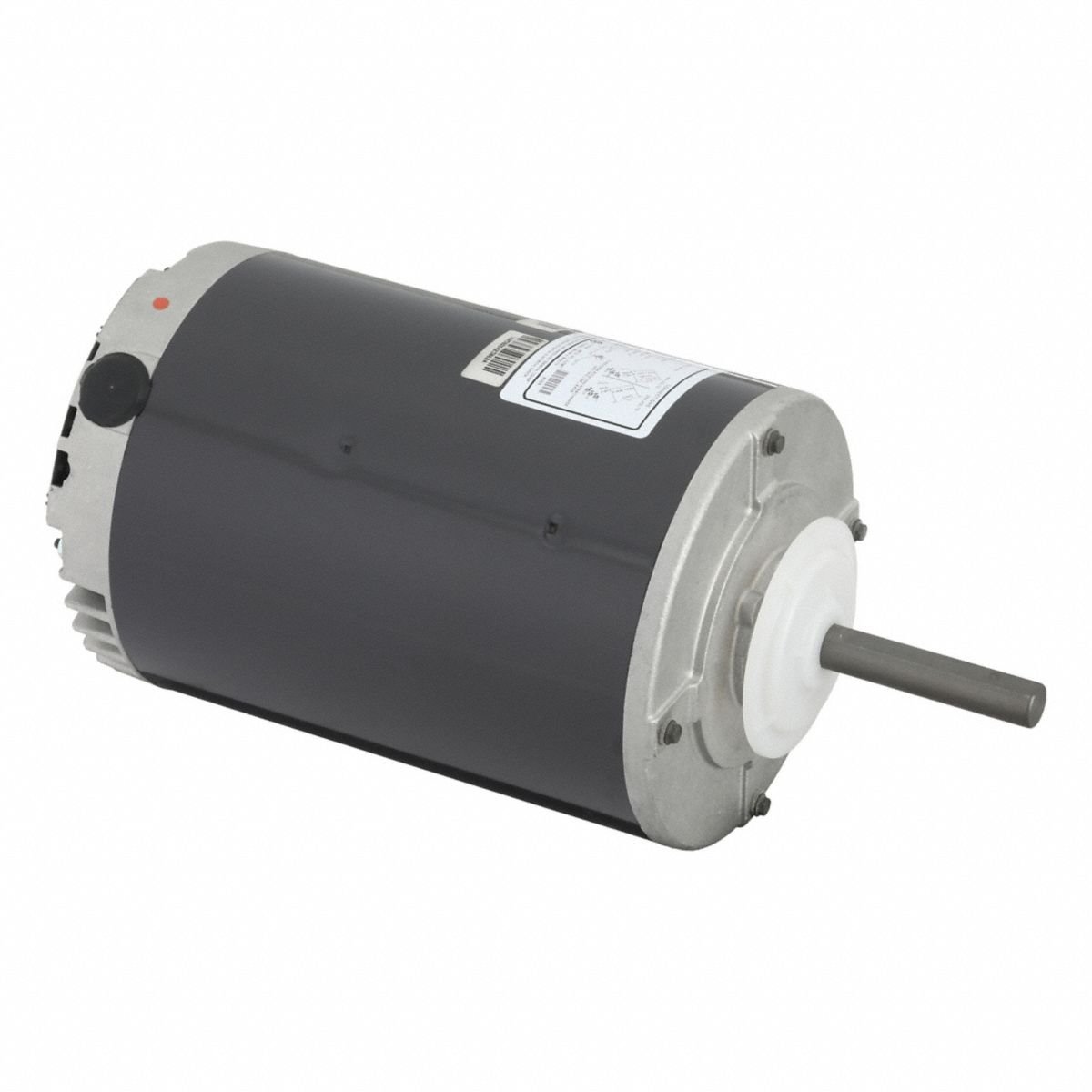

U.S. MOTORS Condenser Fan Motor: Belly Band Mount, Totally Enclosed Air-Over, 1 Speed, Auto

Specifications & Compliance

Manufacturer #

8058

Brand

U.S. MOTORS

Nameplate Horsepower @ 60 Hz

1 hp

Nameplate RPM @ 60 Hz

1,140 RPM

Frame Size

56Y

Nameplate Voltage @ 60 Hz

200-230/460V AC

Full Load Amps @ 60 Hz

3.6/1.8 A

Motor Enclosure

TEAO

Motor Thermal Protection

Auto

Nameplate Service Factor @ 60 Hz

1

Output Shaft (Dia x L)

1/2 in x 5 in

Mounting Type

Belly Band
