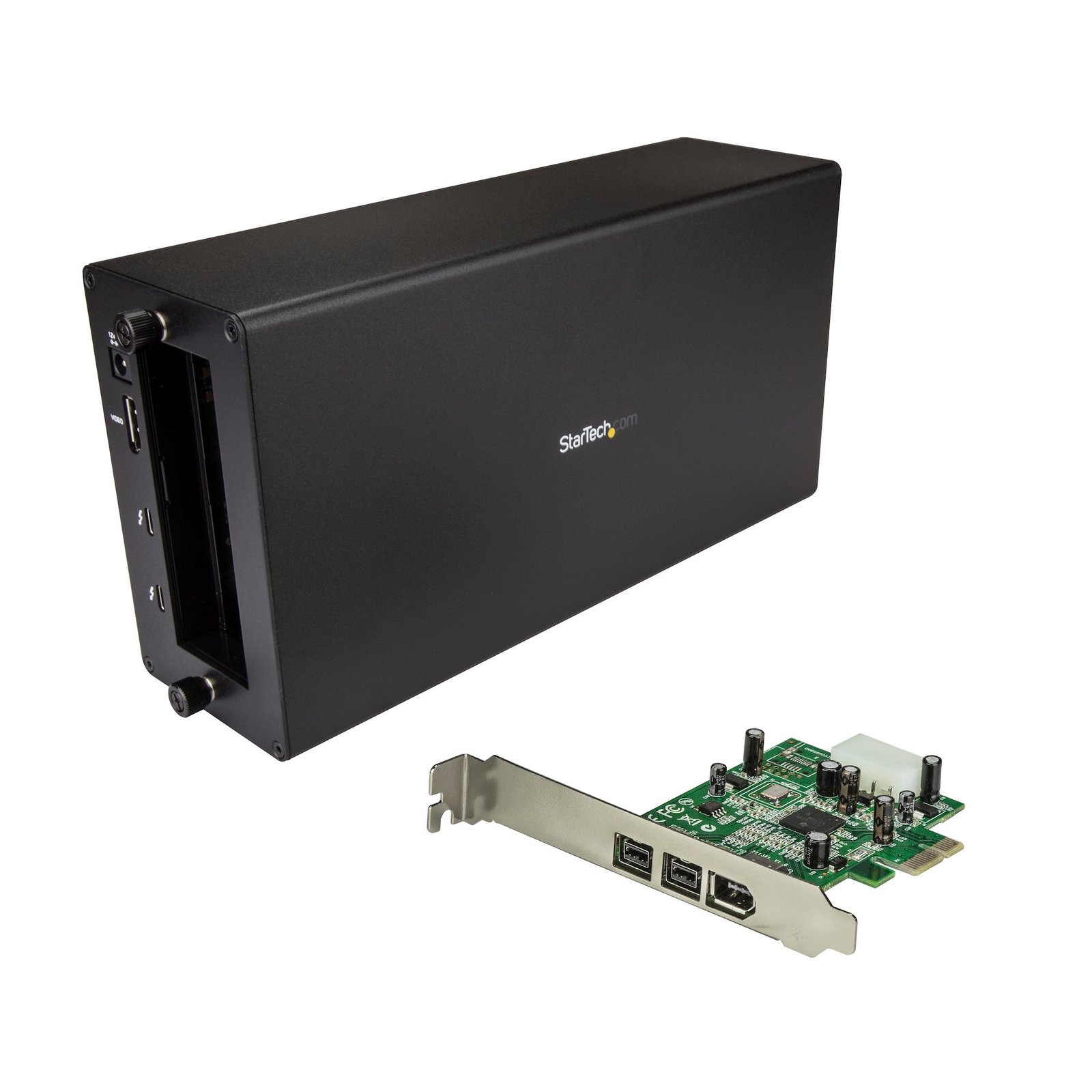

Thunderbolt 3 to FireWire Adapter - Card & Chassis

Thunderbolt 3 to FireWire Adapter - Card & Chassis

$398.99

The Thunderbolt 3 to 1394 FireWire adapter brings your high-powered FireWire peripheral devices to life through your Thunderbolt 3 computer

SKU: BNDTB1394B3 Category:

Specifications & Compliance

UPC
065030879095
Brand
StarTech.com
Shipping (Package) Weight
7.4 lb [3.3 kg]
Weight of Product
3.7 lb [1.7 kg]
Product Length
11.0 in [28.0 cm]
Product Width
5.6 in [14.2 cm]
Product Height
3.2 in [82.0 mm]
Package Depth
11.4 in [29 cm]
Package Width
14.2 in [36 cm]
Package Height
5.7 in [14.5 cm]
Color
Black
Cable Length
19.7 in [50 cm]
Warranty
2 Years
Connector 1
PCI Express x1
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2
FireWire 400 (6-Pin, 400Mbps, Bus Power)
Connector 2 (Quantity)
1
Operating Temperature
Chassis: 5°C to 35°C (41°F to 95°F)<br /> PCIe Card: 0°C to 70°C (32°F to 158°F)
Storage Temperature
Chassis: -20°C to 50°C (-4°F to 122°F)<br /> PCIe Card: -54°C to 150°C (-65°F to 302°F)
Humidity
Chassis: 20 ~ 80%RH
Material
Aluminum and Steel
Maximum Data Transfer Rate
40Gbps (Thunderbolt 3)<br> 800Mbps (Firewire)<br> 400Mbps (Firewire)
Industry Standards
Thunderbolt 3, IEEE-1394/1394A/1394B<br> OHCI<br> PCI Express 1.1
Power Source
AC Adapter Included
Chipset ID
Intel - Alpine Ridge DSL6540 (Thunderbolt Chassis)<br> Texas Instruments - XIO2213B (Firewire card)
Special Notes
The expansion chassis does not support video cards., This expansion chassis does not provide full power delivery but will provide 15W of power, resulting in a slow charge to some laptops, such as the MacBook Pro. When the dock is connected to your host laptop, a charging icon may appear on your laptop's screen. This is only sufficient enough to charge your laptop in sleep state, and charging will require an extended time period., 5K support can only be achieved using a Thunderbolt 3 5K monitor. DisplayPort 5K monitors will not work with this expansion chassis., A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K)., Certain monitors may be limited to 4K at 30Hz when connecting through DisplayPort. These monitors include the following models: Dell P2715Q, Viewsonic VX2475Smhl-4K, Philips 288P6LJEB, LG 31MU97C-B, Asus PB287Q (these models will need to be set to 4K at 30Hz)., When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter might be required depending on the input of your display., Secondary Thunderbolt 3 port can also be used to connect USB 3.1 (10Gbps) USB-Type C devices, such as USB 3.1 Hubs. Backwards compatible with USB 3.0 (USB 3.1 Gen 1), and USB 2.0.
Input Voltage
100 - 240 AC
Output Voltage
12V DC
Connector 3
FireWire 800 (9-Pin, 800Mbps, Bus Power)
Connector 3 (Quantity)
2
Power Consumption
65
Number of Ports
6
Interface
Thunderbolt, FireWire 800 (1394b), FireWire 400 (1394a)
Bus Type
Thunderbolt 3, PCI Express
Input Current
2A
Output Current
5.417
Type and Rate
Thunderbolt 3 (40Gbps)
System and Cable Requirements
Thunderbolt 3 equipped computer with a Thunderbolt 3 port.
Plug Type
N
Center Tip Polarity
Positive
Connector 4
USB-C (Thunderbolt 40Gbps)
Connector 4 (Quantity)
2
Card Type
Standard Profile
Connector 5
DisplayPort
Connector 5 (Quantity)
1
Connector 6
LP4 / Molex Power (4-Pin, 5V / 12V)
Connector 6 (Quantity)
1
Fans Included? Yes/No
Yes
Fan Bearing Type
Sleeve Bearing
Fans
1 - 92 mm
Connector 7
PCI Express x16
Connector 7 (Quantity)
1
Noise Level
24.55 dB
Air Flow Rate
14.06 CFM
Bandwidth
3.94 GB/s (x4 PCIe 3.0 )

Questions & Answers

My DisplayPort displays are not working at 60Hz with this adapter. How do I resolve this issue?
To use a Thunderbolt 3 adapter to output to a display at 60Hz, your monitor must support the refresh rate and you need to set the monitor to work at 60Hz. By default, most monitors are set to DP1.1, which will not work with this Thunderbolt 3 device when you use a display at 60Hz. In most cases, you need to set your monitor's DisplayPort settings to DP1.2. To resolve this issue, use the buttons on your monitor to change the DisplayPort settings to DP1.2. For more information about changing your monitor settings, refer to the website of the manufacturer of your monitor.

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
