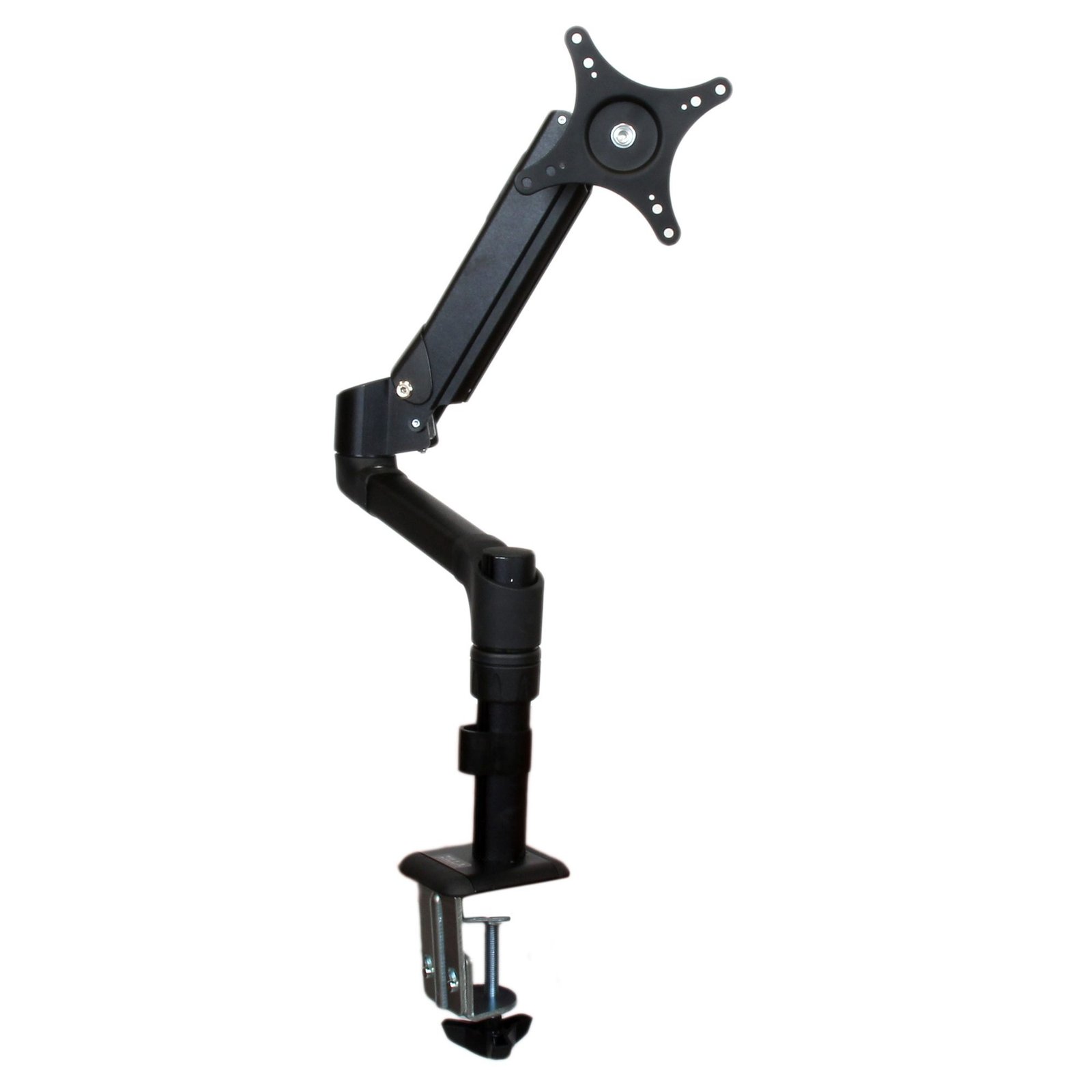

Single Desk-Mount Monitor Arm - Full Motion Articulating - Steel

Specifications & Compliance

Manufacturer #

ARMPIVOTE

UPC

065030858595

Brand

StarTech.com

Included in Package

1 - Gas Spring Arm, 1 - Extension Arm, 1 - Support Pole, 1 - Clamp, 1 - Cover and Bolt, 5 - Cable Covers, 4 - Spacers, 4 - M4x12mm Screws, 4 - M4x25mm Screws, 1 - Cable Clip, 2 - Plastic Gasket Cushions, 1 - 4mm Allen Wrench, 1 - 6mm Allen Wrench, 4 - Thumb screws, 5 - Cable ties, 1 - Instruction Manual

Shipping (Package) Weight

6.0 lb [2.7 kg]

Weight of Product

4.9 lb [2.2 kg]

Product Length

22.0 in [56.0 cm]

Product Width

3.0 in [75.0 mm]

Product Height

20.7 in [52.7 cm]

Package Depth

8.4 in [21.3 cm]

Package Width

18.8 in [47.7 cm]

Package Height

5.2 in [13.2 cm]

Color

Black

Warranty

2 Years

Package Quantity

1

Material

Steel and Plastic

Special Notes

This mount supports monitors up to 34”, including flat screen, curved and ultrawide displays, with a max weight of 8 lb. (3.6 kg). If you choose to use an ultrawide display in portrait position, the mount supports ultrawide displays with a max width of 20" (50.8 cm).

Number of Displays

1

Mounting Options

Desk & Grommet Clamp

Wallmountable

No

Maximum Display Size

34"

Weight Capacity (Per Display)

8.0 lb [3.6 kg]

VESA Hole Pattern(s)

75x75 mm, 100x100 mm

Height Adjustment

Yes

Display Tilt

+90° / - 90°

Display Rotation

360°

Swivel / Pivot

360° around the support post<br /> 360° at the elbow

Articulating

Yes

Fits Curved Display

Yes

Maximum Arm Extension

22.0 in [56 cm]

Fits UltraWide Displays

Yes

Mounting Surface Thickness

Desk Clamp: Table Thickness 0.39 - 2.95 in. (10 - 75 mm)<br /> Grommet Mount Hole Size: 1.96 - 2.75 in. (50 - 70 mm)

Display Swivel

+90° / - 90°
