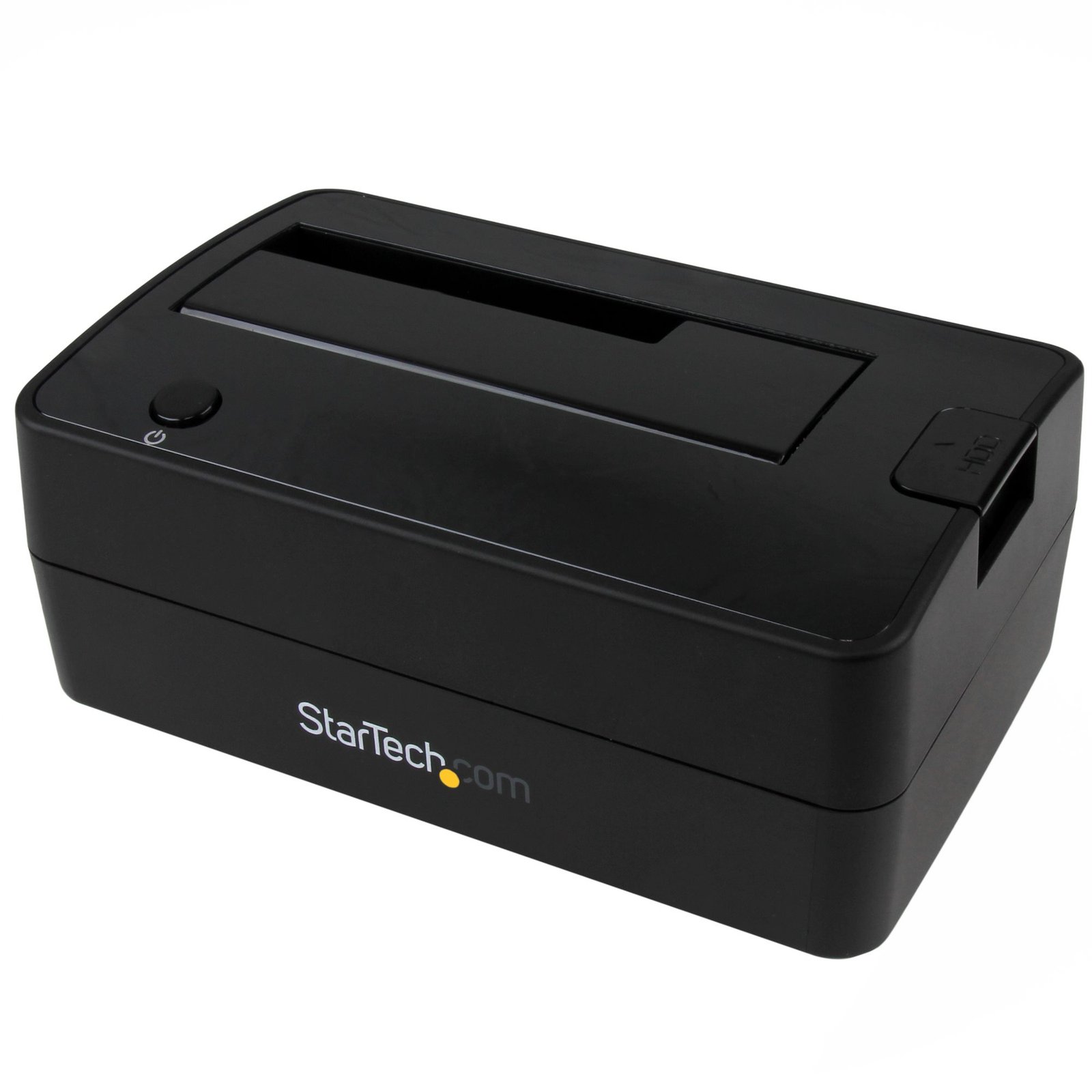

Single Bay USB 3.1 to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-Loading Hard Drive Bay

Questions & Answers

The data on my drive is not accessible. How do I fix this?
The drive may be damaged. Test with a known-working drive, or test the drive directly to a PC. The operating system on the computer may not support reading and writing to the file system on the docked hard drive or SSD. Remember, Windows cannot read Mac or Linux file systems. Also, macOS can read but not write to NTFS drives. If the drives came from a RAID (Redundant Array of Independent Disks), they would not be accessible in our docking stations. If the drive uses 4Kn sectors, check the technical specifications of the docking station, and ensure it can read 4Kn drives.

Everything is hooked up, but nothing is working. What do I do?
When you troubleshoot issues with a hard drive dock or duplicator, there are some quick tests that you can complete to rule out potential problems. You can test to make sure that the following components are working correctly and are not the source of the issue: IDE, SATA, and eSATA cables Hard drives Hard drive dock or duplicator To test your setup components, try the following: Use the cables, hard drives, and hard drive dock or duplicator in another setup to see if the problem is with the components or the setup. Use a different cable, hard drive, and hard drive dock or duplicator in your setup to see if the problem persists. Ideally, you should test a component that you know works in another setup. When you test the hard drive and hard drive dock or duplicator, it is recommended that you do the following: Note: For a hard drive duplicator you may need to switch the device to PC mode (if available). To check Disk Management, press the Windows key + R , type diskmgmt.msc , and press Enter . Check to see if your hard drive is listed. Do one of the following: If the hard drive is listed with unallocated space, the hard drive needs to be reformatted. Right-click unallocated and click New Simple Volume. Follow the on-screen instructions to complete the reformatting.​ Note: Formatting a hard drive erases all of the data on it. Make sure that you back up all of your data before you reformat the hard drive. If the hard drive is listed as healthy but does not have a drive letter, for example, C:, right-click healthy and click Change Drive Letter and Paths . Click Add , assign a drive letter, and click OK . Note: A formatted hard drive will not show up in Computer or My Computer until it has a drive letter assigned to it.

Why are my hard drives entering an idle state using this docking station?
This docking station allows the hard drive to enforce its own power state, as opposed to enforcing a power state that keeps the hard drive active at all times. Since most newer hard drives have low-power energy conservation modes, this will cause the hard drive to enter an idle state if it is not used for a certain amount of time.

What do I do if I am not achieving USB 3.1 speeds with my USB 3.1 device?
If your setup components support USB 3.1 but you are experiencing slower transfer speeds than you expected, consider the following: A USB host connection with multiple USB 3.1 ports might not be able to support 10Gbps on each port simultaneously. The type of port on a device does not determine whether the device is capable of USB 3.1 speeds. A USB-C port might not support USB 3.1 speeds, while USB-A and USB-B ports might support USB 3.1 speeds. Any other devices that you include in your setup, such as an older hard drive in a USB 3.1 enclosure, might create a point of congestion and slow down transfer speeds. To confirm the functionality of your USB host connection, its ports, and any other devices in your setup, refer to the information provided by the manufacturer. Note : USB 3.1 is also known as USB 3.1 Gen 2 (10Gbps). Devices that support USB 3.1 should have the USB 3.1 symbol on them. If the USB 3.1 symbol does not appear on your USB source or device, refer to the information provided by the manufacturer to confirm whether the USB source or device support USB 3.1.

When should I upgrade my device's firmware?
You should not upgrade your device's firmware if you do not have any issues with the functionality of your device. The only time you should consider an upgrade is if you are experiencing a problem with the device, and you have confirmed that the firmware addresses this problem. You can confirm this is the case by reviewing the documentation included with the firmware or by consulting with our Technical Support team. Incorrectly upgrading firmware can result in diminished performance so it is best to contact StarTech.com if you would like to perform this operation.

How do I confirm that Windows detects my USB device?
To confirm that Windows detects your USB device, complete the following: Press the Windows key+ R , type devmgmt.msc , and press Enter . In Device Manager , under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it. For example, a USB controller card would be under Universal Serial Bus controllers . Your USB device is listed according to the name of the chipset. To determine the name of the chipset of your USB device, navigate to www.StarTech.com and look on the Technical Specifications tab for your product.

How can I check if my USB device is properly detected by Mac OS?
To confirm that the Mac OS detects your USB device, complete the following: Click the Apple icon. Click About This Mac . Click More Info or System Report . Under the appropriate heading, confirm that your USB device is listed and that there isn't an error. For example, a network card would be under Ethernet Cards . You may need to refresh the System Information page after you plug in your device. To do so, press Command + R with the System Information page open. Your USB device is listed according to the name of the chipset. To determine the name of the chipset of your USB device, navigate to www.StarTech.com and look on the Technical Specifications tab for your product.

Do USB to SATA or NVMe adapters support TRIM on Windows, macOS, or Linux?
TRIM is supported on Windows only for select USB to SATA or USB to NVMe adapters. TRIM is not supported on macOS or Linux. Explanation: TRIM support for USB storage adapters is limited and depends on both the operating system and the specific product. On Windows, only select adapters support TRIM, and this capability is explicitly listed in the product’s Technical Specifications under the Performance section as “TRIM Support – Yes.” If this entry is not present, the product does not support TRIM. On macOS and Linux, TRIM is not supported for USB storage adapters due to operating system limitations in standard configurations. While some third‑party utilities on macOS or manual system modifications on Linux may enable TRIM in certain scenarios, these configurations are not supported. This limitation applies specifically to USB storage adapters and does not apply to SATA controller cards.

Will my hard drive be compatible with a StarTech.com docking station or duplicator?
A hard drive will work with a StarTech.com docking station or duplicator only if the device supports the drive’s interface, form factor, capacity, and power requirements. Explanation: To confirm compatibility with a StarTech.com docking station or duplicator, review the product’s technical specifications and verify the following: Interface compatibility: The hard drive must match the supported interface (for example, SATA, IDE, or M.2). For M.2 drives, you must also confirm the protocol (SATA vs. NVMe) and keying (B-key, M-key, or B+M), as not all M.2 drives are supported by all devices. Form factor support: The physical size of the hard drive must match the device (for example, 2.5-inch or 3.5-inch drives). Capacity support: Specifications may list a “tested capacity.” Many modern devices can support larger drives, but compatibility beyond the tested capacity is not guaranteed and depends on the device chipset and firmware. Power requirements: The power output of the docking station or duplicator must meet or exceed the drive’s requirements. This is typically sufficient for single-drive docks from reputable brands, but it becomes critical for dual-bay or multi-bay devices, high-capacity drives, or older models. When using multiple drives, the combined power draw must not exceed the device’s power supply. Compatibility is ultimately determined by the hardware design and controller limitations of the specific StarTech.com docking station or duplicator, so reviewing official specifications is required to ensure proper operation.

What are the capabilities of USB 3.2 and USB4, and how do they differ from earlier USB standards?
USB 3.2 and USB4 are newer USB standards that provide higher data transfer speeds, improved bandwidth management, and expanded compatibility with modern devices and display technologies. USB 3.2 supports transfer speeds up to 20Gbps, while USB4 supports transfer speeds up to 40Gbps and adds advanced features such as Thunderbolt 3 compatibility on supported devices. Explanation: USB (Universal Serial Bus) standards have evolved over time to support faster data transfer speeds, increased power delivery, and improved compatibility across computers, storage devices, docking stations, displays, and peripherals. The USB naming convention has also changed over multiple revisions, which can cause confusion between older and current terminology. The following table summarizes common USB standards and updated naming conventions: Current USB Name Previous Naming Maximum Transfer Speed USB 2.0 USB 2.0 480Mbps USB 3.2 Gen 1 USB 3.0 / USB 3.1 Gen 1 5Gbps USB 3.2 Gen 2 USB 3.1 / USB 3.1 Gen 2 10Gbps USB 3.2 Gen 2x2 USB 3.2 Gen 2x2 20Gbps USB4 USB4 20Gbps Up to 20Gbps USB4 USB4 40Gbps Up to 40Gbps USB4 Version 2.0 Up to 80 Gbps (or asymmetric 120 Gbps) USB4 version 2.0 devices can support even higher bandwidths up to 80Gbps or 120Gbps in specific asymmetric configurations, depending on device support and certification. USB transfer performance depends on all connected components supporting the same standard, including: Host computer or controller USB cable Connected device or peripheral Adapters or docking stations in the connection path USB connector types and USB standards are separate specifications. For example: USB-C is a connector type. USB 3.2 and USB4 are performance and protocol standards. A USB-C connector can support different USB standards depending on the device design. USB4 introduces additional capabilities beyond raw transfer speed, including: Dynamic bandwidth allocation for video and data Support for multiple display protocols Compatibility with Thunderbolt 3 devices on supported hardware Improved tunneling for PCIe and DisplayPort traffic USB standards are generally backward compatible, but some limitations apply: USB-C ports require adapters to connect to USB-A or USB-B devices. USB 3.x and USB4 devices connected to older USB ports operate at the lower supported speed. Devices requiring higher power delivery or bandwidth may not function correctly on older USB standards. USB-B SuperSpeed connectors are not physically compatible with USB 2.0 USB-B ports. For maximum performance and compatibility, verify that the host device, cable, and peripheral all support the same USB standard and required feature set.

What is required to transfer data at USB 10Gbps speeds?
To achieve USB 10Gbps data transfer speeds, all components in the connection must support USB 10Gbps performance, including the host port, USB cable, connected device, and any internal subcomponents. Explanation: USB 10Gbps performance requires end-to-end support across the entire connection path, including: The USB host port on the computer or docking station The USB cable The connected USB device Any internal components that affect data throughput, such as storage drives inside a hard drive docking station USB 10Gbps is the current USB-IF naming convention for the specification previously called USB 3.1 Gen 2 and USB 3.2 Gen 2x1. If any component in the connection only supports lower USB performance levels, the entire connection will operate at the maximum speed supported by the slowest component. To confirm compatibility, check the technical specifications for the USB host port, cable, and connected device. Some devices may display USB SuperSpeed 10Gbps branding or equivalent USB 10Gbps markings.

Does the included USB cable support USB 10Gbps data transfer speeds?
Yes. The included USB cable has been tested and verified to support USB 10Gbps data transfer speeds. Explanation: The included USB cable is validated to operate at USB 10Gbps performance levels when connected to compatible USB host ports and devices. USB 10Gbps is the current USB-IF naming convention for the specification previously referred to as USB 3.1 Gen 2 and USB 3.2 Gen 2x1. Actual transfer speeds depend on the capabilities of the connected host device, USB peripherals, and the overall system configuration.

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.

How do I initialize a brand new hard drive in Windows or Mac OS?
Windows 10 Before you can access a new or formatted drive in your operating system, you need to initialize it first and then create a partition on the drive. A partition defines an area of the drive to use for storing data. The partition uses a file system (for example, ex-FAT, NTFS, and so on). Initialize a drive Note: You typically only need to initialize a drive if the drive is new. If you cannot find an uninitialized drive in Disk Management, skip the following steps and try to partition your device. Press the Windows key + R , type compmgmt.msc , and click Run to open Computer Management . Navigate to Disk Management . When prompted to, initialize your disk(s). If you are running Windows ® 7 or later and are using a drive larger than 2TB, initialize the disk(s) with GPT. If you are running an earlier version of Windows, initialize the disk(s) with MBR. For more information, visit the following FAQ: https://www.startech.com/en-us/support/faqs/technical?topic=harddrives#mbr-vs-gpt . Click OK . Create a partition in a drive Note: The following steps create an NTFS partition that uses the entire drive space. To use a different file system, select a different option in step 6. Right-click Unallocated or RAW volume , and select New Simple Volume . In the New Partition Wizard , click Next . Select Primary partition . Leave the partition size set to default , and click Next . Assign a drive letter or leave it set to the default, and click Next . Enter the following settings to format the partition: In the File System field, enter NTFS . Set the Allocation unit size to Default . In the Volume label field, enter < your name/reference >. Select the Perform a quick format check box. Clear the Enable file and folder compression check box. Click Next > Finish . The new drive should appear in Windows Explorer. Mac OS Before you can access a new or formatted drive in your operating system, you need to initialize it first and then create a partition on the drive. A partition defines an area of the drive to use for storing data. The partition uses a file system (for example, HFS+, ex-FAT, NTFS, and so on). Initialize a drive Mac OSX detects a drive that needs to be initialized and automatically prompts you to initialize the drive. If you are prompted to initialize the drive, click Initialize . If you are not prompted to initialize the drive and you cannot find the drive in Finder , you will need to create a partition on the drive. Create a partition on a drive Note: The following steps create an HFS+ (Mac OS Extended (Journaled)) partition that uses the entire drive space. To create a partition on a new drive, complete the following: Open Finder . Navigate to Applications and click Utilities . Open Disk Utility . Select the new drive and click the Partition tab. Click Options and verify that it is set to GUID Partition Table . Enter a name for the partition. Click Partition . The drive should now be accessible in Finder. For products related to this article, click here .
