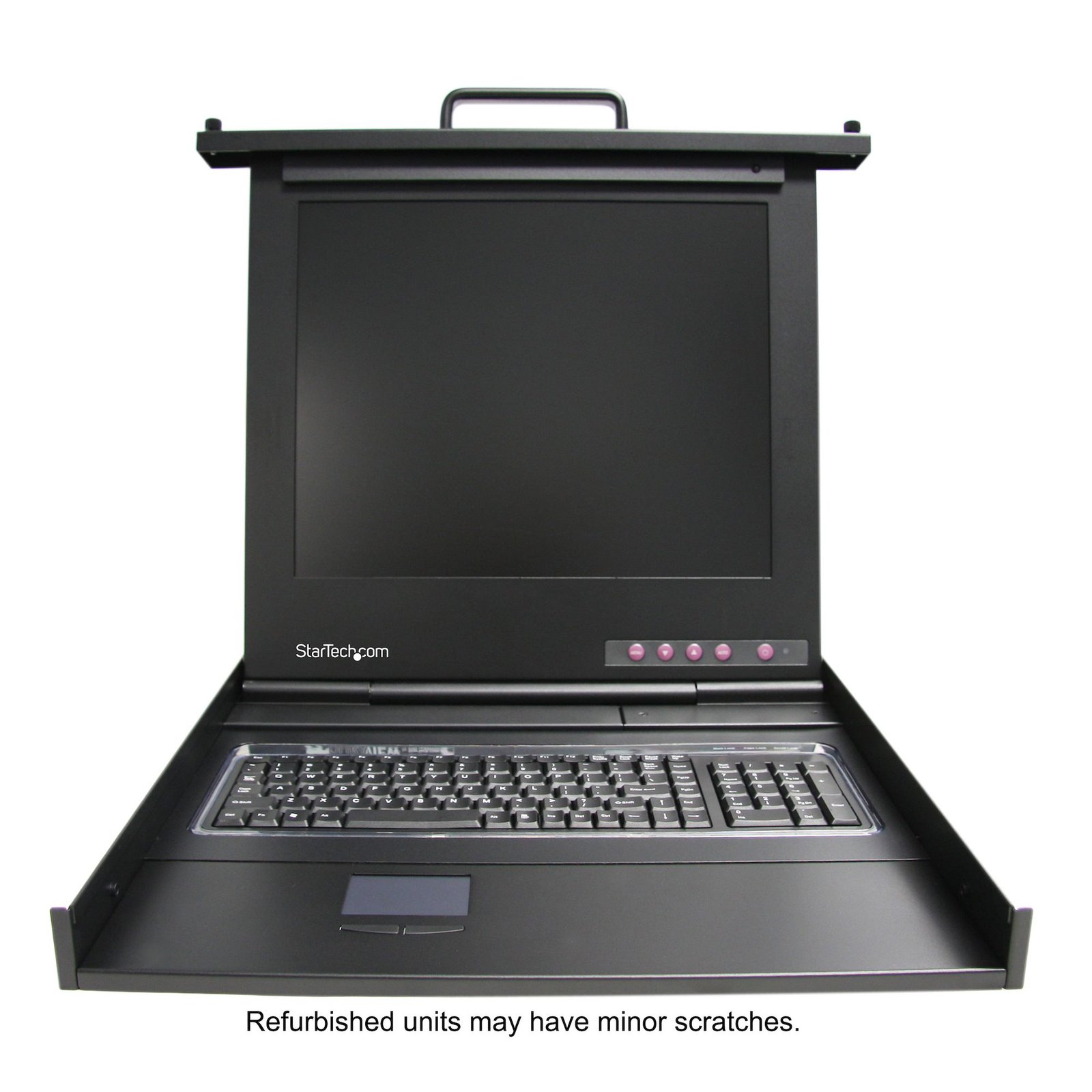

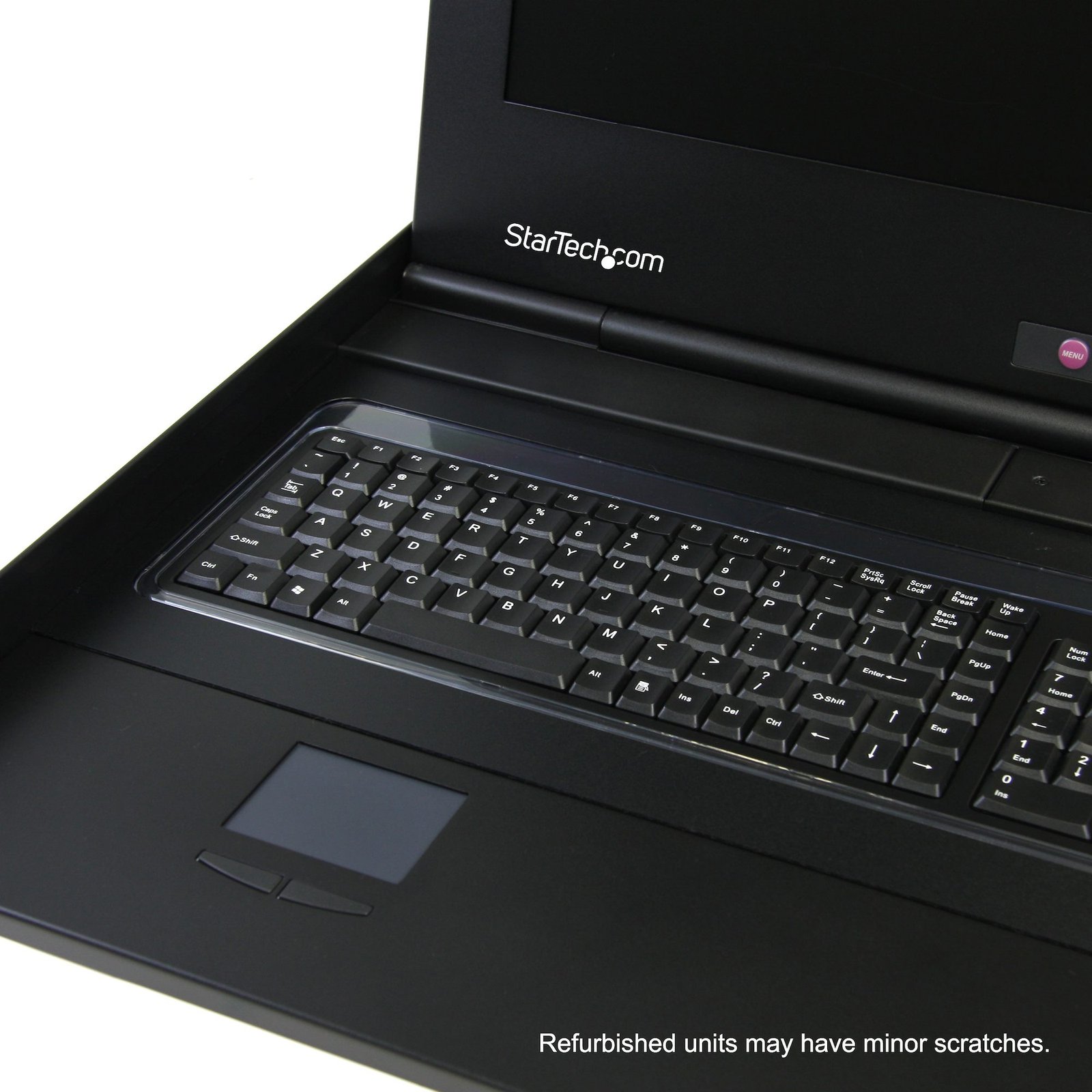

Refurbished 1U 17" Rackmount LCD Console – USB – Value Series
Refurbished 1U 17" Rackmount LCD Console – USB – Value Series - Image 2
Refurbished 1U 17" Rackmount LCD Console – USB – Value Series - Image 3
Refurbished 1U 17" Rackmount LCD Console – USB – Value Series - Image 4

Refurbished 1U 17" Rackmount LCD Console – USB – Value Series

$467.99

Centralized control of a server or a USB KVM switch with this 1U rack-mountable LCD console

SKU: RKCONV1701R Category:

Specifications & Compliance

UPC
065030842525
Brand
StarTech.com
Included in Package
1 - 1U LCD Rack Console Drawer, 1 - Mounting Rails - Set, 1 - Console Cable Kit, 1 - Package of 6 screws, 1 - Power Cord, 1 - Power Adapter, 1 - Manual on CD
Shipping (Package) Weight
39.5 lb [17.9 kg]
Weight of Product
22.9 lb [10.4 kg]
Product Length
20.0 in [50.9 cm]
Product Width
18.8 in [47.8 cm]
Product Height
1.7 in [43.7 mm]
Package Depth
26.8 in [68 cm]
Package Width
22.0 in [56 cm]
Package Height
9.5 in [24.2 cm]
Color
Black
Warranty
Refurbished 90 Days
Operating Temperature
0 ~ 50 °C / 32 ~ 122 °F
Storage Temperature
-20 ~ 60 °C / -4 ~ 140 °F
Humidity
90% RH
Material
Heavy Duty Steel
Power Source
AC Adapter Included
Input Voltage
110V-240V AC
Output Voltage
12V DC
MTBF
60,000 Hours
Output Current
4.16
Host Connector 1
VGA
Host Connector 1 (Quantity)
1
Audio
No
Plug Type
N
Center Tip Polarity
Positive
Host Connector 2
USB-A (480Mbps, 2.5W)
Host Connector 2 (Quantity)
1
Maximum Analog Resolutions
1280x1024 @ 60Hz
Rack-Mountable
Yes
U Height
1U
Number of KVM Ports
1
IP Control
No
Supported Platforms
USB
PC Video Type
VGA
Number of Monitors Supported
1
On-Screen Display
Yes
Maximum Mounting Depth
31.9 in [80.9 cm]
Minimum Mounting Depth
20.0 in [50.8 cm]
Display Size
17"

Questions & Answers

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
