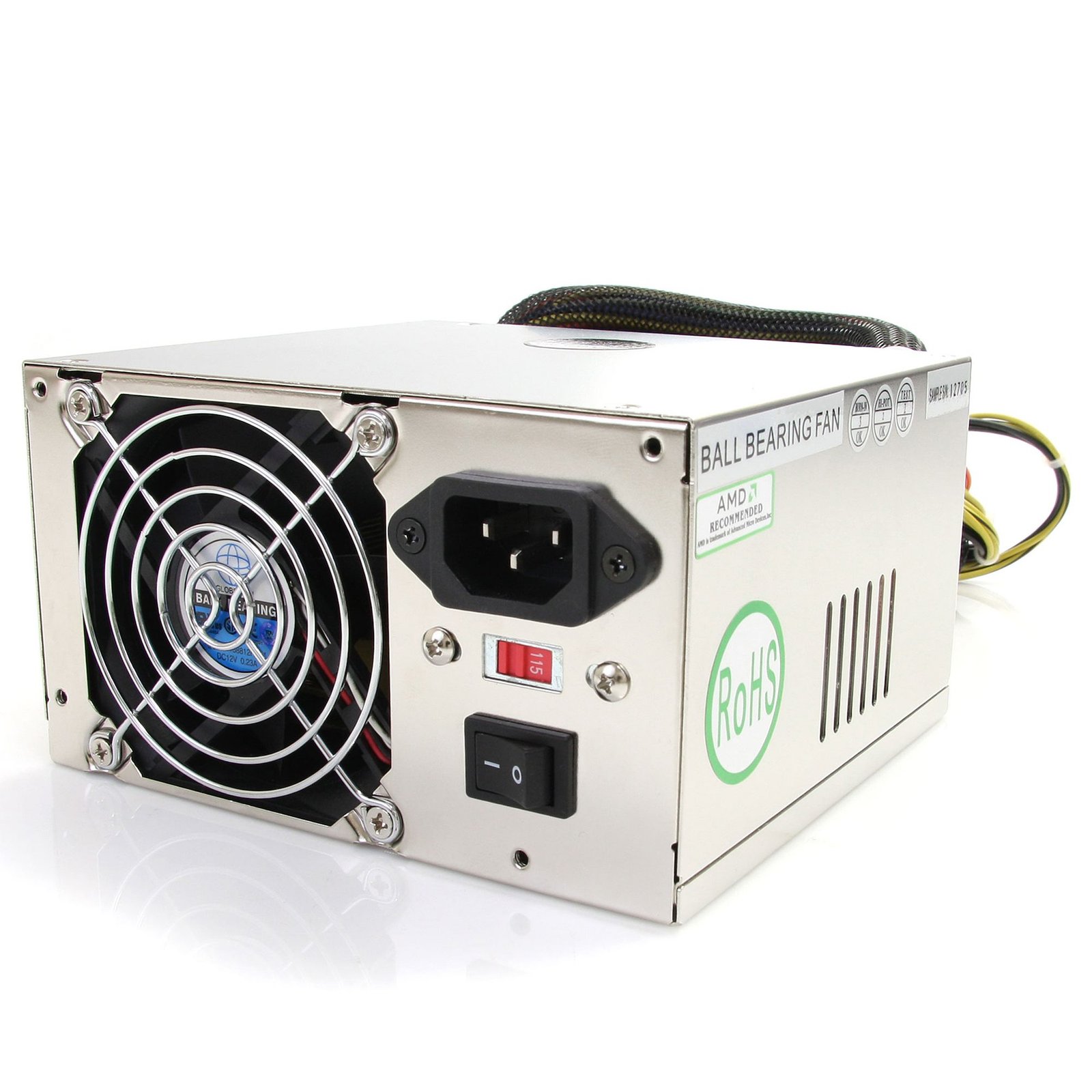

Professional 500W ATX EPS12V 2.92 Computer Power Supply w/ Two PCIe

Specifications & Compliance

UPC

065030840460

Brand

StarTech.com

Included in Package

1 - 500W Professional ATX Power Supply, 1 - 6ft North American PC Power Cord, 1 - Instruction Manual

Shipping (Package) Weight

4.9 lb [2.2 kg]

Weight of Product

4.0 lb [1.8 kg]

Product Length

5.5 in [14 cm]

Product Width

5.9 in [15 cm]

Product Height

3.4 in [86 mm]

Package Depth

3.9 in [100 mm]

Package Width

9.4 in [23.8 cm]

Package Height

7.9 in [20 cm]

Color

Silver

Warranty

3 Years

Connector 1

ATX Power (24-Pin, 3.3V / 5V / 12V)

Connector 1 (Quantity)

1

Package Quantity

1

Connector 2

ATX 12V EPS Power (4+4 pin)

Connector 2 (Quantity)

1

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 80°C (-4°F to 176°F)

Humidity

10~90% RH

Material

Nickel-plated Steel

Connector 3

PCIe Power (6-Pin, 12V, 75W)

Connector 3 (Quantity)

2

MTBF

100,000 Hrs

Connector 4

SATA (15-Pin)

Connector 4 (Quantity)

5

Connector 5

LP4 / Molex Power (4-Pin, 5V / 12V)

Connector 5 (Quantity)

5

Connector 6

SP4 / Floppy Power (4-Pin, 5V / 12V)

Connector 6 (Quantity)

2

Fan Bearing Type

Dual Ball Bearing

Fans

1 - 80 mm

Connector 7

Fan TX3 (3-Pin, 12V)

Connector 7 (Quantity)

1

Noise Level

33.31 dBa

Air Flow Rate

41.13 CFM

Fan RPM

3500 RPM +/-10%
