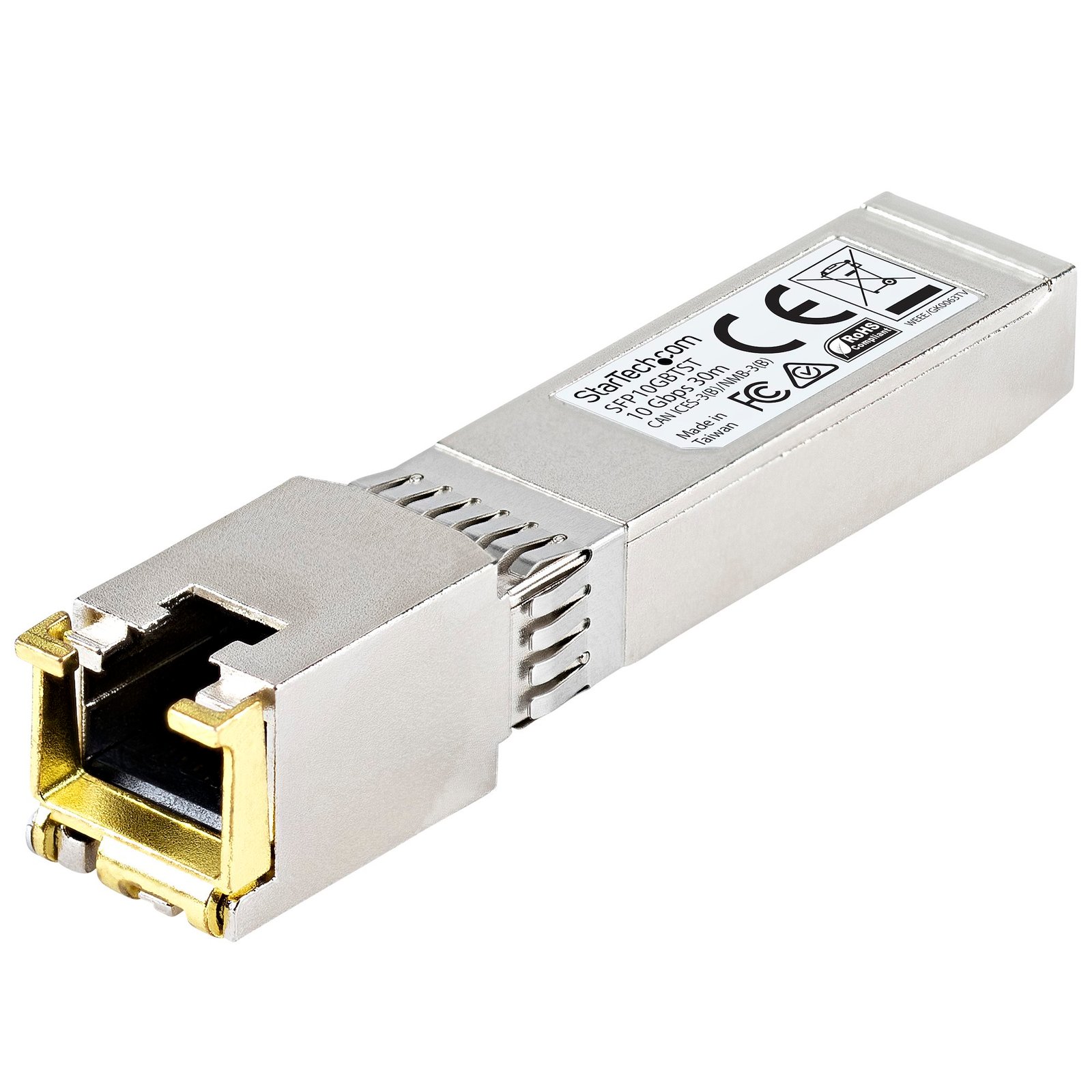

MSA Uncoded SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m

MSA Uncoded SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m

$241.89

10 Gbps | Copper | RJ45 | 30 m (98.4 ft) | Lifetime Warranty

SKU: SFP10GBTST Category:

Specifications & Compliance

UPC
065030873376
Brand
StarTech.com
Included in Package
1 - SFP+ transceiver
Shipping (Package) Weight
2.0 oz [56 g]
Weight of Product
1.0 oz [28.0 g]
Product Length
2.8 in [70.0 mm]
Product Width
0.5 in [13.9 mm]
Product Height
0.5 in [12.6 mm]
Package Depth
4.7 in [11.9 cm]
Package Width
3.0 in [76 mm]
Package Height
1.3 in [34 mm]
Color
Silver
Warranty
Lifetime
Package Quantity
1
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
5~95% RH
Material
Zinc Alloy
Maximum Data Transfer Rate
10 Gbps
Industry Standards
IEEE 802.3an 10GBASE-T
Power Consumption
2.3 W (max.)
MTBF
4,598,430 hours
System and Cable Requirements
MSA compliant SFP+ port
Host Connector 1
RJ-45
Host Connector 1 (Quantity)
1
Fiber Type
Copper
Compatible Brand
MSA Compliant
Max Transfer Distance
30m [98.4ft]
Fiber Operating Mode
Full-Duplex
Digitial Diagnostics Monitoring Support
No
Auto MDIX
Yes

Questions & Answers

Why is my SFP Transceiver not working with my Network Device?
Ensure the Network Device is running a compatible Firmware Version on a compatible Operating System . Please consult the manufacturer of the Network Device for more information regarding the minimum required or recommended system software.

How do I determine if a StarTech.com SFP transceiver is compatible with my network equipment?
It depends. A StarTech.com SFP transceiver is compatible only if it matches the vendor requirements and technical specifications of the network equipment. Explanation: SFP (Small Form-Factor Pluggable) transceivers are application-specific and must match both the vendor compatibility and technical parameters of the target device. Vendor compatibility: Some network equipment requires vendor-coded SFPs. For example, Cisco devices require Cisco-compatible SFPs, and standard (uncoded) SFPs will not function in those devices. However, Cisco-compatible SFPs may work in some non-Cisco devices, depending on the device’s requirements. Connector types: StarTech.com SFP transceivers are available with RJ-45 (copper) or fiber interfaces. RJ-45 SFPs do not have additional compatibility requirements beyond standard Ethernet support. Fiber SFP requirements: For fiber-based SFP transceivers, the following parameters must match the connected equipment and network: Connector type (e.g., LC, SC, ST) Fiber mode (single-mode or multi-mode) Wavelength (e.g., 850 nm, 1310 nm, 1550 nm) Speed (e.g., 1Gbps, 10Gbps) Digital Diagnostic Monitoring (DDM) support, if required These parameters cannot be altered by the cable, except for connector type through the use of appropriate cabling. If your device is not a Cisco device, it can still use Cisco compatible SFPs. Cisco SFPs are specifically coded to be compatible with Cisco devices. A standard SFP will not work in a Cisco device. StarTech.com offers two different output connector types for SFPs: RJ-45 and fiber. No special requirements are necessary to use RJ-45 SFPs. However, if you use fiber transceivers, the following items need to be the same as the interconnecting equipment: The connector type, such as LC, SC, or ST. The mode (single mode or multi mode). The wavelength, such as 850 nm, 1310 nm, or 1550 nm. The DDM support. The speed, such as 10Gbps. Note: The properties listed above cannot be converted or changed by a cable, excluding the connector type.
