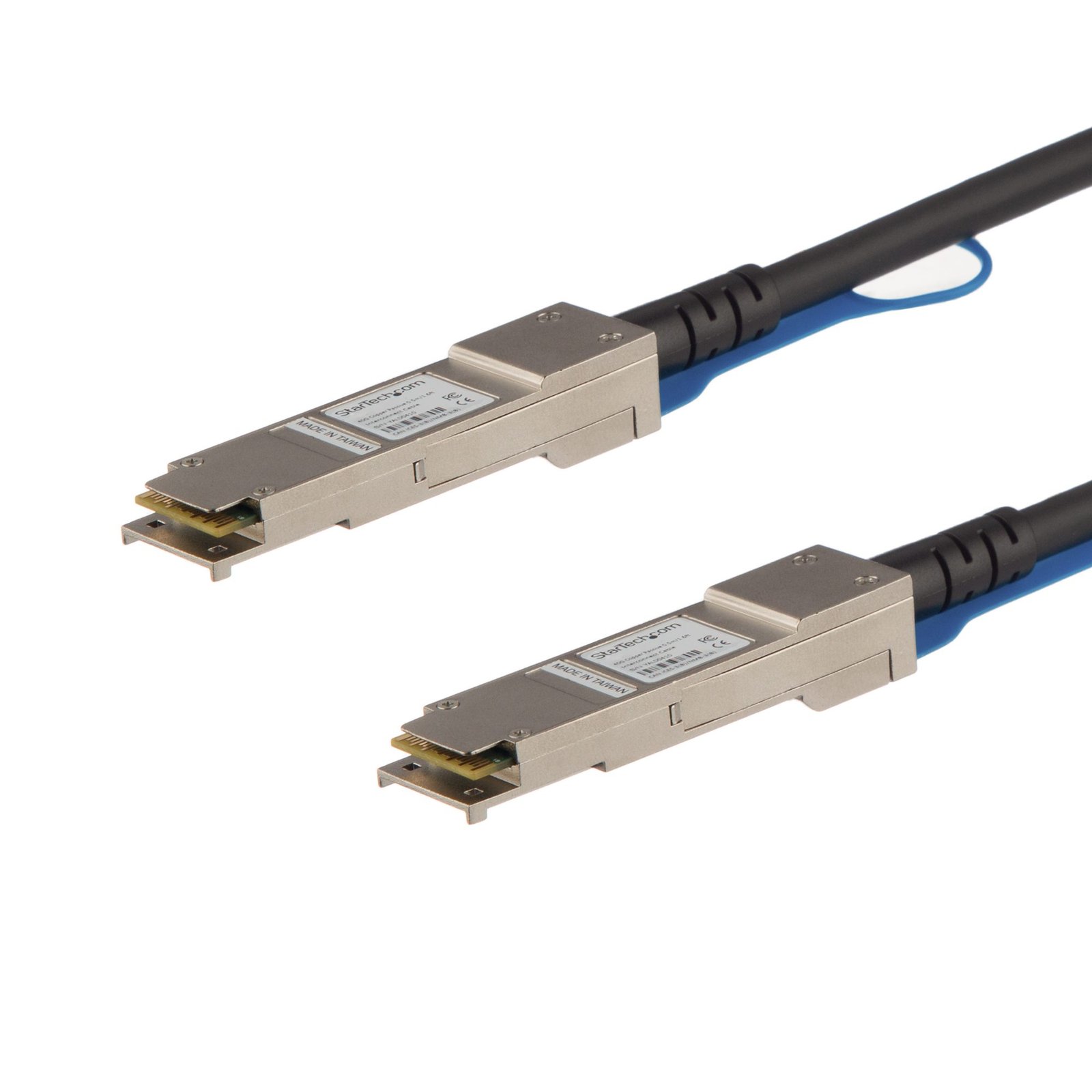

MSA Uncoded Compatible 7m 40G QSFP+ to QSFP+ Direct Attach Breakout Cable Twinax - 40 GbE QSFP+ Copper DAC 40 Gbps Low Power Active

MSA Uncoded Compatible 7m 40G QSFP+ to QSFP+ Direct Attach Breakout Cable Twinax - 40 GbE QSFP+ Copper DAC 40 Gbps Low Power Active Transceiver Module DAC

$109.99

Copper QSFP+ Cable | 40 Gbps | Active DAC | Lifetime Warranty

SKU: QSFP40GAC7M Category:

Specifications & Compliance

UPC
065030874830
Brand
StarTech.com
Included in Package
1 - QSFP+ cable
Shipping (Package) Weight
17.8 oz [504 g]
Weight of Product
17.3 oz [490.0 g]
Product Length
22.7 ft [6.9 m]
Product Width
0.6 in [14.0 mm]
Product Height
0.5 in [12.0 mm]
Package Depth
11.0 in [28 cm]
Package Width
13.2 in [33.5 cm]
Package Height
1.2 in [30 mm]
Color
Black
Cable Length
23.0 ft [7 m]
Warranty
Lifetime
Connector 1
QSFP+ (40Gbps)
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2 (Quantity)
1
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 80°C (-40°F to 158°F)
Material
Steel
Cable Jacket Material
PVC - Polyvinyl Chloride
Wire Gauge
24 AWG
Maximum Data Transfer Rate
40Gbps
Cable Type
Active Copper Cable
Power Consumption
< 0.7 W (per end)
Compatible Brand
MSA Compliant
Impedance
100 Ohm

Questions & Answers

Why is my SFP Transceiver not working with my Network Device?
Ensure the Network Device is running a compatible Firmware Version on a compatible Operating System . Please consult the manufacturer of the Network Device for more information regarding the minimum required or recommended system software.
