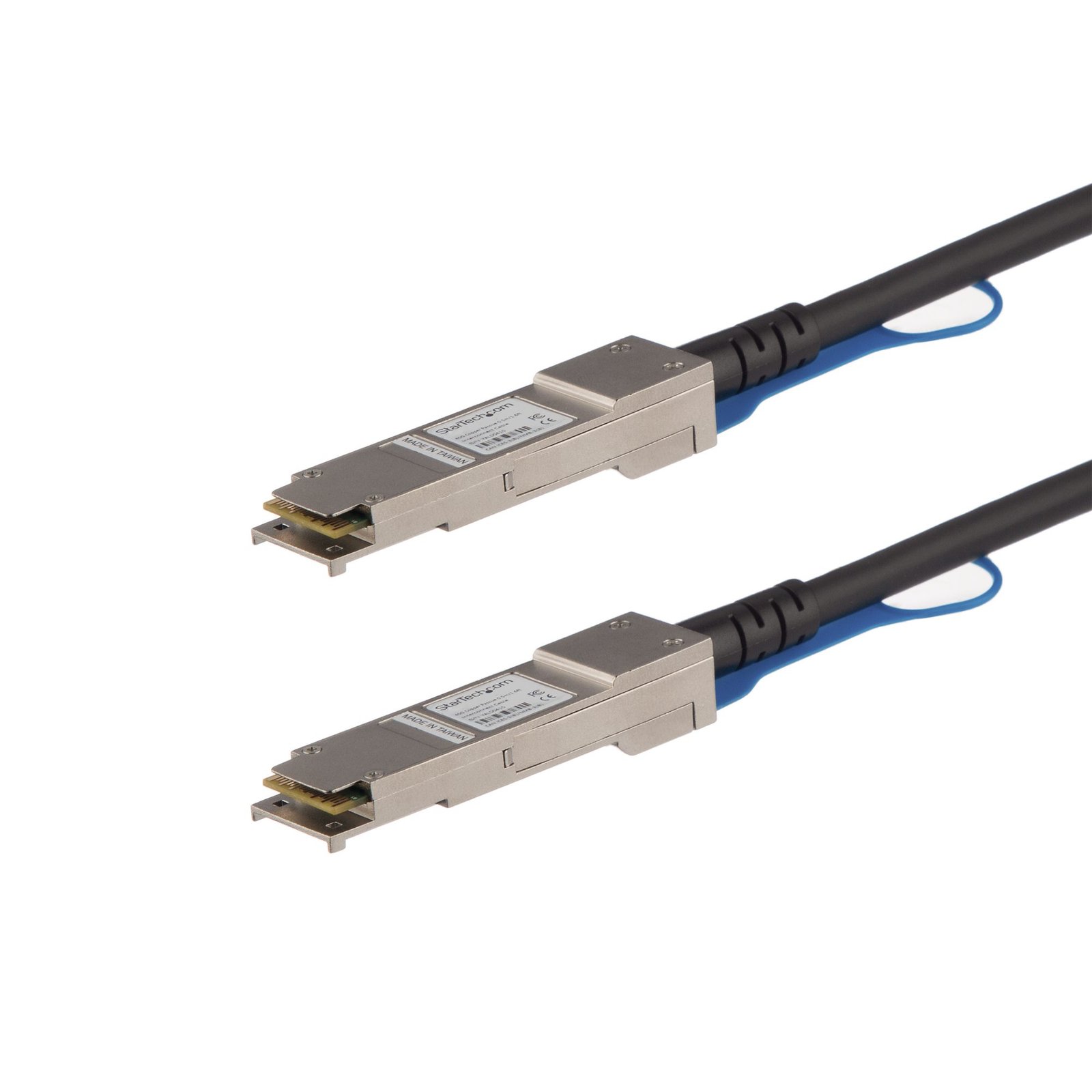

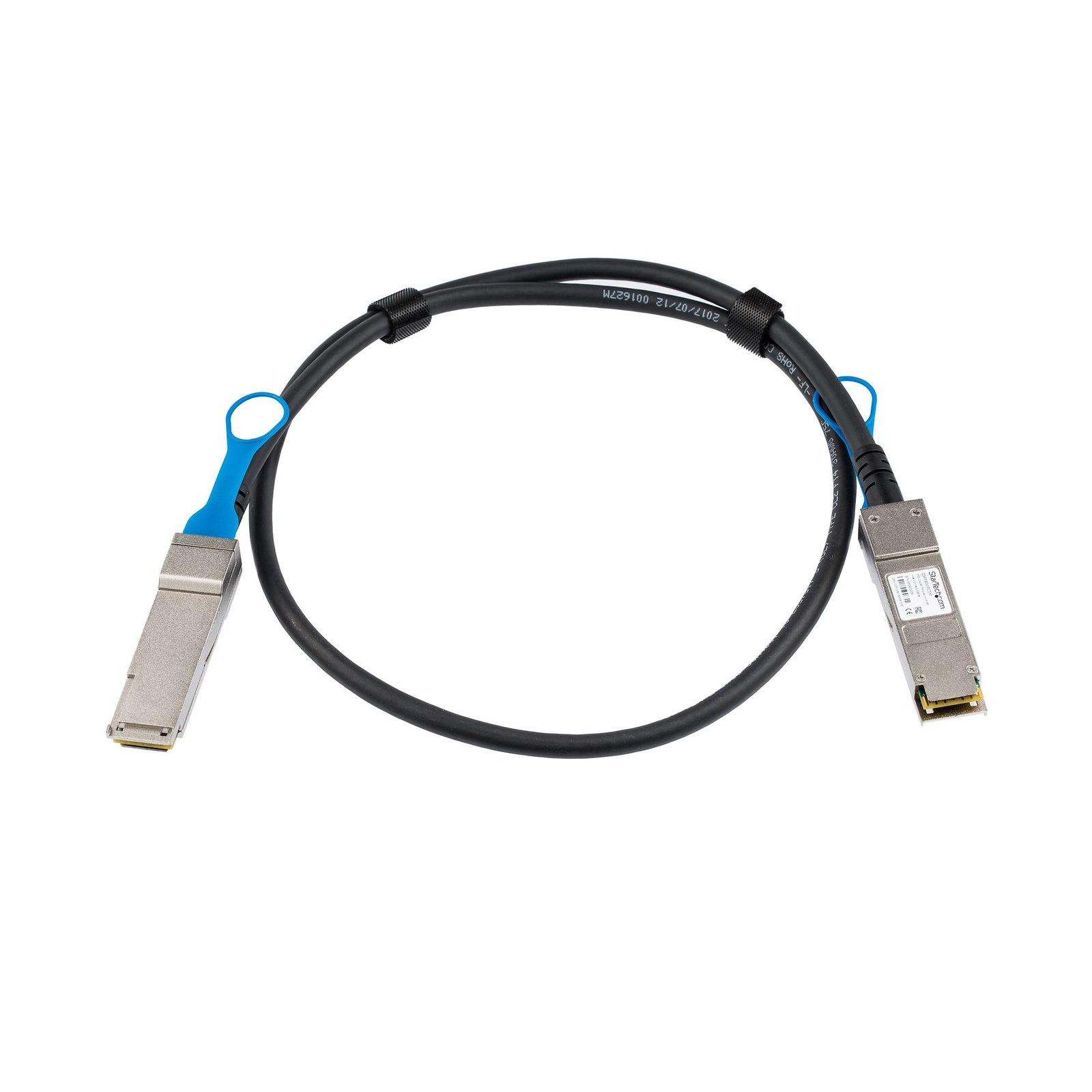

MSA Uncoded Compatible 1m 40G QSFP+ to QSFP+ Direct Attach Breakout Cable Twinax - 40 GbE QSFP+ Copper DAC 40 Gbps Low Power Passive

MSA Uncoded Compatible 1m 40G QSFP+ to QSFP+ Direct Attach Breakout Cable Twinax - 40 GbE QSFP+ Copper DAC 40 Gbps Low Power Passive Transceiver Module DAC

$33.99

Copper QSFP+ Cable | 40 Gbps | Passive DAC | Lifetime Warranty

SKU: QSFP40GPC1M Category:

Specifications & Compliance

UPC
065030875288
Brand
StarTech.com
Included in Package
1 - QSFP+ cable
Shipping (Package) Weight
5.2 oz [148 g]
Weight of Product
4.6 oz [130.0 g]
Product Length
3.3 ft [1.0 m]
Product Width
0.7 in [18.0 mm]
Product Height
0.5 in [13.0 mm]
Package Depth
8.1 in [20.7 cm]
Package Width
7.6 in [19.3 cm]
Package Height
1.0 in [26 mm]
Color
Black
Cable Length
3.3 ft [1 m]
Warranty
Lifetime
Connector 1
QSFP+ (40Gbps)
Connector 1 (Quantity)
1
Package Quantity
1
Connector 2 (Quantity)
1
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 80°C (-40°F to 158°F)
Material
Steel
Cable Jacket Material
PVC - Polyvinyl Chloride
Wire Gauge
30 AWG
Maximum Data Transfer Rate
40Gbps
Cable Type
Passive Copper Cable
Power Consumption
< 0.1 W (per end)
Compatible Brand
MSA Compliant
Impedance
100 Ohm

Questions & Answers

Why is my SFP Transceiver not working with my Network Device?
Ensure the Network Device is running a compatible Firmware Version on a compatible Operating System . Please consult the manufacturer of the Network Device for more information regarding the minimum required or recommended system software.
