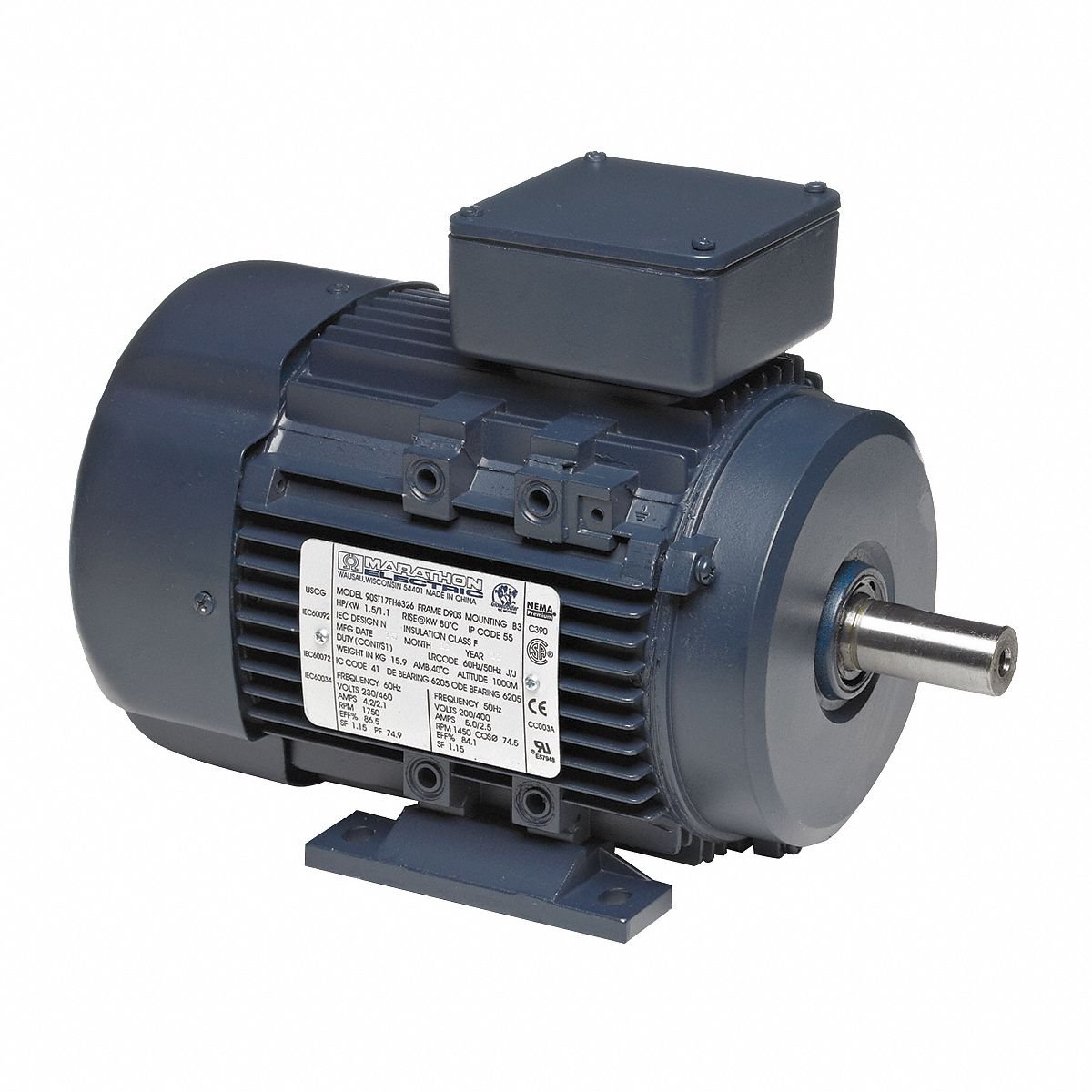

MARATHON MOTORS Metric Motor: 100 hp, Rigid Base Mount, 315S Frame Size, Totally Enclosed Fan Cooled

Specifications & Compliance

Manufacturer #

TCA0753AE211GAA009

Brand

MARATHON MOTORS

Nameplate Horsepower @ 60 Hz

100 hp

Nameplate RPM @ 60 Hz

1,190 RPM

Frame Size

315S

Nameplate Voltage @ 60 Hz

230/460V AC

Full Load Amps @ 60 Hz

246.0/123.0 A

Motor Enclosure

TEFC

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

80 mm x 170 mm
