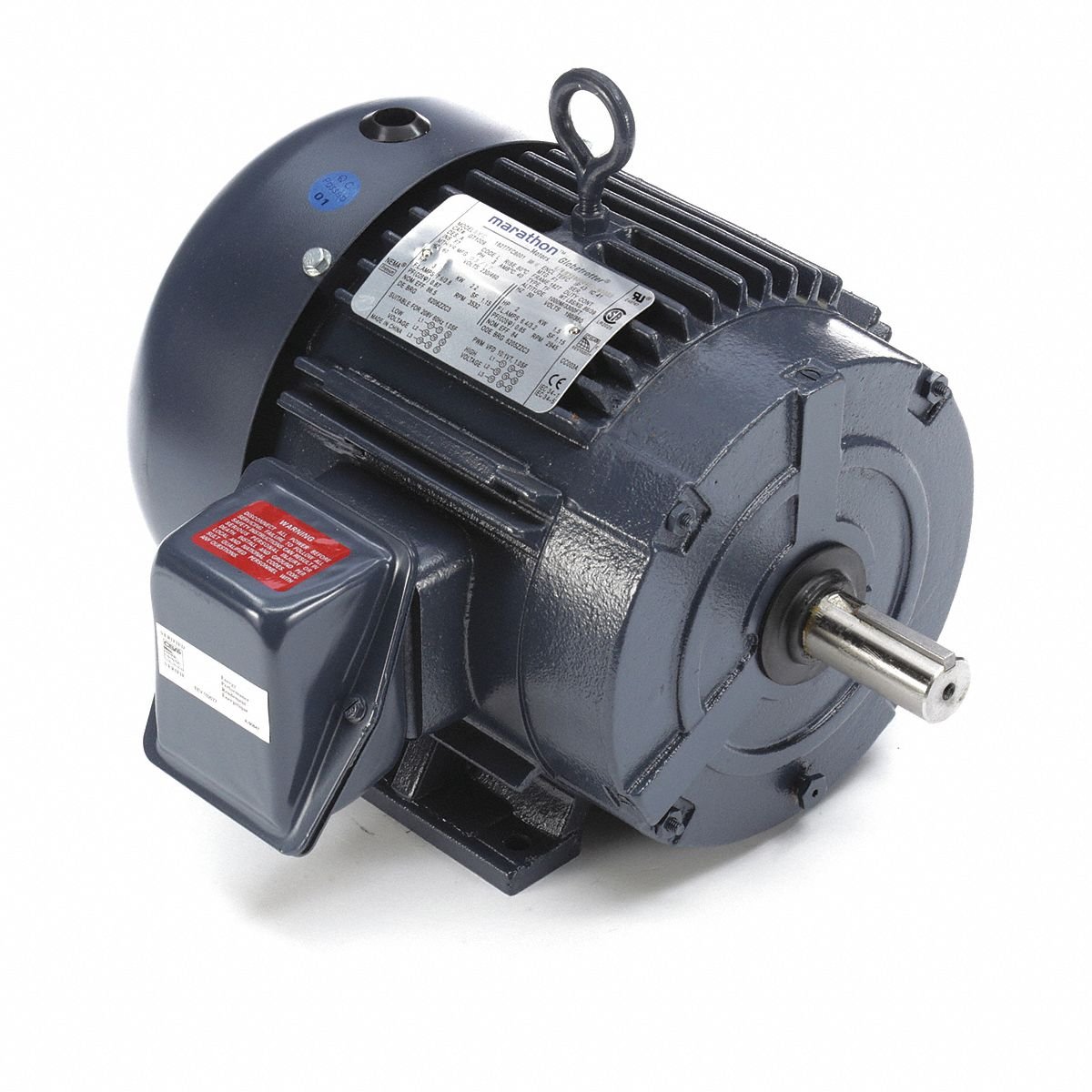

MARATHON MOTORS General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 3 hp

Specifications & Compliance

Manufacturer #

182TTFCD6001

Brand

MARATHON MOTORS

Nameplate Horsepower @ 60 Hz

3 hp

Nameplate RPM @ 60 Hz

3,530 RPM

Frame Size

182T

Nameplate Voltage @ 60 Hz

230/460V AC

Full Load Current @ 60 Hz

8.2/4.1 A

Motor Enclosure

TEFC

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

1-1/8 in x 2-3/4 in

Frame Family

NEMA 180

Motor Enclosure Type

Totally Enclosed Fan Cooled

Mounting Type

Rigid Base
