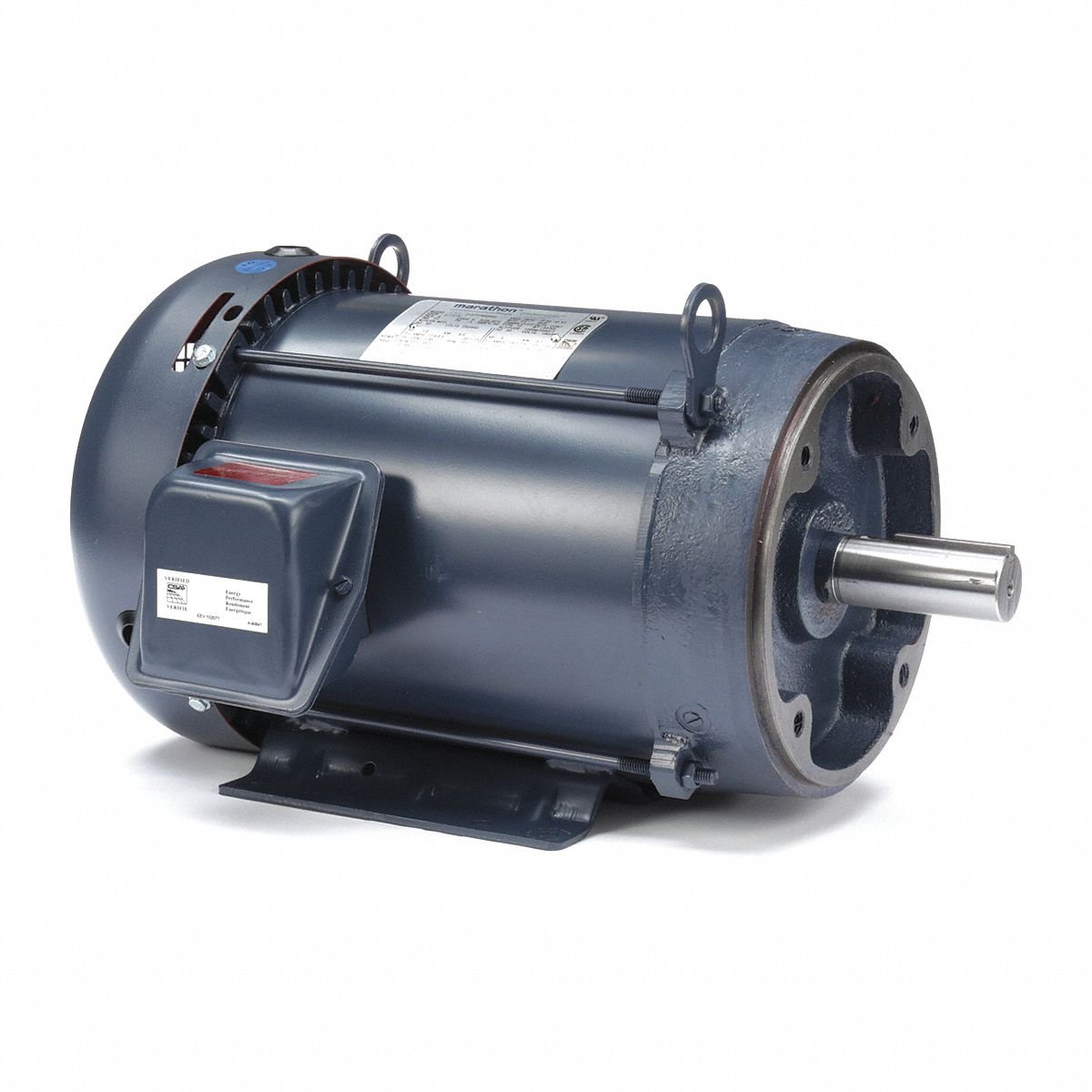

MARATHON MOTORS General Purpose Motor: C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled

Specifications & Compliance

Manufacturer #

213TTFBD6003

Brand

MARATHON MOTORS

Nameplate Horsepower @ 60 Hz

7-1/2 hp

Nameplate RPM @ 60 Hz

3,500 RPM

Frame Size

213TC

Nameplate Voltage @ 60 Hz

230/460V AC

Full Load Current @ 60 Hz

18.4/9.2 A

Motor Enclosure

TEFC

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

1-3/8 in x 3-3/8 in

Frame Family

NEMA 210

Motor Enclosure Type

Totally Enclosed Fan Cooled

Mounting Type

Rigid Base; C-Face
