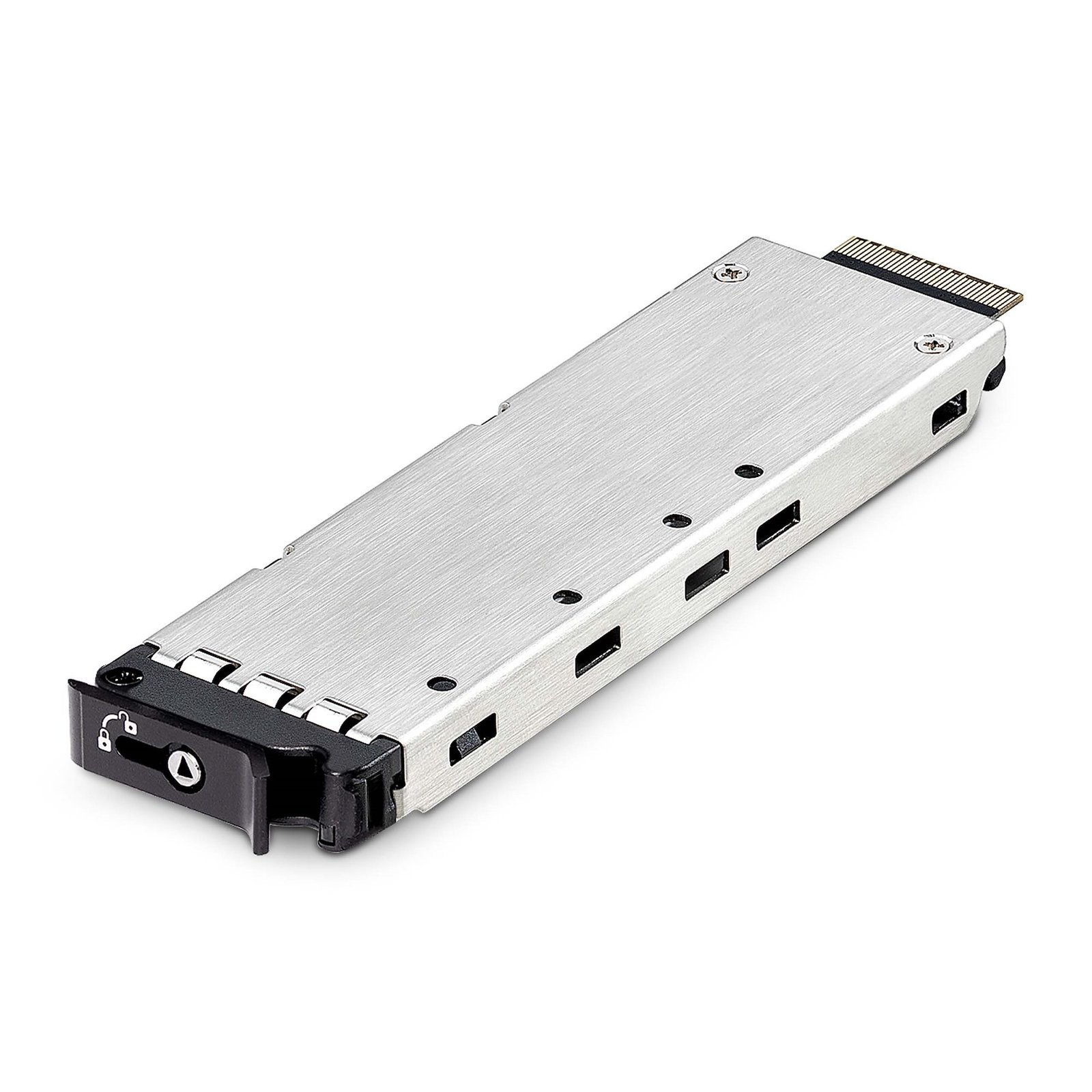

M.2 NVMe SSD Drive Tray for use in PCIe Expansion Product Series - Drive Tray for an Additional Hot Swappable Drive

Specifications & Compliance

UPC

065030900393

Brand

StarTech.com

Included in Package

1 - M.2 Drive Tray, 1 - Adhesive Heatsink Pad, 1 - Quick-Start Guide

Shipping (Package) Weight

3.1 oz [88 g]

Weight of Product

1.3 oz [36.0 g]

Product Length

4.9 in [12.4 cm]

Product Width

1.3 in [34.0 mm]

Product Height

0.5 in [12.0 mm]

Package Depth

2.9 in [74 mm]

Package Width

5.8 in [14.7 cm]

Package Height

0.9 in [23 mm]

Color

Black & Silver

Warranty

2 Years

Connector 1

M.2 M-Key (PCIe, AHCI / NVMe)

Connector 1 (Quantity)

1

Package Quantity

1

Operating Temperature

0⁰C to 65⁰C (32°F to 149°F)

Storage Temperature

-35⁰C to 70⁰C (-31°F to 158°F)

Humidity

0% ~ 90% RH

Maximum Data Transfer Rate

64Gbps

Industry Standards

PCI Express 4.0

LED Indicators

1 - <b>Red:</b> Connected Drive is Not Supported, 1 - <b>Green:</b> Connected Drive is Supported, 1 - <b>Yellow:</b> Flashes to indicate Drive Activity

Bus Type

PCI Express

System and Cable Requirements

Requires the base product M2-REMOVABLE-PCIE-N1 or 2M2-REMOVABLE-PCIE

SATA Type and Rate

PCI Express 4.0 (16 Gbps per lane)

Compatible Drive Types

M.2 (PCIe, NVMe, M-Key, NGFF)

Number of Drives

1

Drive Size

22 mm - M.2 NVMe

Drive Installation

Removable

RAID

No

Hot Swap Capability

Yes

Front Door Key Lock

Yes

4Kn Support

Yes

TRIM Support

Yes

Supported Drive Height(s)

2230, 2242, 2260, 2280

S.M.A.R.T. Support

Yes
