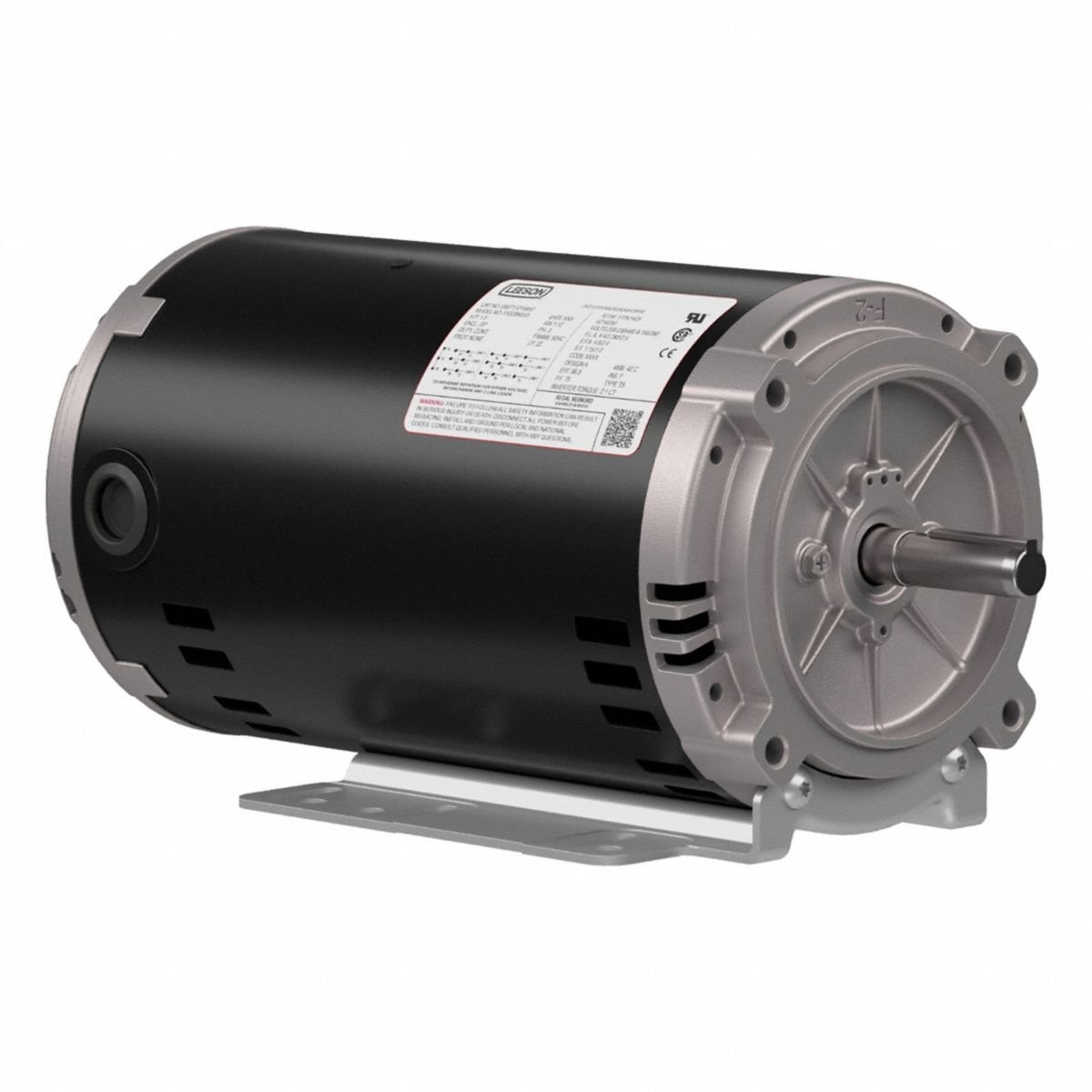

LEESON General Purpose Motors: C-Face/Universal Mount, Open Drip Proof, 1 1/2 hp, 230/460V AC

Specifications & Compliance

Manufacturer #

056T17D15850

Brand

LEESON

Nameplate Horsepower @ 60 Hz

1-1/2 hp

Nameplate RPM @ 60 Hz

1,725 RPM

Frame Size

56HC

Nameplate Voltage @ 60 Hz

230/460V AC

Full Load Current @ 60 Hz

4.4/2.2 A

Motor Enclosure

ODP

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

5/8 in x 1-7/8 in

Frame Family

NEMA 56

Motor Enclosure Type

Open Drip Proof

Mounting Type

C-Face; Universal
