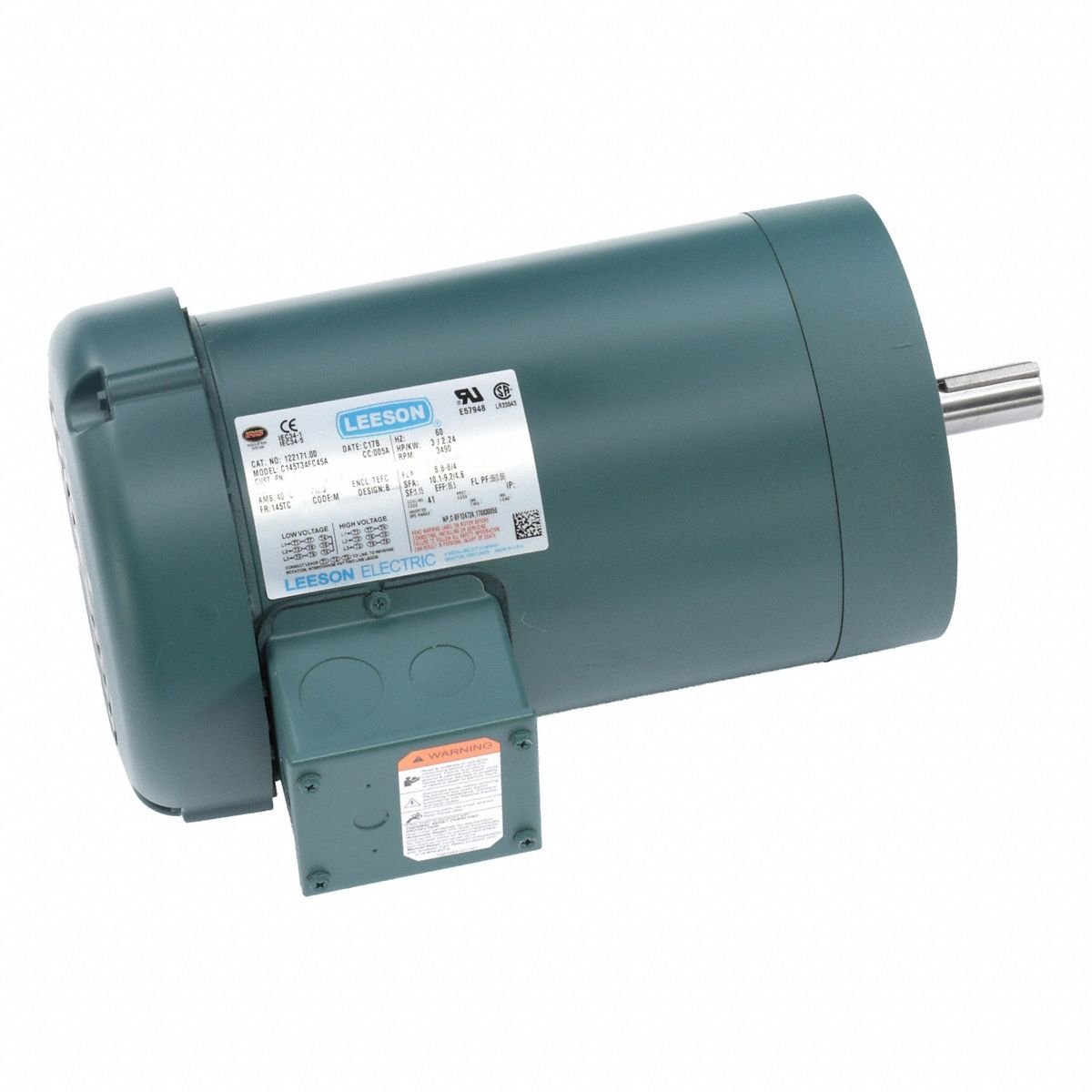

LEESON General Purpose Motors: C-Face Mount, Totally Enclosed Air-Over, 3 hp, 208-230/460V AC

Specifications & Compliance

Manufacturer #

122171.00

Brand

LEESON

Nameplate Horsepower @ 60 Hz

3 hp

Nameplate RPM @ 60 Hz

3,490 RPM

Frame Size

145TC

Nameplate Voltage @ 60 Hz

208-230/460V AC

Full Load Current @ 60 Hz

8.8-8.0/4.0 A

Motor Enclosure

TEAO

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

7/8 in

Frame Family

NEMA 140

Motor Enclosure Type

Totally Enclosed Air-Over

Mounting Type

C-Face
