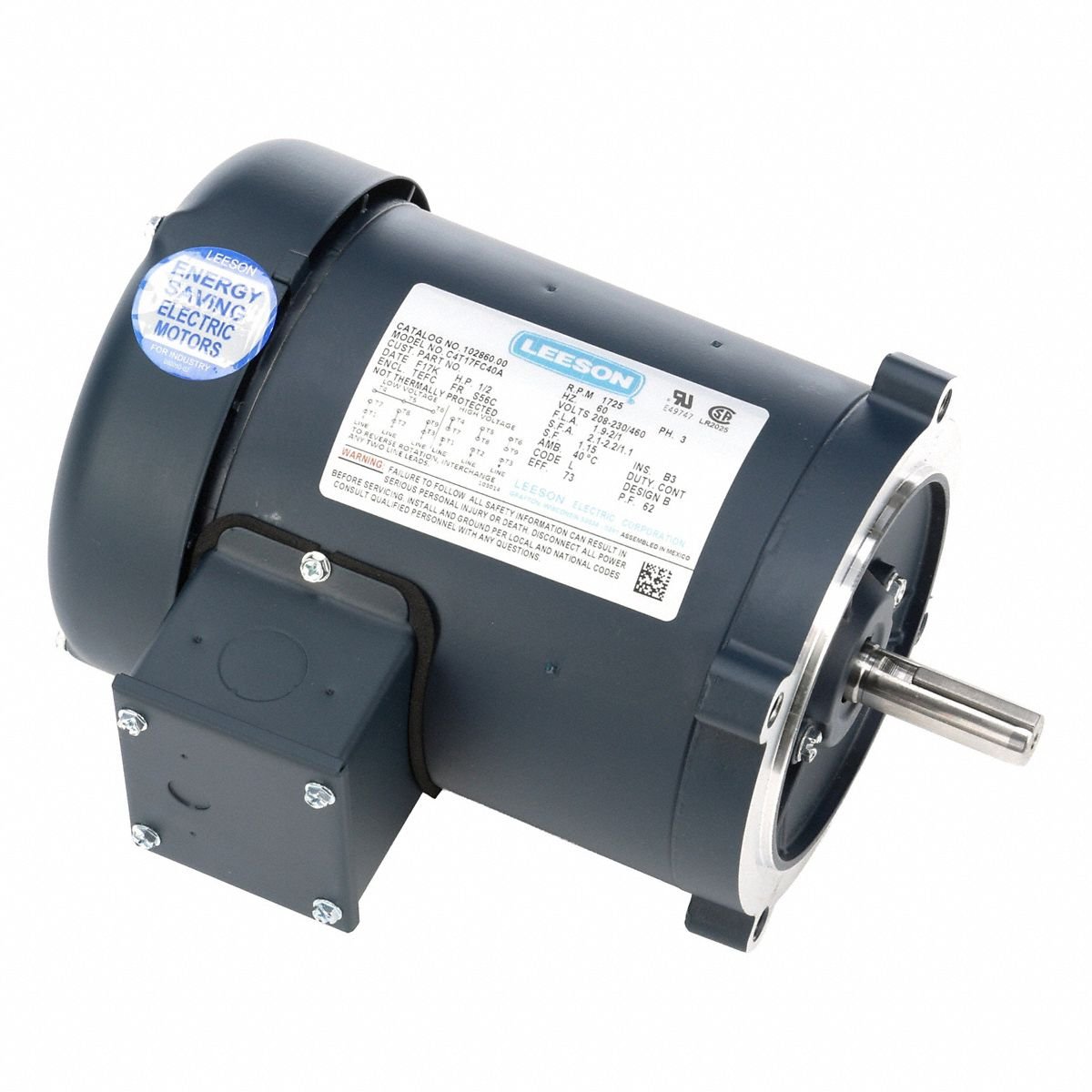

LEESON General Purpose Motors: C-Face Mount, Totally Enclosed Air-Over, 1/2 hp, 208-230/460V AC

Specifications & Compliance

Manufacturer #

102860.00

Brand

LEESON

Nameplate Horsepower @ 60 Hz

1/2 hp

Nameplate RPM @ 60 Hz

1,725 RPM

Frame Size

56C

Nameplate Voltage @ 60 Hz

208-230/460V AC

Full Load Current @ 60 Hz

1.9-2.0/1.0 A

Motor Enclosure

TEAO

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

5/8 in

Frame Family

NEMA 56

Motor Enclosure Type

Totally Enclosed Air-Over

Mounting Type

C-Face
