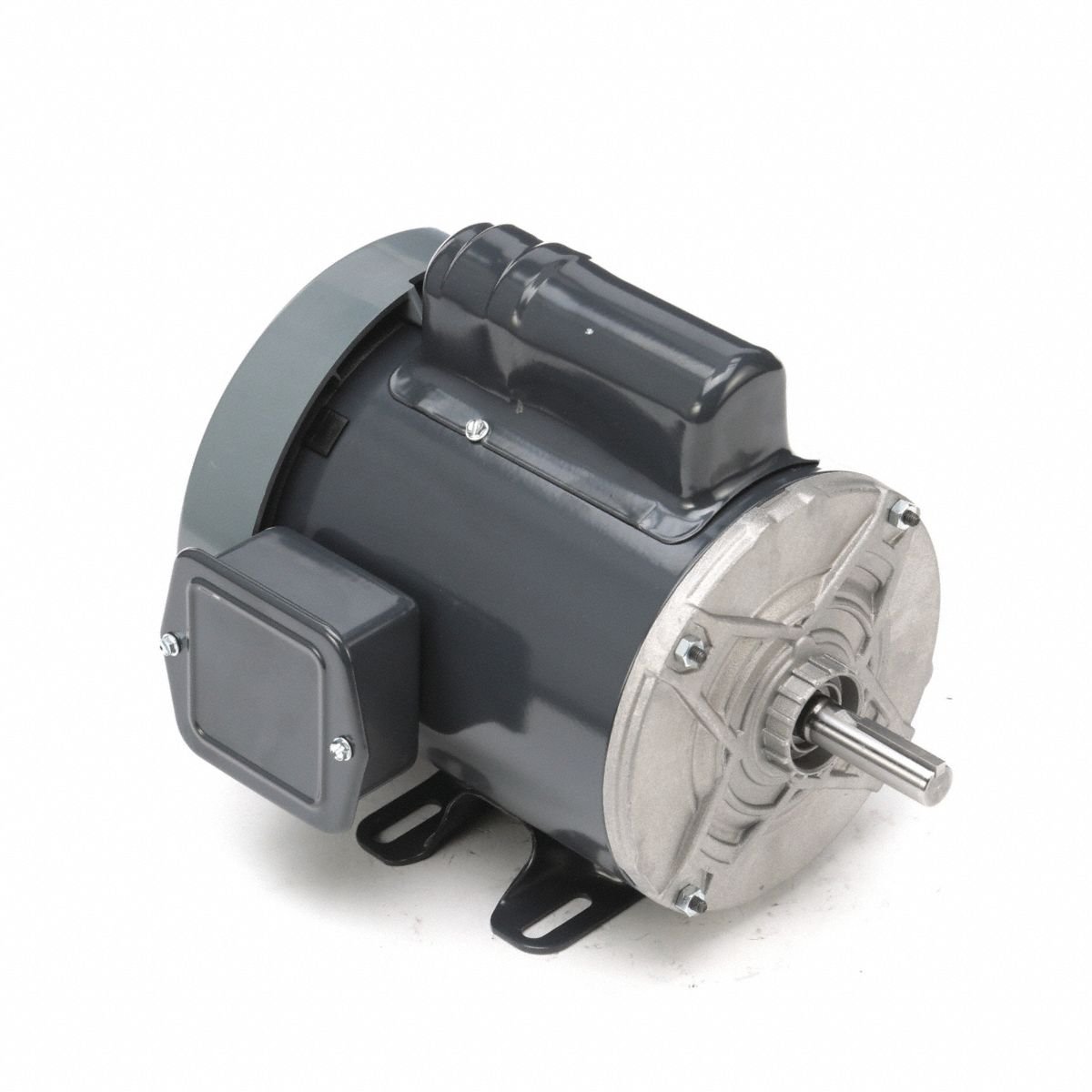

LEESON General Purpose Motor: Single Phase, 3/4 hp, 115/230V AC, 56 Frame Size, 5/8 in x 1 7/8 in, B

Specifications & Compliance

Manufacturer #

5KC46PN0015X

Brand

LEESON

Nameplate Horsepower @ 60 Hz

3/4 hp

Nameplate RPM @ 60 Hz

1,725 RPM

Frame Size

56

Nameplate Voltage @ 60 Hz

115/230V AC

Full Load Amps @ 60 Hz

11.0/5.5 A

Motor Enclosure Type(Abbreviated)

TEFC

Motor Thermal Protection

Auto

Nameplate Service Factor @ 60 Hz

1

Output Shaft (Dia x L)

5/8 in x 1-7/8 in

Phase

Single

Frequency

60 Hz

Insulation Class

B

Shaft Diameter

5/8 in

Shaft Length

1-7/8 in

Motor Design

Capacitor-Start

Mounting Type

Rigid Base

Motor Enclosure Type

Totally Enclosed Fan Cooled

Motor Shaft Rotation

CW/CCW

Nominal Efficiency

70.5 %

Number of Speeds

1

Efficiency Rating

Standard Efficiency (IE1)
