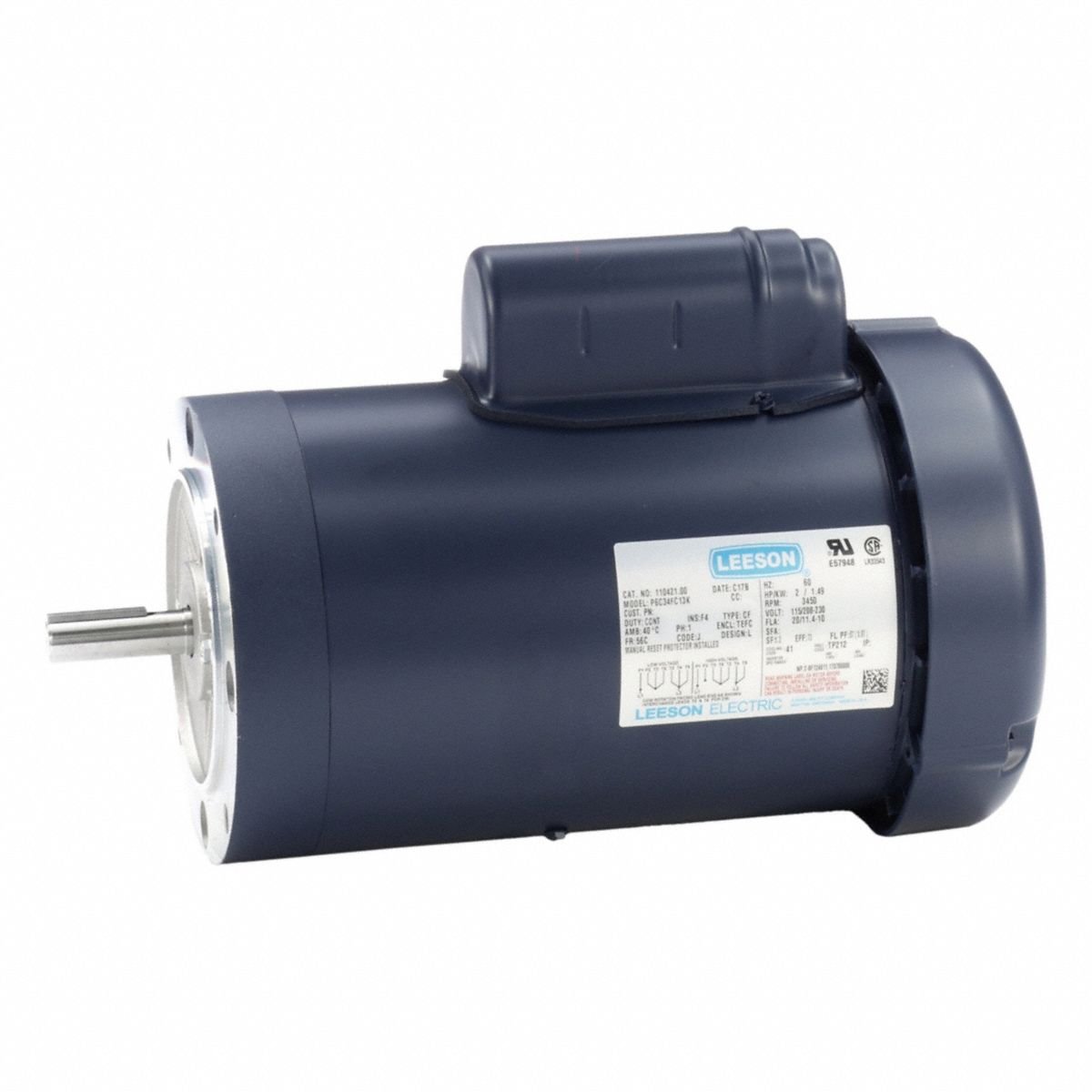

LEESON General Purpose Motor: Single Phase, 2 hp, 115/208-230V AC, 56C Frame Size, 3,450 RPM, 60 Hz

Specifications & Compliance

Manufacturer #

110421.00

Brand

LEESON

Nameplate Horsepower @ 60 Hz

2 hp

Nameplate RPM @ 60 Hz

3,450 RPM

Frame Size

56C

Nameplate Voltage @ 60 Hz

115/208-230V AC

Full Load Amps @ 60 Hz

20.0/10.0 A

Motor Enclosure Type(Abbreviated)

TEFC

Motor Thermal Protection

Manual

Nameplate Service Factor @ 60 Hz

1

Output Shaft (Dia x L)

5/8 in x 2-1/16 in

Phase

Single

Frequency

60 Hz

Insulation Class

F

Shaft Diameter

5/8 in

Shaft Length

2-1/16 in

Motor Design

Capacitor-Start

Mounting Type

C-Face; Rigid Base

Motor Enclosure Type

Totally Enclosed Fan Cooled

Motor Shaft Rotation

CW/CCW

Nominal Efficiency

73 %

Number of Speeds

1

Efficiency Rating

Standard Efficiency (IE1)
