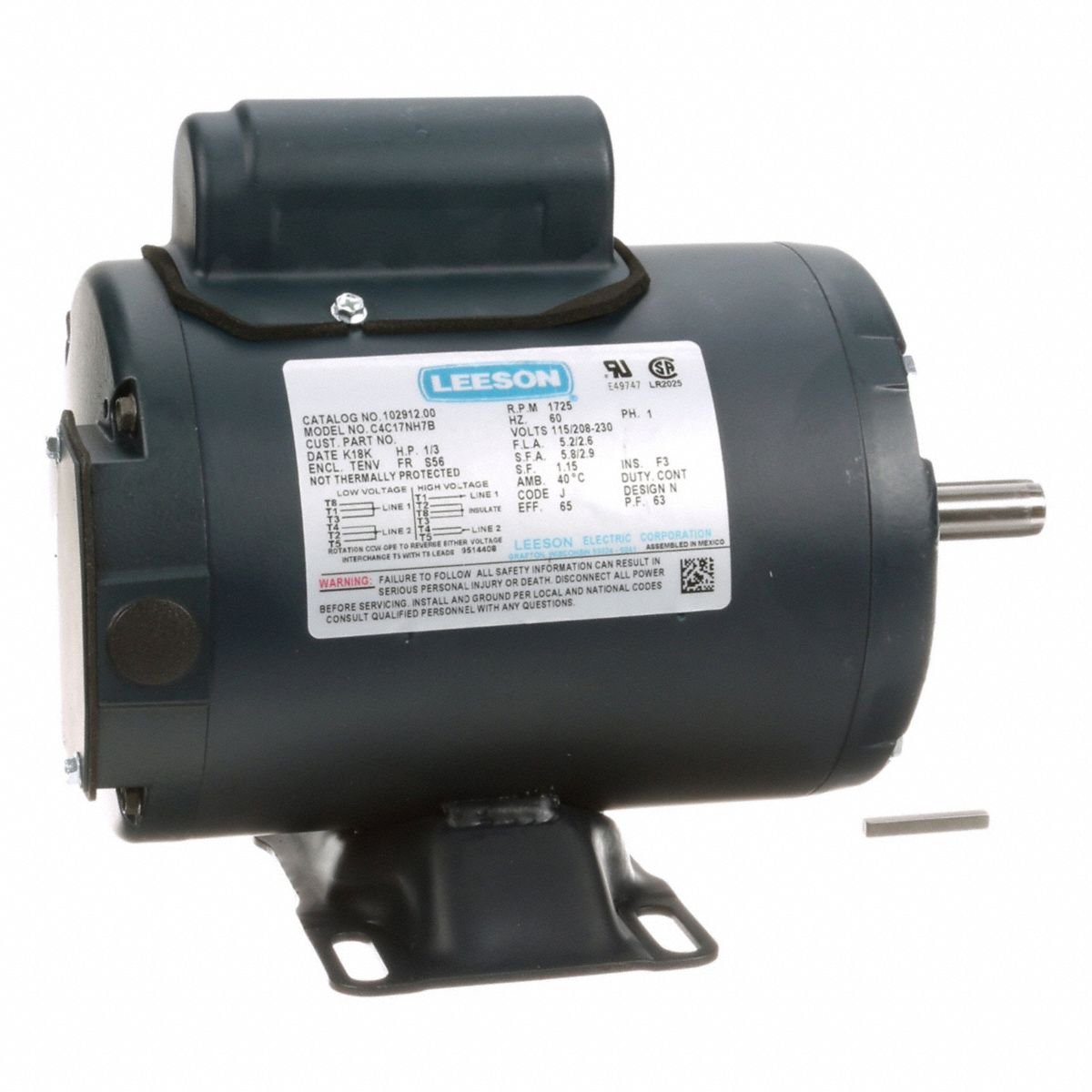

LEESON General Purpose Motor: Single Phase, 1/3 hp, 115/208-230V AC, 56 Frame Size, 1,725 RPM, 60 Hz

Specifications & Compliance

Manufacturer #

102912.00

Brand

LEESON

Nameplate Horsepower @ 60 Hz

1/3 hp

Nameplate RPM @ 60 Hz

1,725 RPM

Frame Size

56

Nameplate Voltage @ 60 Hz

115/208-230V AC

Full Load Amps @ 60 Hz

5.2/2.6 A

Motor Enclosure Type(Abbreviated)

TENV

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

5/8 in x 1-7/8 in

Phase

Single

Frequency

60 Hz

Insulation Class

F

Shaft Diameter

5/8 in

Shaft Length

1-7/8 in

Motor Design

Capacitor-Start

Mounting Type

Rigid Base

Motor Enclosure Type

Totally Enclosed Non-Ventilated

Motor Shaft Rotation

CW/CCW

Nominal Efficiency

65 %

Number of Speeds

1

Efficiency Rating

Standard Efficiency (IE1)
