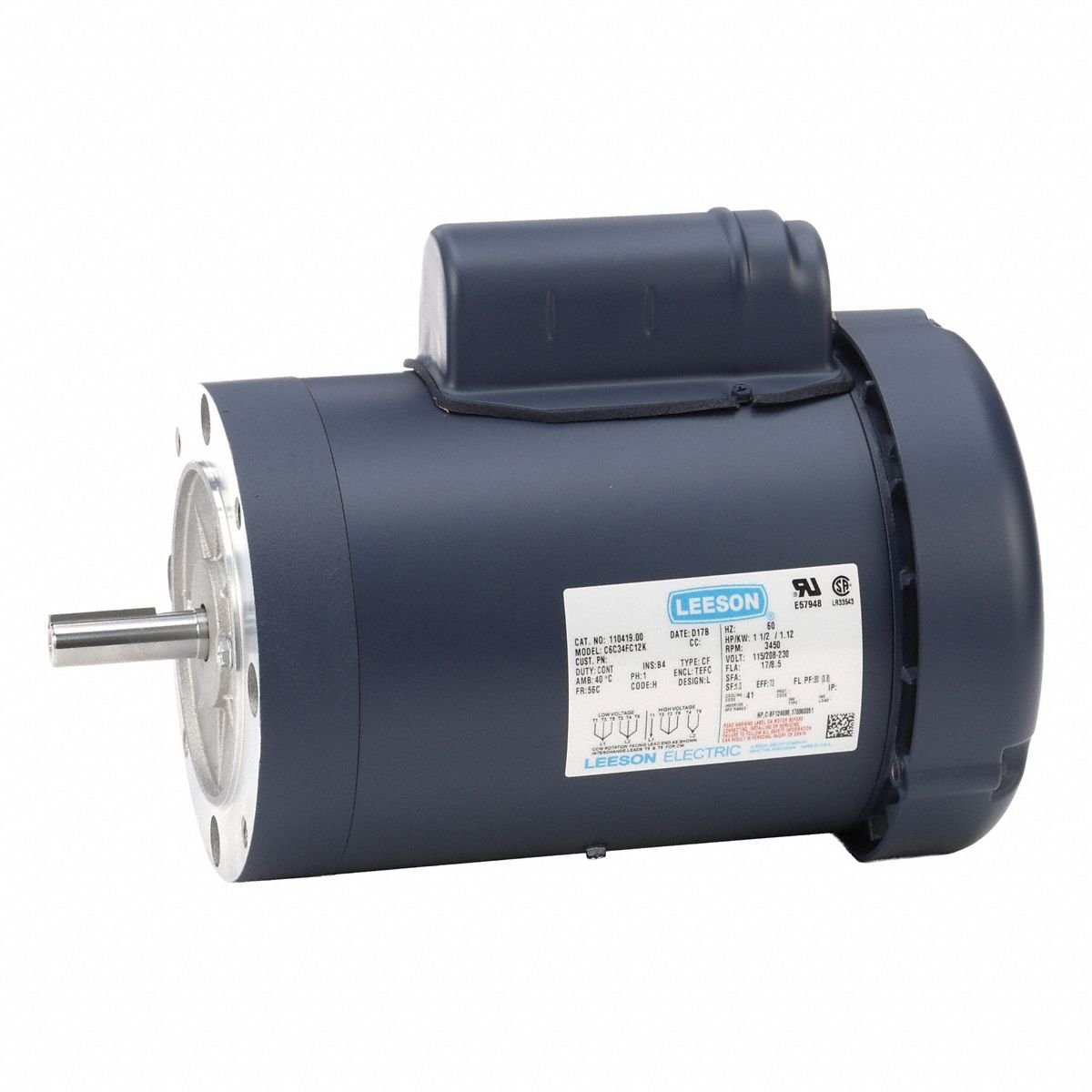

LEESON General Purpose Motor: Single Phase, 1 1/2 hp, 115/230V AC, 56C Frame Size, 5/8 in x 1 7/8 in

Specifications & Compliance

Manufacturer #

110419.00

Brand

LEESON

Nameplate Horsepower @ 60 Hz

1-1/2 hp

Nameplate RPM @ 60 Hz

3,450 RPM

Frame Size

56C

Nameplate Voltage @ 60 Hz

115/230V AC

Full Load Amps @ 60 Hz

17.0/9.0-8.5 A

Motor Enclosure Type(Abbreviated)

TEFC

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1

Output Shaft (Dia x L)

5/8 in x 1-7/8 in

Phase

Single

Frequency

60 Hz

Insulation Class

B

Shaft Diameter

5/8 in

Shaft Length

1-7/8 in

Motor Design

Capacitor-Start

Mounting Type

C-Face; Rigid Base

Motor Enclosure Type

Totally Enclosed Fan Cooled

Motor Shaft Rotation

CCWSE

Nominal Efficiency

72 %

Number of Speeds

1

Efficiency Rating

Standard Efficiency (IE1)
