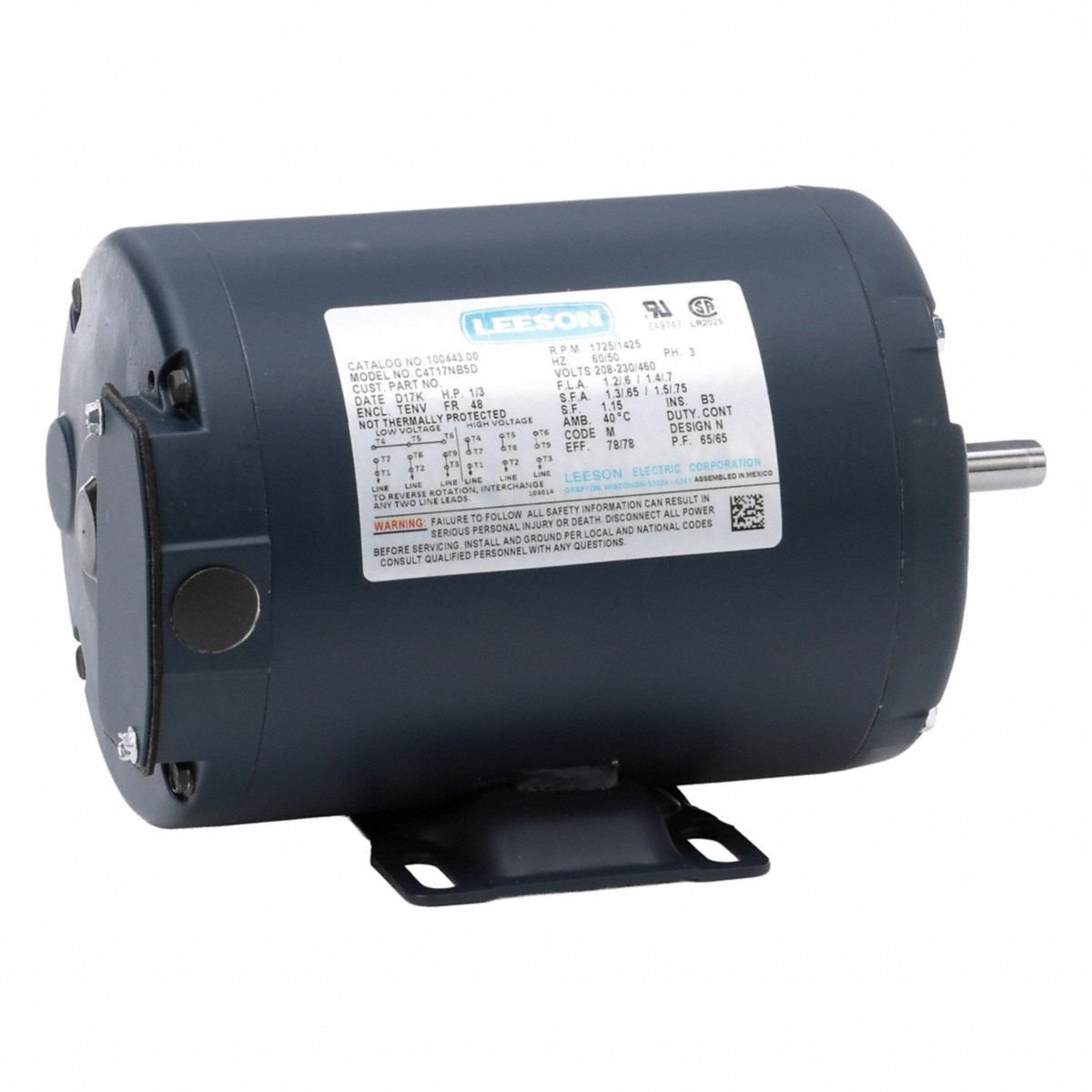

LEESON General Purpose Motor: Rigid Base Mount, Totally Enclosed Non-Ventilated, 1/3 hp, 230/460V AC

Specifications & Compliance

Manufacturer #

100443.00

Brand

LEESON

Nameplate Horsepower @ 60 Hz

1/3 hp

Nameplate RPM @ 60 Hz

1,725 RPM

Frame Size

48

Nameplate Voltage @ 60 Hz

230/460V AC

Full Load Current @ 60 Hz

1.2 A

Motor Enclosure

TENV

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

1/2 in x 1-1/2 in

Frame Family

NEMA 48

Motor Enclosure Type

Totally Enclosed Non-Ventilated

Mounting Type

Rigid Base
