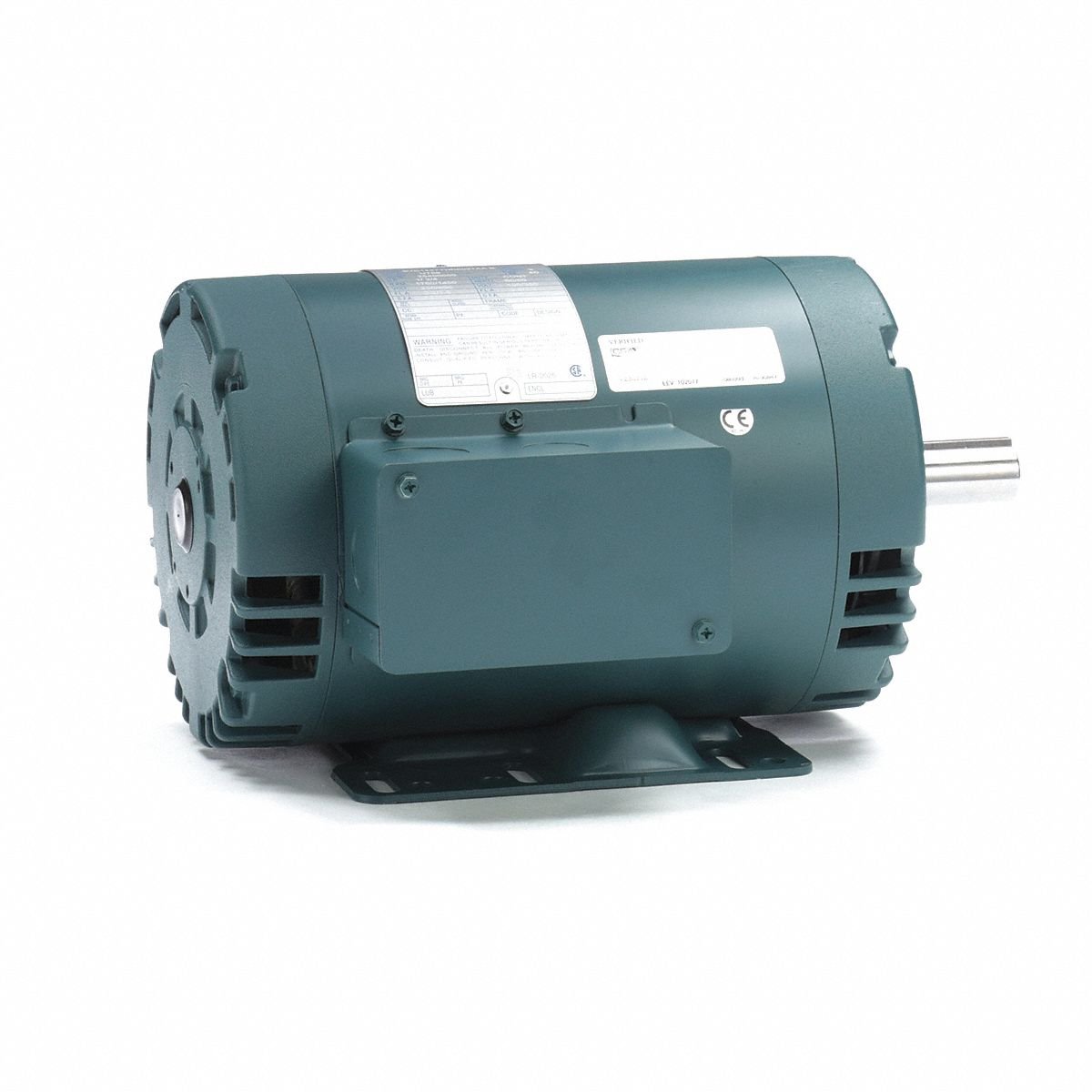

LEESON General Purpose Motor: Rigid Base Mount, Open Drip Proof, 1 hp, 230/460V AC, 1,760 RPM

Specifications & Compliance

Manufacturer #

143TTDR6027

Brand

LEESON

Nameplate Horsepower @ 60 Hz

1 hp

Nameplate RPM @ 60 Hz

1,760 RPM

Frame Size

143T

Nameplate Voltage @ 60 Hz

230/460V AC

Full Load Current @ 60 Hz

3.2/1.6 A

Motor Enclosure

ODP

Motor Thermal Protection

T-Stat

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

7/8 in x 2-3/8 in

Frame Family

NEMA 140

Motor Enclosure Type

Open Drip Proof

Mounting Type

Rigid Base
