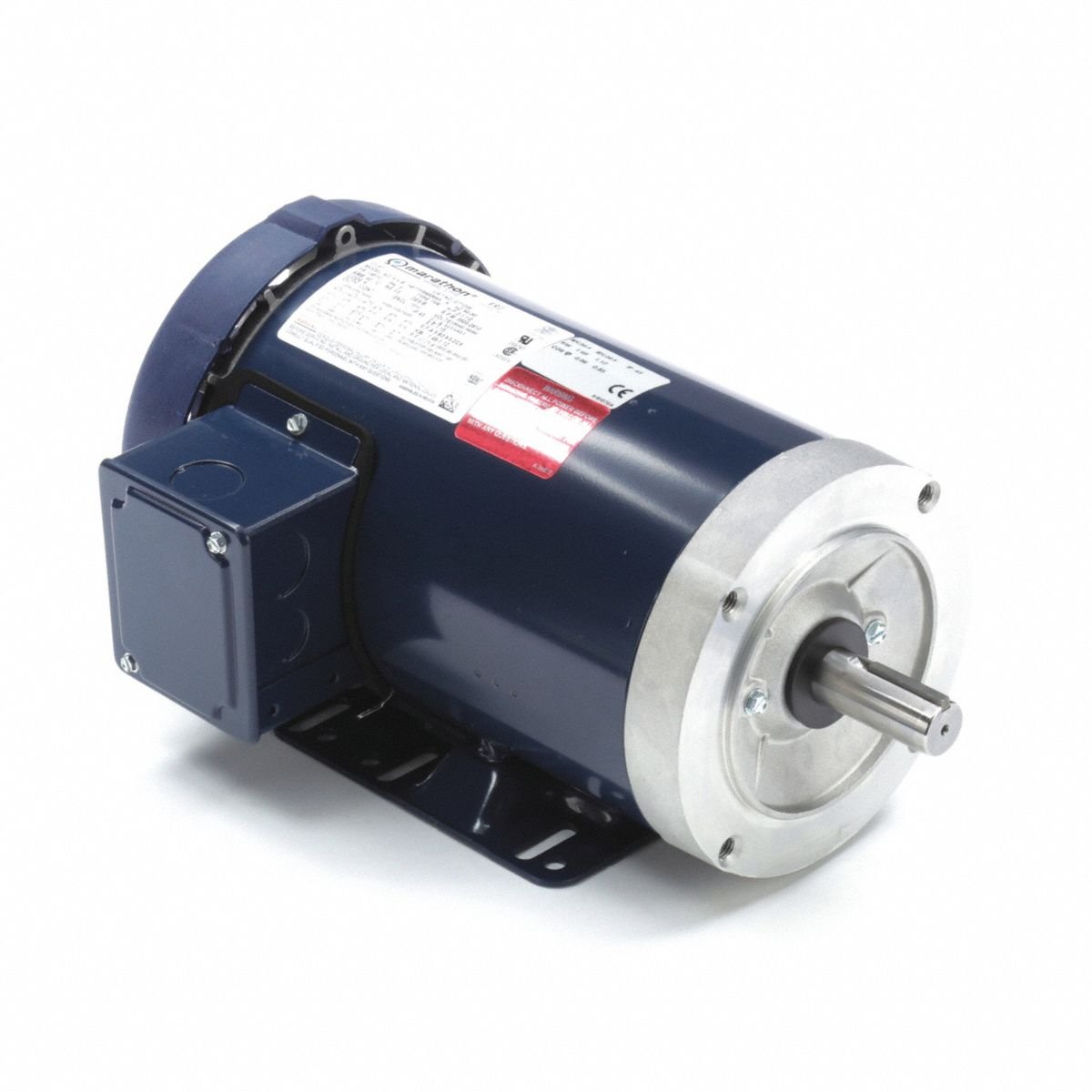

LEESON General Purpose Motor: C-Face/Rigid Base Mount, Totally Enclosed Fan Cooled, 2 hp, 3,500 RPM

Specifications & Compliance

Manufacturer #

145TTFR6009

Brand

LEESON

Nameplate Horsepower @ 60 Hz

2 hp

Nameplate RPM @ 60 Hz

3,500 RPM

Frame Size

145TC

Nameplate Voltage @ 60 Hz

230/460V AC

Full Load Current @ 60 Hz

5.0/2.5 A

Motor Enclosure

TEFC

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1.15

Output Shaft (Dia x L)

7/8 in x 2-1/8 in

Frame Family

NEMA 140

Motor Enclosure Type

Totally Enclosed Fan Cooled

Mounting Type

Rigid Base; C-Face
