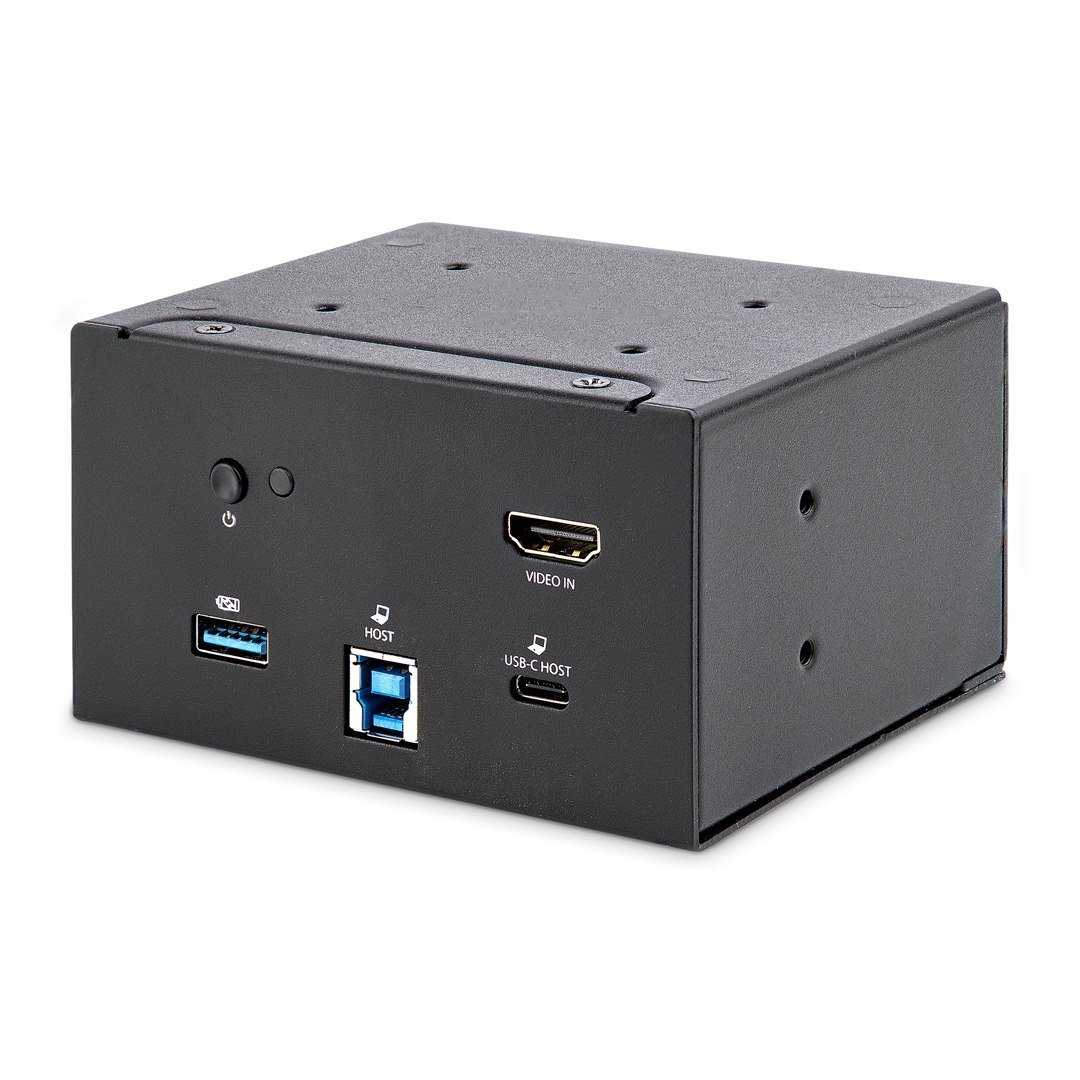

Laptop Docking Module for Conference Table Connectivity Box - TAA

Laptop Docking Module for Conference Table Connectivity Box - TAA

$174.99

Boardroom Docking Station | 4K HDMI® | USB-C™ and USB-A | USB-C Power Delivery

SKU: MOD4DOCKACPD Category:

Specifications & Compliance

UPC
065030871075
Brand
StarTech.com
Included in Package
1 - docking station module, 1 - universal power adapter, 3 - power cords (NA, EU, UK), 1 - USB-A to USB-B cable, 1 - USB-C cable, 1 - mounting bracket, 4 - mounting bracket screws (M5 x 20 mm), 8 - module screws (#6-32 x 3/16"), 1 - quick-start guide
Shipping (Package) Weight
4.6 lb [2.1 kg]
Weight of Product
20.8 oz [588.0 g]
Product Length
4.7 in [12.0 cm]
Product Width
3.7 in [94.0 mm]
Product Height
2.4 in [61.0 mm]
Package Depth
8.5 in [21.5 cm]
Package Width
10.1 in [25.6 cm]
Package Height
4.1 in [10.3 cm]
Color
Black
Warranty
2 Years
Connector 1
HDMI
Connector 1 (Quantity)
3
Package Quantity
1
Connector 2
USB-A (7.5W Power Only)
Connector 2 (Quantity)
1
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 65°C (-4°F to 149°F)
Humidity
20~80% RH
Material
Aluminum and Plastic
Maximum Data Transfer Rate
5 Gbps (USB 3.0)<br /> 2 Gbps (Ethernet; Full-Duplex)
Industry Standards
USB Power Delivery Specification Rev. 2.0 <br> USB Battery Charging Specification Rev. 1.2 <br> IEEE 802.3, IEEE 802.3u, IEEE 802.3ab <br> USB 3.0 - Backward compatible with USB 2.0 and 1.1
Power Source
AC Adapter Included
Chipset ID
DisplayLink - DL-6950<br>Genesys Logic - GL850G<br>Texas Instruments - TPS65982<br>Parade Technologies - PS176<br>VIA Labs - VL813<br>Realtek - RTL8153
Special Notes
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode., 4K resolution is supported. A 4K-capable display is required to achieve 4Kx2K resolution, If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included), USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps, The dock connects to the USB-C port on your laptop. The dock can also be connected to the USB-A port on laptops using a USB-B to A cable (included), but Power Delivery to charge your laptop is not available through USB-A, DisplayLink drivers are required for connecting your USB-A laptop to the USB-B port on the module. If you’re laptop doesn’t have the proper drivers installed and you’re unable to download and install the drivers, you can connect your laptop directly to the HDMI port to access the room’s HDMI display.
Power Delivery
60W
Input Voltage
100 - 240 AC
Output Voltage
20V DC
Connector 3
USB-A (5Gbps, 4.5W)
Connector 3 (Quantity)
3
Power Consumption
120W
LED Indicators
1 - Power
Bus Type
USB-C, USB 3.2 Gen 1 (5Gbps)
Input Current
2 A
Output Current
6
Type and Rate
USB 3.0 (5Gbps)
Maximum Digital Resolutions
3840 x 2160p (4K) @ 30Hz
Plug Type
N
Compatible Networks
10/100/1000 Mbps
Center Tip Polarity
Positive
Connector 4
3.5mm (3 Conductors, TRS)
Connector 4 (Quantity)
2
Supported Resolutions
3840x2160 (4K) 30Hz (HDMI and DP Inputs Only)<br> 2560x1600 60Hz (HDMI and DP Inputs Only)<br> 1920x1200 60Hz (HDMI and DP Inputs Only)<br> 1920x1080 (1080p) 60Hz (Maximum VGA Input)<br> 1280x720 (720p) 60Hz <br><br> **Lower resolutions and refresh rates, not stated but below the maximum, may also be supported
UASP Support
Yes
Connector 5
RJ-45
Connector 5 (Quantity)
1
Auto MDIX
Yes
Full Duplex Support
Yes
Fast-Charge Port(s)
Yes
Connector 6
USB-C (5Gbps, 4.5W)
Connector 6 (Quantity)
1
Displays Supported
1
4K Support
Yes
Connector 7
USB-B (5Gbps, 4.5W)
Connector 7 (Quantity)
1

Questions & Answers

How do I install my network card in Windows Vista, Windows 7, Windows 8, Windows 10, or Windows 11? (.exe method)
To install your network card in Windows, download the latest driver package from StarTech.com, extract the files, run Setup.exe as an administrator, and restart the computer if prompted. Explanation: Before installing the network card, ensure that Windows is fully updated with the latest service packs, security updates, and feature updates available for your operating system. To install the driver: Download the latest driver package from the StarTech.com Drivers & Downloads page. Extract the contents of the downloaded ZIP file. Open the folder for your version of Windows, if applicable. Right-click Setup.exe and select Run as administrator . Follow the on-screen instructions to install the driver. Restart the computer if prompted. After Windows restarts, the operating system will complete the driver installation and the network card will be ready to use. Note: If Run as administrator is not available, ensure that you are running Setup.exe from the extracted folder rather than directly from the ZIP file.

What DC barrel connector power plug types do StarTech.com products use, and what are their dimensions?
StarTech.com DC barrel connector plug types are defined in the “Plug Type” field of the technical specifications, using a letter code that specifies the connector’s outer diameter (OD) and inner diameter (ID) in millimeters for power adapter compatibility. Explanation: In StarTech.com technical specifications, the “Plug Type” field is a standardized identifier for the exact DC barrel connector size required to power a product. Each plug type is assigned a letter code that corresponds to a specific combination of outer diameter (OD) and inner diameter (ID), measured in millimeters. Common DC barrel plug type dimensions Plug Type OD ID A 2.35 mm 0.7 mm B 4.0 mm 1.7 mm C 4.75 mm 1.7 mm H 3.4 mm 1.3 mm L 5.0 mm 2.5 mm M 5.5 mm 2.1 mm N 5.5 mm 2.5 mm The DC barrel connector plug type must match both the outer diameter and inner diameter exactly. A mismatch between the StarTech.com product requirement and the power adapter connector can prevent proper fit or stable power delivery, which may result in device startup failure or intermittent operation. The plug type defines only the physical connector size. The plug type does not define electrical power requirements such as voltage, current, or polarity. The power adapter used with a StarTech.com product must match the product’s specified electrical requirements. Using an incompatible power adapter can cause device malfunction or permanent damage. This standardized DC barrel connector plug type system enables IT professionals and procurement teams to verify connector dimensions, ensure power adapter compatibility, standardize hardware deployments, and identify the correct replacement power supply for StarTech.com products.
