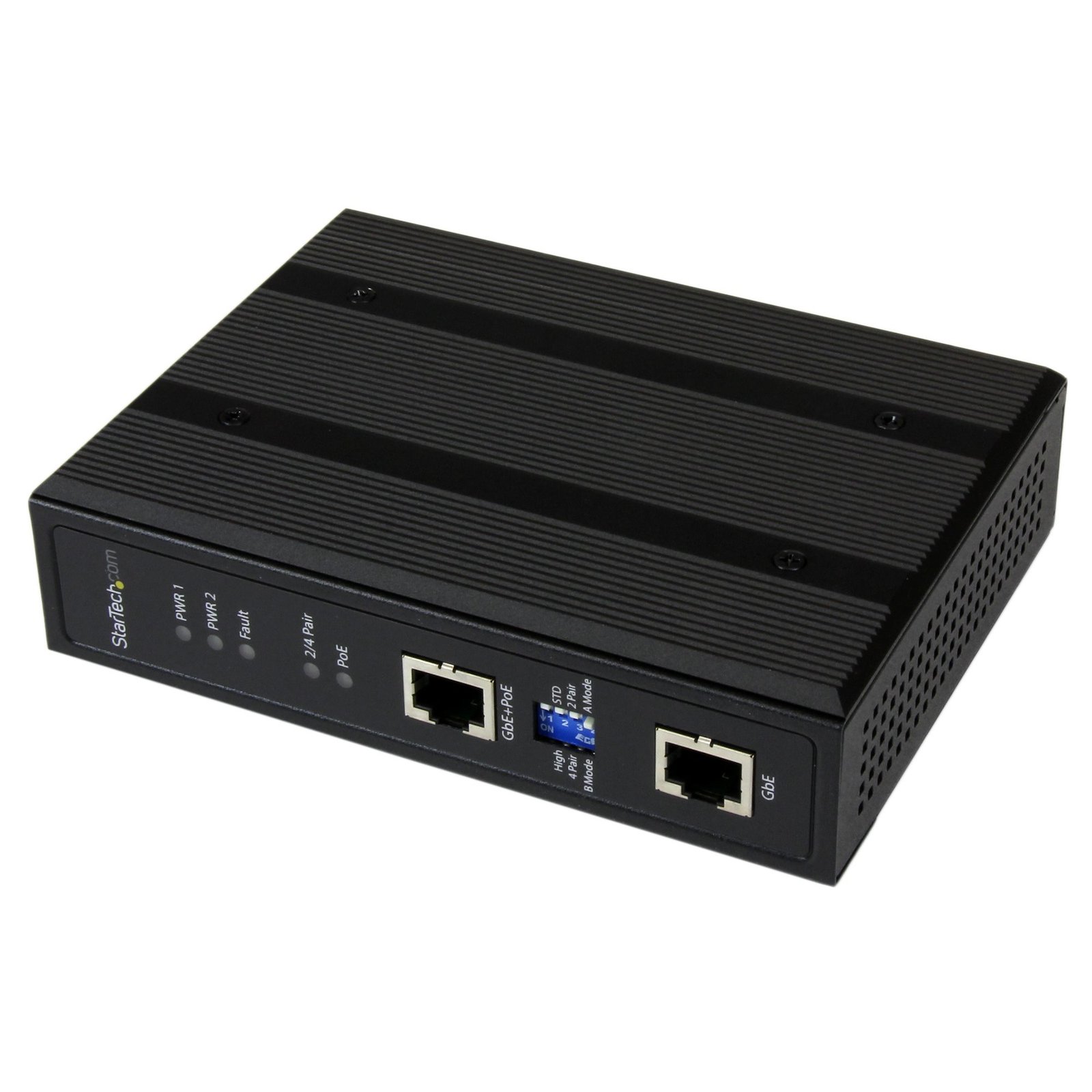

Industrial 1 Port Gigabit PoE+ Power over Ethernet Injector (30W) w/ Non-Standard PoE Boost (60W) and Redundant Power

Industrial 1 Port Gigabit PoE+ Power over Ethernet Injector (30W) w/ Non-Standard PoE Boost (60W) and Redundant Power

$168.99

Supply 30W power and data connectivity to a standard Gigabit PoE+ device over Ethernet cabling – Wall and DIN Rail Mountable

SKU: POEINJ1GI Category:

Specifications & Compliance

UPC
065030855334
Brand
StarTech.com
Included in Package
1 - Gigabit PoE+ Injector, 1 - DIN Rail Kit, 1 - Wall Mount Bracket, 1 - Terminal Block, 1 - Instruction Manual
Shipping (Package) Weight
31.0 oz [878 g]
Weight of Product
22.5 oz [637 g]
Product Length
5.6 in [14.2 cm]
Product Width
4.2 in [10.6 cm]
Product Height
1.5 in [39 mm]
Package Depth
7.3 in [18.5 cm]
Package Width
9.1 in [23 cm]
Package Height
3.0 in [75 mm]
Color
Black
Warranty
2 Years
Connector 1
RJ-45
Connector 1 (Quantity)
2
Package Quantity
1
Connector 2
Terminal Block (6 Wire)
Connector 2 (Quantity)
1
Operating Temperature
0°C to 60°C (32°F to 140°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
5~95% RH (Non-Condensing)
Material
Steel
Maximum Data Transfer Rate
1Gbps
Industry Standards
IEEE 802.3af PoE, IEEE 802.3at PoE+<br /> IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T
Power Source
Terminal Block
Input Voltage
20 ~ 57 DC
LED Indicators
2 - Power, 1 - Fault, 1 - 2/4 Pair, 1 - PoE
Number of Ports
1
General Specifications
Power Output: <br /> Standard PoE+: 30 Watts max <br /> Non-Standard PoE: 60 Watts max
Max Distance
100m [328ft]
Surge Protection
EN61000-4-2 (ESD)<br /> EN61000-4-4 (EFT) <br /> EN61000-4-5 (Surge)
Patents and Licenses
The following patents are licensed for this product. This list might not be all inclusive.<br> • United States Patent No. 5,406,260 (expired)<br> • United States Patent No. 6,650,622<br> • United States Patent No. 7,457,250<br> • United States Patent No. 8,155,012<br> • United States Patent No. 8,902,760<br> • United States Patent No. 8,942,107<br> • United States Patent No. 9,019,838<br> • United States Patent No. 9,049,019<br> • United States Patent Application No. 14/695,456<br> • United States Patent Application No. 14/726,940
Regulatory Approvals
EN61000-6-2 <br /> EN61000-4-3 (RS)<br /> EN61000-4-6 (CS) <br /> EN61000-4-8 (PMF, Magnetic Field) <br /> EN50121-4 <br /> EN610000-6-2 <br /> EN61000-6-4<br /> <br /> Shock: IEC 60068-2-27<br /> Freefall: IEC 60068-2-32<br /> Vibration: IEC 60068-2-6

Questions & Answers

The fault LED is on but the device is working. What do I do?
If an extra power source is not connected to either the PWR1 or PWR2 terminal blocks on the POEINJ1G1, the fault LED lights up, regardless of whether or not the unit is working properly. The fault LED is lit up because the POEINJ1GI does not detect a redundant power source. To avoid the fault LED being lit up, connect a power source to both PWR1 and PWR2.
