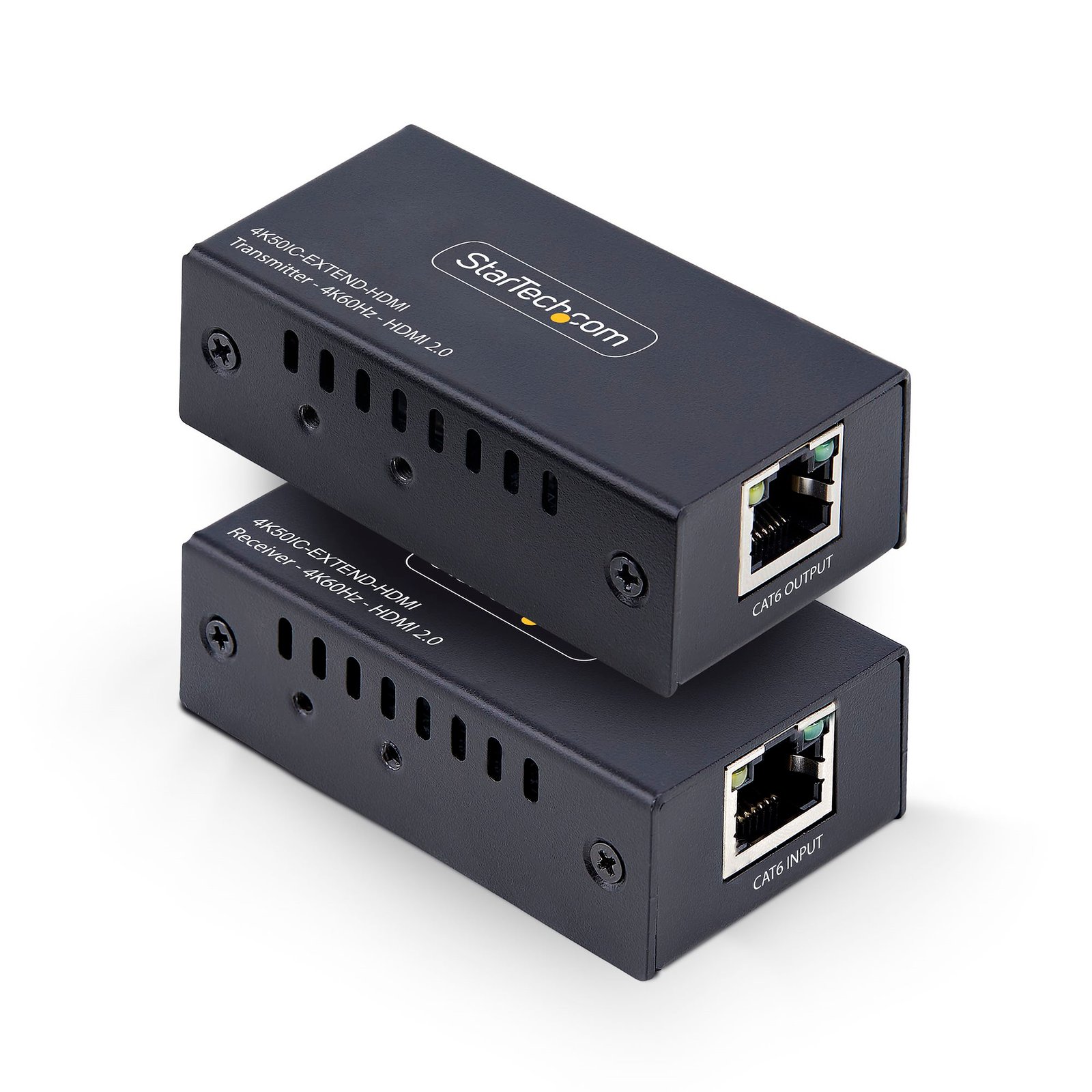

HDMI Extender Over CAT5e/CAT6, 4K 60Hz, Up to 200ft (60m), Transmitter and Receiver Kit, Power Over Cable, Compact Form Factor
$143.49
Extend a 4K 60Hz HDMI signal over CAT6/6A cabling for distances of up to 200ft (60m) with Power over Cable
Specifications & Compliance
- UPC
- 065030918299
- Brand
- StarTech.com
- Included in Package
- 1 - HDMI Transmitter, 1 - HDMI Receiver, 1 - Mounting Bracket Kit, 1 - Universal Power Adapter (NA/EU/UK/ANZ), 1 - Product Documentation
- Shipping (Package) Weight
- 12.8 oz [364 g]
- Weight of Product
- 6.2 oz [177 g]
- Product Length
- 2.6 in [66 mm]
- Product Width
- 1.4 in [36 mm]
- Product Height
- 0.8 in [20 mm]
- Package Depth
- 5.9 in [15 cm]
- Package Width
- 4.6 in [11.7 cm]
- Package Height
- 3.0 in [77 mm]
- Color
- Black
- Warranty
- 2 Years
- Connector 1
- HDMI
- Connector 1 (Quantity)
- 1
- Connector 2
- USB-C (100W PD Only)
- Connector 2 (Quantity)
- 1
- Operating Temperature
- -20°C to 60°C (-4°F to 140°F)
- Storage Temperature
- -30°C to 70°C (-22°F to 158°F)
- Humidity
- 0% - 90% RH (non-condensing)
- Material
- Metal
- Power Source
- AC Adapter Included
- Input Voltage
- 100 - 240 AC
- Output Voltage
- 5 DC
- Connector 3
- RJ-45
- Connector 3 (Quantity)
- 1
- Power Consumption
- 10W
- Number of Ports
- 1
- Input Current
- 0.3A
- Output Current
- 2
- Audio
- Yes
- Plug Type
- USB Type-C (24 pin) USB Power Delivery Only
- Connector 4
- HDMI
- Connector 4 (Quantity)
- 1
- Number of Displays
- 1
- AV Input
- HDMI
- AV Output
- HDMI
- Wide Screen Supported
- Yes
- Supported Resolutions
- 3840x2160 @ 60hz <br> 2560x2048 @ 60hz <br> 2560x1920 @ 60hz <br> 2560x1600 @ 60hz <br> 2560x1440 @ 60hz <br> 2048x1536 @ 60hz <br> 2048x1152 @ 60hz <br> 1920x1440 @ 60hz <br> 1920x1200 @ 60hz <br> 1920x1080 @ 60hz <br> 1856x1392 @ 60hz <br> 1792x1344 @ 60hz <br> 1680x1050 @ 60hz <br> 1600x1200 @ 60hz <br> 1600x900 @ 60hz <br> 1440x900 @ 60hz <br> 1400x1050 @ 60hz <br> 1366x768 @ 60hz <br> 1360x768 @ 60hz <br> 1280x1024 @ 60hz <br> 1280x960 @ 60hz <br> 1280x800 @ 60hz <br> 1280x768 @ 60hz <br> 1280x720 @ 60hz <br> 1280x600 @ 60hz <br> 1152x864 @ 60hz <br> 1024x768 @ 60hz <br> 800x600 @ 60hz <br> <br> <i>Other resolutions and refresh rates may be supported</i>
- Maximum Cable Length
- 196.9 ft [60 m]
- Audio Specifications
- HDMI - 7.1 Channel Audio
- HDR Support
- HDR
- Connector 5
- RJ-45
- Connector 5 (Quantity)
- 1
- Rack-Mountable
- No
- Cabling
- Cat 5e UTP or better
