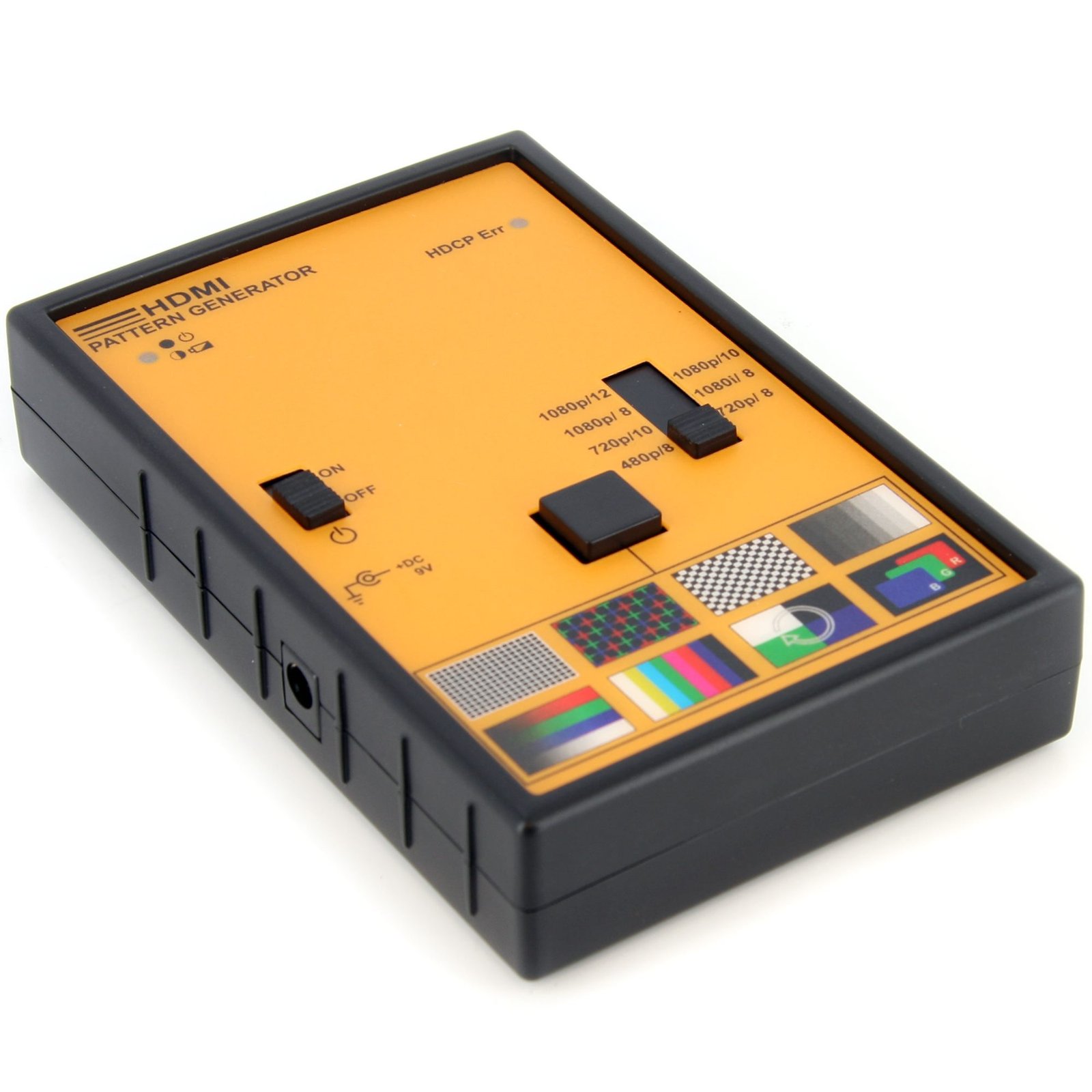

HDMI / DVI Video Test Pattern Signal Generator

Specifications & Compliance

UPC

065030841894

Brand

StarTech.com

Included in Package

1 - HDMI Test Pattern Generator, 1 - 9V Battery, 1 - HDMI Cable, 1 - Power Adapter, 1 - Instruction Manual

Shipping (Package) Weight

28.8 oz [815 g]

Weight of Product

5.3 oz [150 g]

Product Length

5.2 in [13.2 cm]

Product Width

3.4 in [87 mm]

Product Height

1.1 in [28 mm]

Package Depth

3.5 in [90 mm]

Package Width

8.7 in [22 cm]

Package Height

8.5 in [21.5 cm]

Warranty

2 Years

Connector 1

HDMI

Connector 1 (Quantity)

1

Package Quantity

1

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-20°C to 85°C (-4°F to 185°F)

Humidity

0%~95%

Material

Plastic

Industry Standards

High Speed HDMI®, HDCP 1.2

Power Source

AC Adapter Included

Input Voltage

115V AC

Output Voltage

9V DC

LED Indicators

1 - Power indicator (Solid - power on, Flashing - low battery), 1 - HDCP Error indicator (On indicates HDCP verification fail)

Input Current

15mA

Output Current

0.6

Plug Type

M

Center Tip Polarity

Positive

General Specifications

HDCP Test Pattern: Yes, Video Test Patterns: 8

AV Output

HDMI, DVI

Supported Resolutions

1080p (60Hz – 12 bit), 1080p (60Hz – 10 bit), 1080p (60Hz – 8 bit), 1080i (60Hz – 8 bit), 720p (60Hz – 10 bit), 720p (60Hz – 8 bit), and 480p (60Hz – 8 bit)
