Extreme Networks 10056 Compatible SFP Module - 1000BASE-BX-D - 1 GbE Gigabit Ethernet BiDi Fiber (SMF)

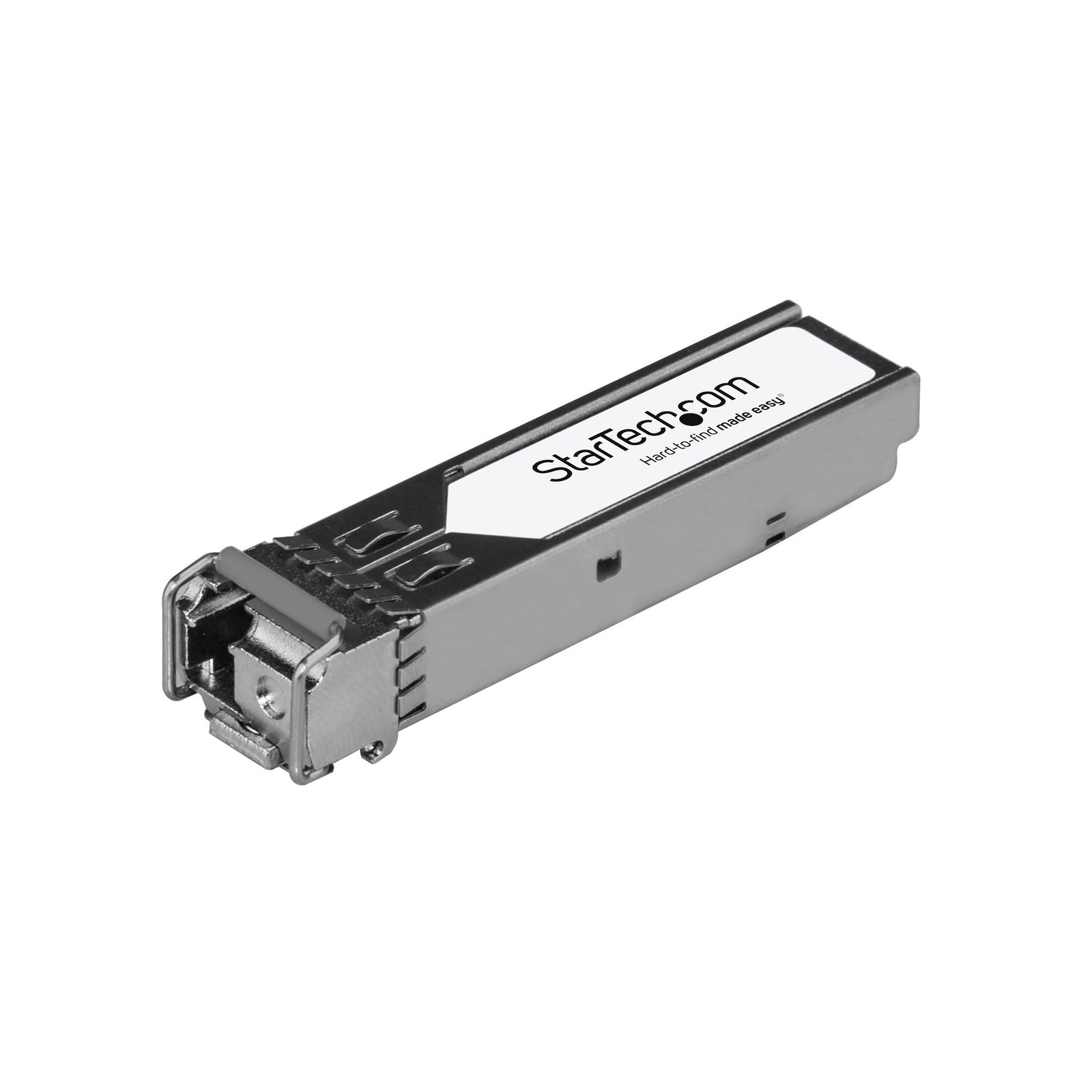

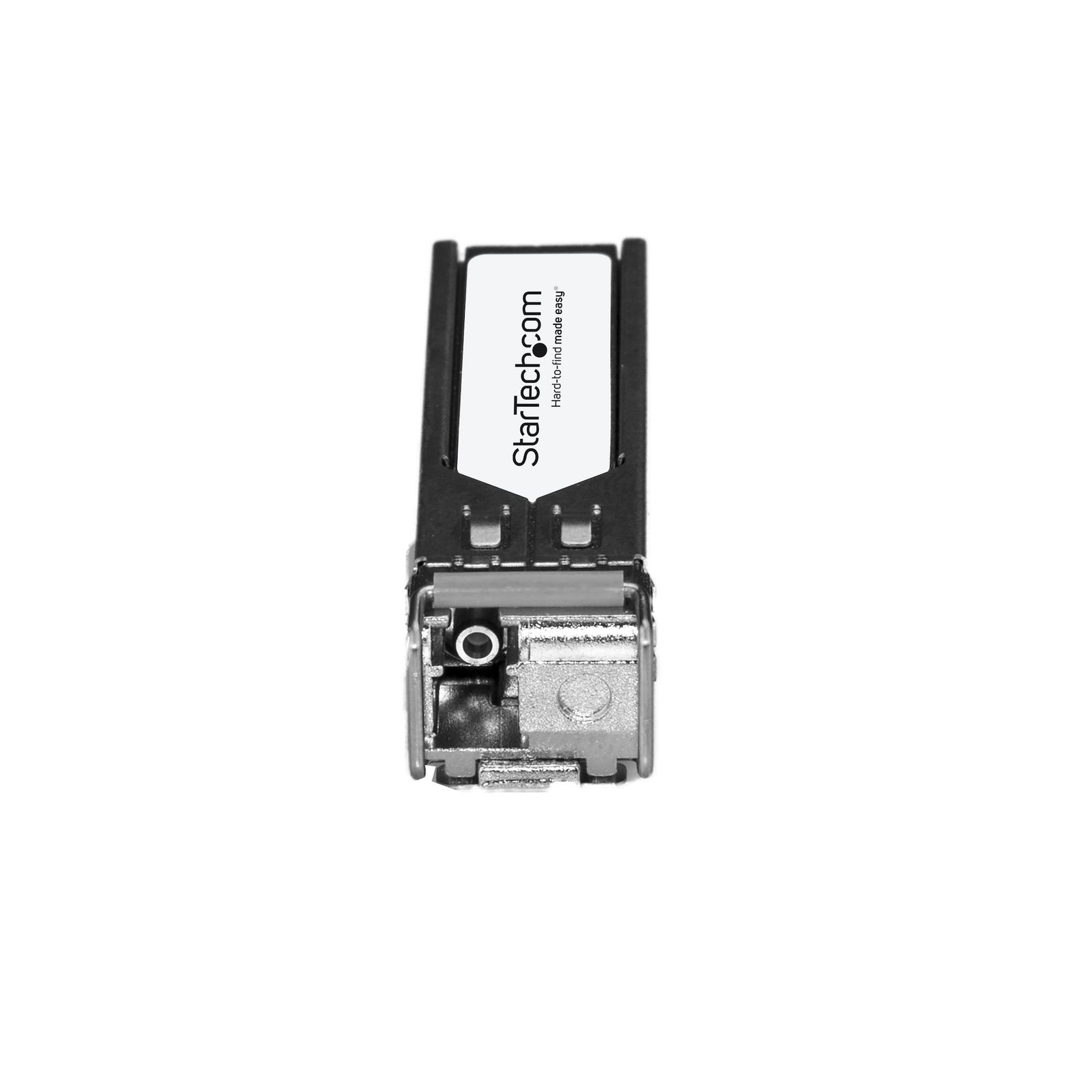

Extreme Networks 10057H Compatible SFP Module - 1000BASE-BX-U - 1 GbE Gigabit Ethernet BiDi Fiber (SMF)

$16.99

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

SKU: 10057H-ST Category:

Specifications & Compliance

UPC
065030885225
Brand
StarTech.com
Included in Package
1 - SFP Transceiver
Shipping (Package) Weight
1.8 oz [50 g]
Weight of Product
0.7 oz [20 g]
Product Length
0.5 in [13.7 mm]
Product Width
2.2 in [56.6 mm]
Product Height
0.5 in [12.5 mm]
Package Depth
3.7 in [94 mm]
Package Width
4.4 in [11.2 cm]
Package Height
1.2 in [30 mm]
Warranty
Lifetime
Connector 1
LC Simplex Fiber
Connector 1 (Quantity)
1
Package Quantity
1
Maximum Data Transfer Rate
1.00 Gbps
Industry Standards
IEEE 802.3z 1000BASE-BX
Power Consumption
< 1.3W
MTBF
286,217,327 hours
Compatible Networks
1000 Mbps (1 Gbps)
Fiber Type
Single Mode
Wavelength
1310nmTx/1490nmRx
Compatible Brand
Extreme Networks
Max Transfer Distance
10 km (6.2 mi)
Fiber Operating Mode
Full-Duplex
Digitial Diagnostics Monitoring Support
Yes
OEM Part Number
10057H

Questions & Answers

Why is my SFP Transceiver not working with my Network Device?
Ensure the Network Device is running a compatible Firmware Version on a compatible Operating System . Please consult the manufacturer of the Network Device for more information regarding the minimum required or recommended system software.

What is the difference between UPC and APC fiber connectors, and which type do StarTech.com fiber products use?
UPC and APC connectors differ in their end-face polish, and StarTech.com fiber products use UPC connectors. Explanation: UPC (Ultra Physical Contact) and APC (Angled Physical Contact) are fiber connector types that differ in how the fiber end face is polished: UPC connectors: The fiber end face is polished flat with a slight dome shape to ensure direct core contact and low insertion loss. APC connectors: The fiber end face is polished at an 8-degree angle to reduce back reflection in high-performance applications. UPC and APC connectors are not compatible and should not be mated. The angled surface of an APC connector prevents proper alignment with a UPC connector, which can result in high signal loss or a failed connection. StarTech.com fiber products use UPC connectors, so they must be connected to other UPC-compatible fiber interfaces to ensure proper operation.
