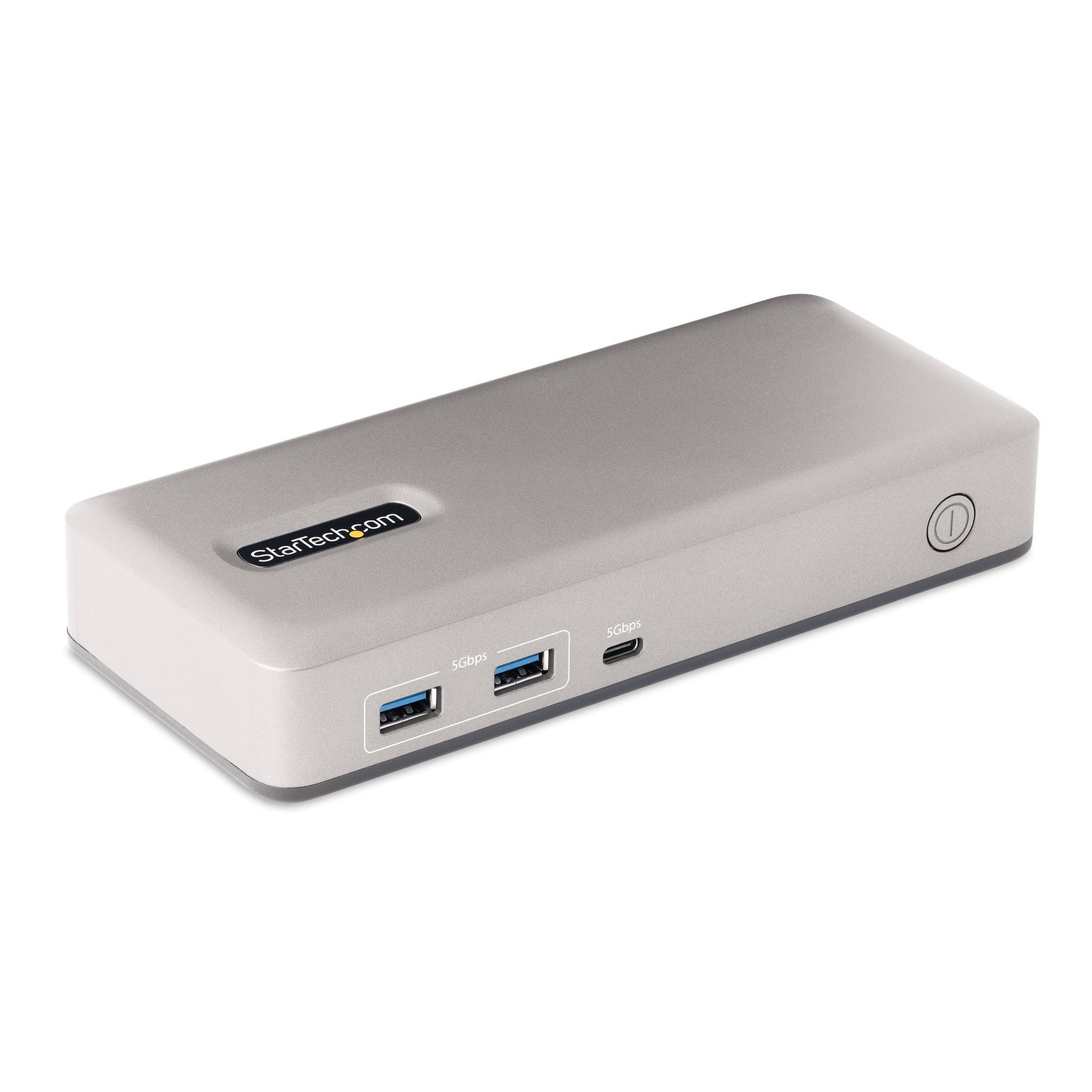

Dual-Monitor USB-C Docking Station, DisplayPort & HDMI or VGA, Multi Monitor Dock up to 4K 60Hz - USB 3.2/3.1 (5Gbps) Type-C Dock - 7x USB Hub, 85W PD, Windows & ChromeOS - TAA

Specifications & Compliance

UPC

065030893985

Brand

StarTech.com

Included in Package

1 - USB-C Docking Station, 1 - 3.3ft [1m] USB-C Host Cable (Screw Locking), 1 - Universal Power Adapter (North America), 1 - Quick-Start Guide

Shipping (Package) Weight

2.2 lb [1.0 kg]

Weight of Product

9.7 oz [275.0 g]

Product Length

3.1 in [80.0 mm]

Product Width

7.3 in [18.5 cm]

Product Height

1.2 in [31.0 mm]

Package Depth

8.6 in [21.9 cm]

Package Width

4.3 in [10.9 cm]

Package Height

5.2 in [13.1 cm]

Color

Space Gray

Warranty

3 Years

Connector 1

HDMI

Connector 1 (Quantity)

1

Connector 2

DisplayPort

Connector 2 (Quantity)

1

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 70°C (-4°F to 185°F)

Humidity

0~95% RH (Non-condensing)

Material

Plastic

Maximum Data Transfer Rate

5 Gbps

Industry Standards

DisplayPort 1.4 Alt Mode (USB-C Host Port), DisplayPort 1.4, HDMI 2.0b, USB 3.2 Gen 1 (5Gpbs), USB Power Delivery 3.0

Power Source

AC Adapter Included

Chipset ID

Realtek - RTD2142, Realtek - RTS5450M, Realtek - RTS5451, Realtek - RTS5411S, Terminus - FE1.1s

Special Notes

USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps)., Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.

Power Delivery

85W

Input Voltage

100 - 240 AC

Output Voltage

20V DC

Connector 3

VGA

Connector 3 (Quantity)

1

Power Consumption

135W

LED Indicators

1 - Power LED

Interface

USB 3.2 Gen 1 (5Gbps)

Bus Type

USB-C

Input Current

2.37A

Output Current

6.75

Type and Rate

USB 5Gbps

System and Cable Requirements

For a multi-monitor configuration, the computer must support MST. If the computer doesn't support MST, both displays will show the same video signal.

Maximum Digital Resolutions

<b><u>DisplayPort:</u></b><br> <b>Single Display:</b> 4K (3840 x 2160p) at 60Hz<br> <b>Dual Display:</b> 2560 x 1440 at 60Hz <br><br> <b><u>HDMI:</u></b><br> <b>Single Display:</b> 4K (3840 x 2160p) at 60Hz<br> <b>Dual Display:</b> 2560 x 1440 at 60Hz <br><br> <b><u>VGA:</u></b><br> <b>Dual or Single Display:</b> 1080p (1920x 1200/1080p) at 60Hz

Host Connector 1

USB-C (5Gbps, 4.5W)

Host Connector 1 (Quantity)

1

Plug Type

CP (OD:7.4/ID:5.1/CPD:0.6)

Connector 4 (Quantity)

1

Number of Displays

2

UASP Support

Yes

Connector 5

USB-A (5Gbps, 4.5W)

Connector 5 (Quantity)

2

Fast-Charge Port(s)

No

Connector 6

USB-A (480Mbps, 2.5W)

Connector 6 (Quantity)

4

Displays Supported

2

4K Support

Yes

Compatible Lock Slot

Kensington Standard Slot (K-Slot), Kensington Nano Slot
