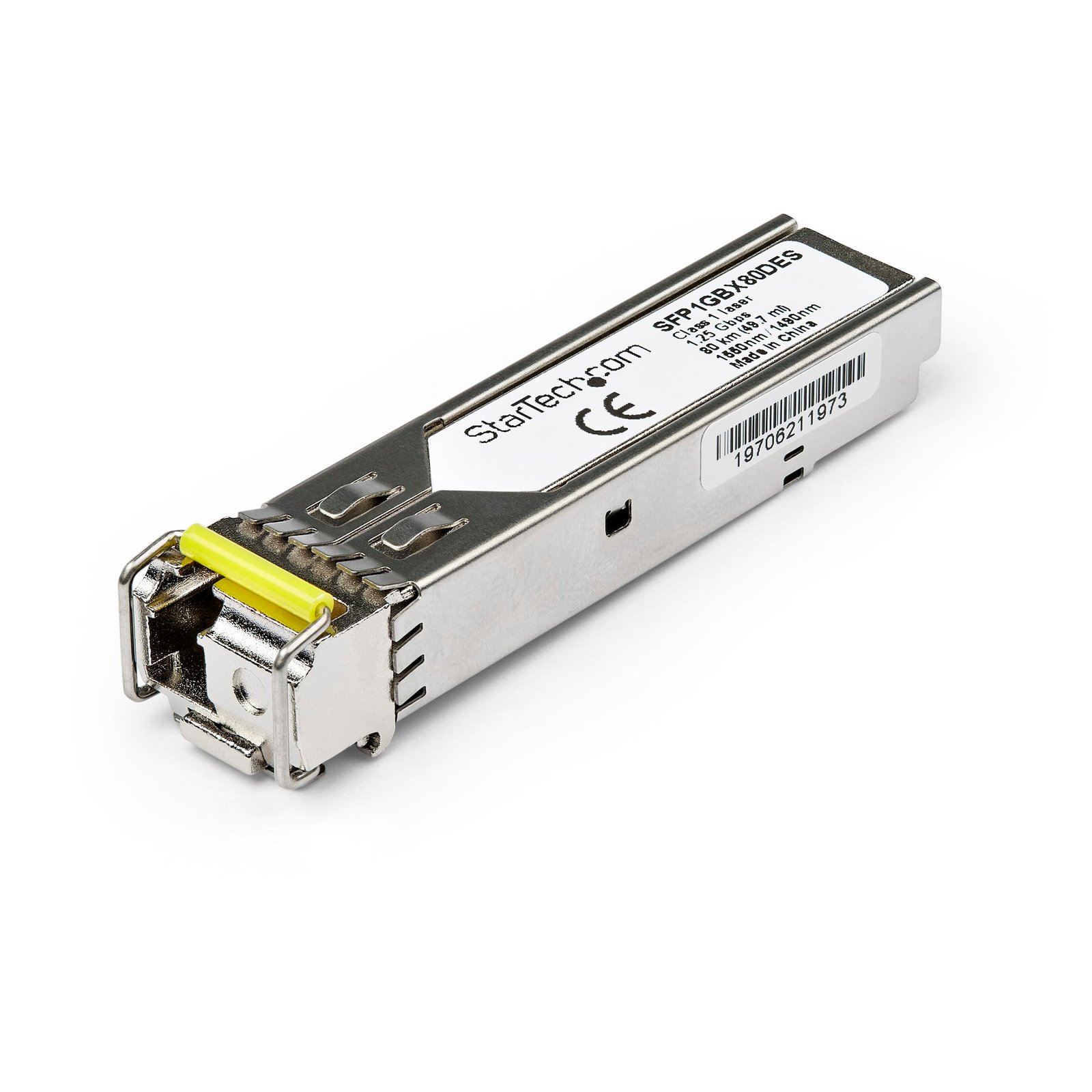

Dell EMC SFP-1G-BX80-D Compatible SFP Module - 1000BASE-BX-D - 1 GbE Gigabit Ethernet BiDi Fiber (SMF)

Dell EMC SFP-1G-BX80-D Compatible SFP Module - 1000BASE-BX-D - 1 GbE Gigabit Ethernet BiDi Fiber (SMF)

$31.99

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 80 km (49.7 mi) | Lifetime Warranty

SKU: SFP1GBX80DES Category:

Specifications & Compliance

UPC
065030883351
Brand
StarTech.com
Included in Package
1 - SFP Transceiver
Shipping (Package) Weight
1.8 oz [50 g]
Weight of Product
1.1 oz [30 g]
Product Length
0.5 in [13.9 mm]
Product Width
2.3 in [58.4 mm]
Product Height
0.5 in [12.6 mm]
Package Depth
3.6 in [92 mm]
Package Width
4.4 in [11.2 cm]
Package Height
1.3 in [32 mm]
Warranty
Lifetime
Package Quantity
1
Material
Steel
Maximum Data Transfer Rate
1.00 Gbps
Industry Standards
IEEE 802.3 1000BASE-BX80
MTBF
3,713,222 hours
Compatible Networks
1000 Mbps (1 Gbps)
Fiber Type
Single Mode
Wavelength
1550nmTX/1490nmRX
Compatible Brand
Dell EMC
Max Transfer Distance
80 km (49.7 mi)
Fiber Operating Mode
Full-Duplex
Digitial Diagnostics Monitoring Support
Yes
OEM Part Number
SFP-1G-BX80-D

Questions & Answers

What is the difference between UPC and APC fiber connectors, and which type do StarTech.com fiber products use?
UPC and APC connectors differ in their end-face polish, and StarTech.com fiber products use UPC connectors. Explanation: UPC (Ultra Physical Contact) and APC (Angled Physical Contact) are fiber connector types that differ in how the fiber end face is polished: UPC connectors: The fiber end face is polished flat with a slight dome shape to ensure direct core contact and low insertion loss. APC connectors: The fiber end face is polished at an 8-degree angle to reduce back reflection in high-performance applications. UPC and APC connectors are not compatible and should not be mated. The angled surface of an APC connector prevents proper alignment with a UPC connector, which can result in high signal loss or a failed connection. StarTech.com fiber products use UPC connectors, so they must be connected to other UPC-compatible fiber interfaces to ensure proper operation.
