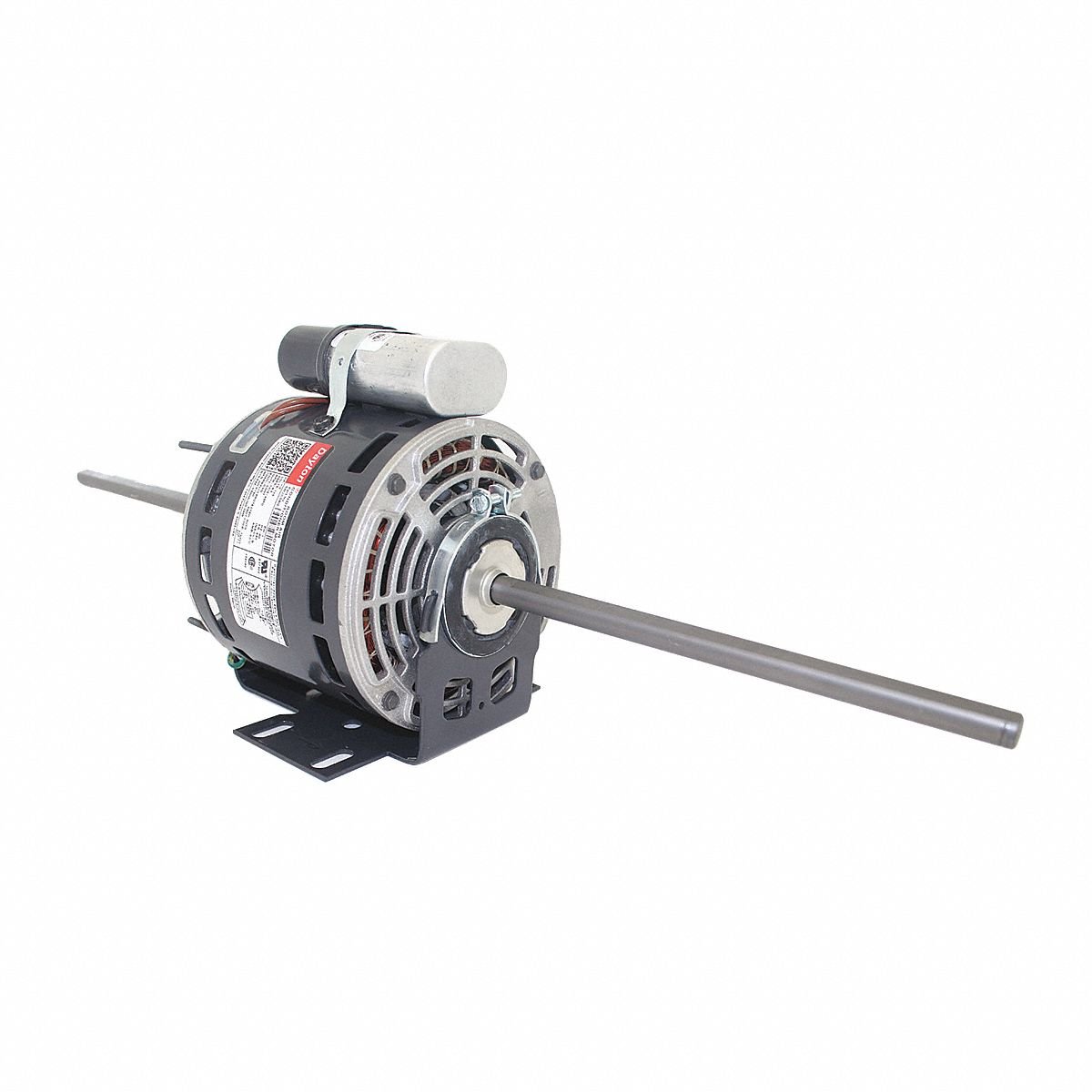

DAYTON Room Air Conditioner Motor: Cradle Base Mount, Permanent Split Capacitor, 1/10 hp Horsepower

Specifications & Compliance

Manufacturer #

5WJC1

Brand

DAYTON

Nameplate Horsepower @ 60 Hz

1/10 hp

Nameplate RPM @ 60 Hz

1,075 RPM

Frame Size

42Y

Nameplate Voltage @ 60 Hz

115V AC

Full Load Amps @ 60 Hz

1.7 A

Motor Enclosure

OAO

Motor Thermal Protection

Auto

Nameplate Service Factor @ 60 Hz

1

Output Shaft (Dia x L)

1/2 in x 10 in

Mounting Type

Cradle Base

Motor Design

Permanent Split Capacitor

Body Diameter

4.9 in

Motor Enclosure Type

Open Air Over

Shaft Diameter

1/2 in

Shaft Length

10 in

Frequency

60 Hz

Motor Shaft Rotation

CW/CCW
