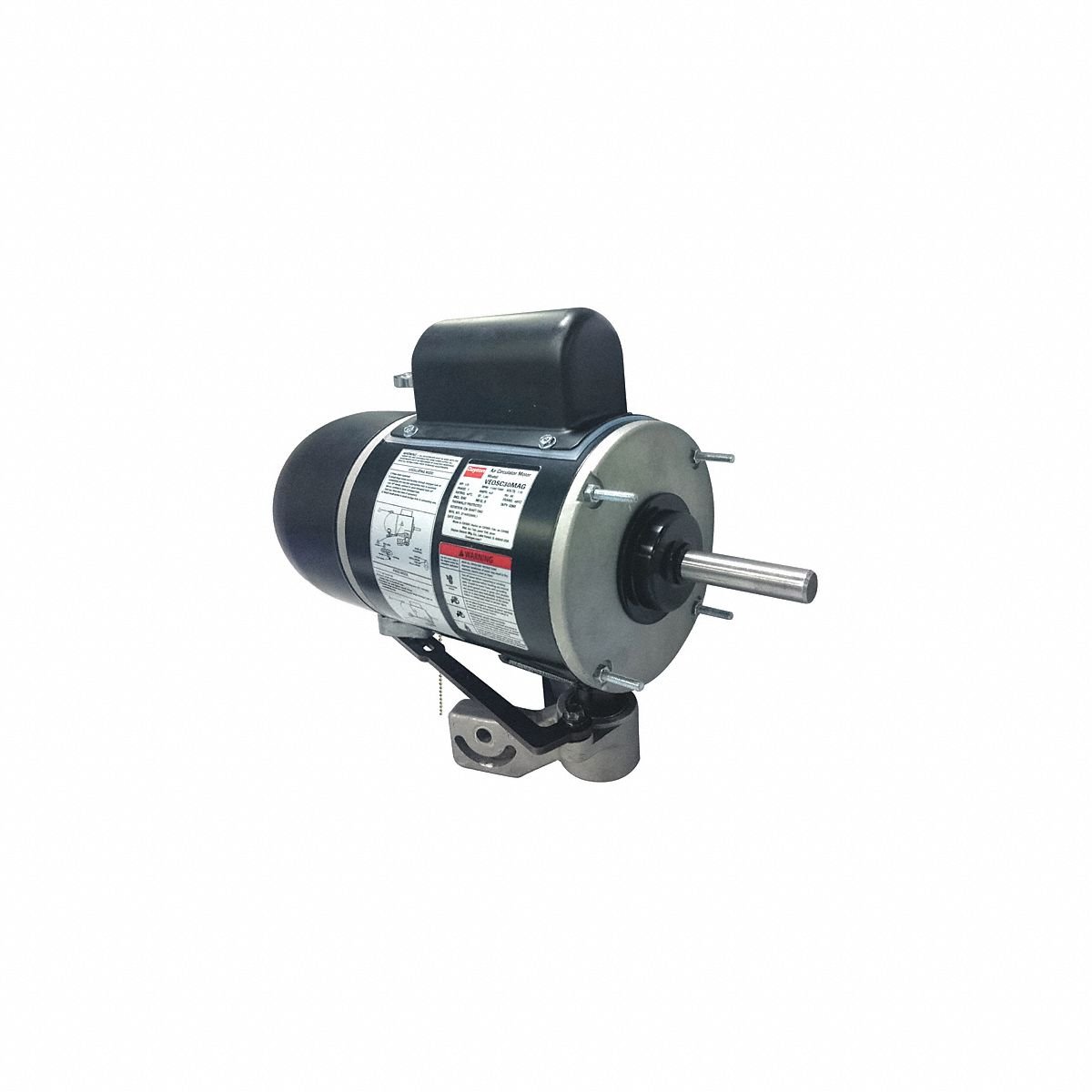

DAYTON Oscillating Fan Motor: Single Phase, Yoke, Permanent Split Capacitor, 1/4 hp Horsepower, Auto

Specifications & Compliance

Manufacturer #

GGS_47323

Brand

DAYTON

Nameplate Horsepower @ 60 Hz

1/4 hp

Nameplate RPM @ 60 Hz

1,100/850 RPM

Frame Size

48YZ

Nameplate Voltage @ 60 Hz

115V AC

Full Load Amps @ 60 Hz

2.8 A

Enclosure Type

TEAO

Motor Thermal Protection

Auto

Nameplate Service Factor @ 60 Hz

1

Shaft Diameter

1/2 in

Shaft Length

3 in

Output Shaft (Dia x L)

1/2 in x 3 in

Phase

Single

Mounting Type

Yoke

Body Diameter

5.7 in

Motor Shaft Rotation

CWSE

Frequency

60 Hz
