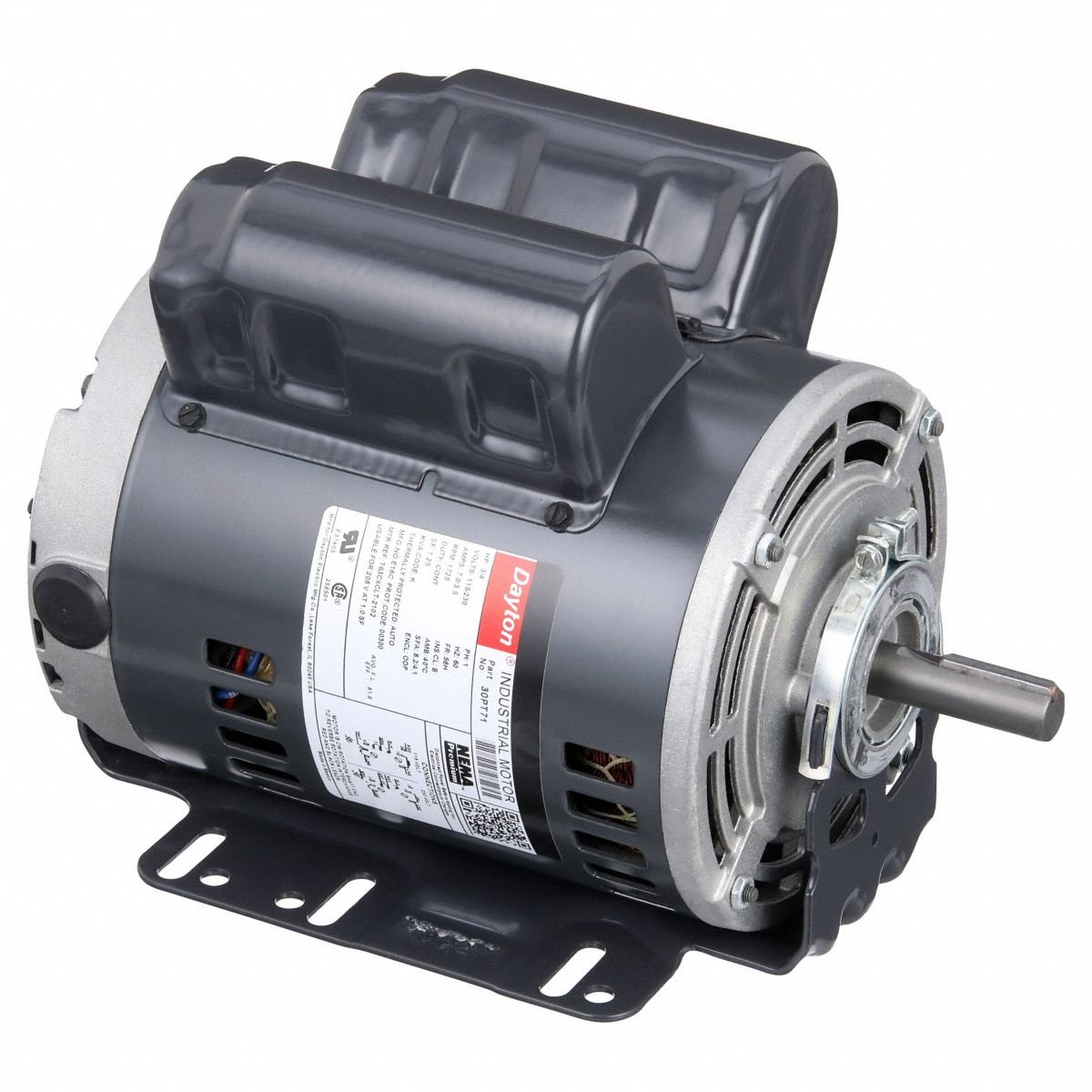

DAYTON General Purpose Motor: Single Phase, 3/4 hp, 115/230V AC, 56H Frame Size, 5/8 in x 1 7/8 in

Specifications & Compliance

Brand

DAYTON

Nameplate Horsepower @ 60 Hz

3/4 hp

Nameplate RPM @ 60 Hz

1,725 RPM

Frame Size

56H

Nameplate Voltage @ 60 Hz

115/230V AC

Full Load Amps @ 60 Hz

7.0/3.5 A

Motor Enclosure Type(Abbreviated)

ODP

Motor Thermal Protection

Auto

Nameplate Service Factor @ 60 Hz

1.25

Output Shaft (Dia x L)

5/8 in x 1-7/8 in

Phase

Single

Frequency

60 Hz

Insulation Class

B

Shaft Diameter

5/8 in

Shaft Length

1-7/8 in

Motor Design

Capacitor-Start/Run

Mounting Type

Cradle Base

Motor Enclosure Type

Open Drip Proof

Motor Shaft Rotation

CW/CCW

Nominal Efficiency

81.8 %

Number of Speeds

1

Efficiency Rating

Premium Efficiency (IE3)
