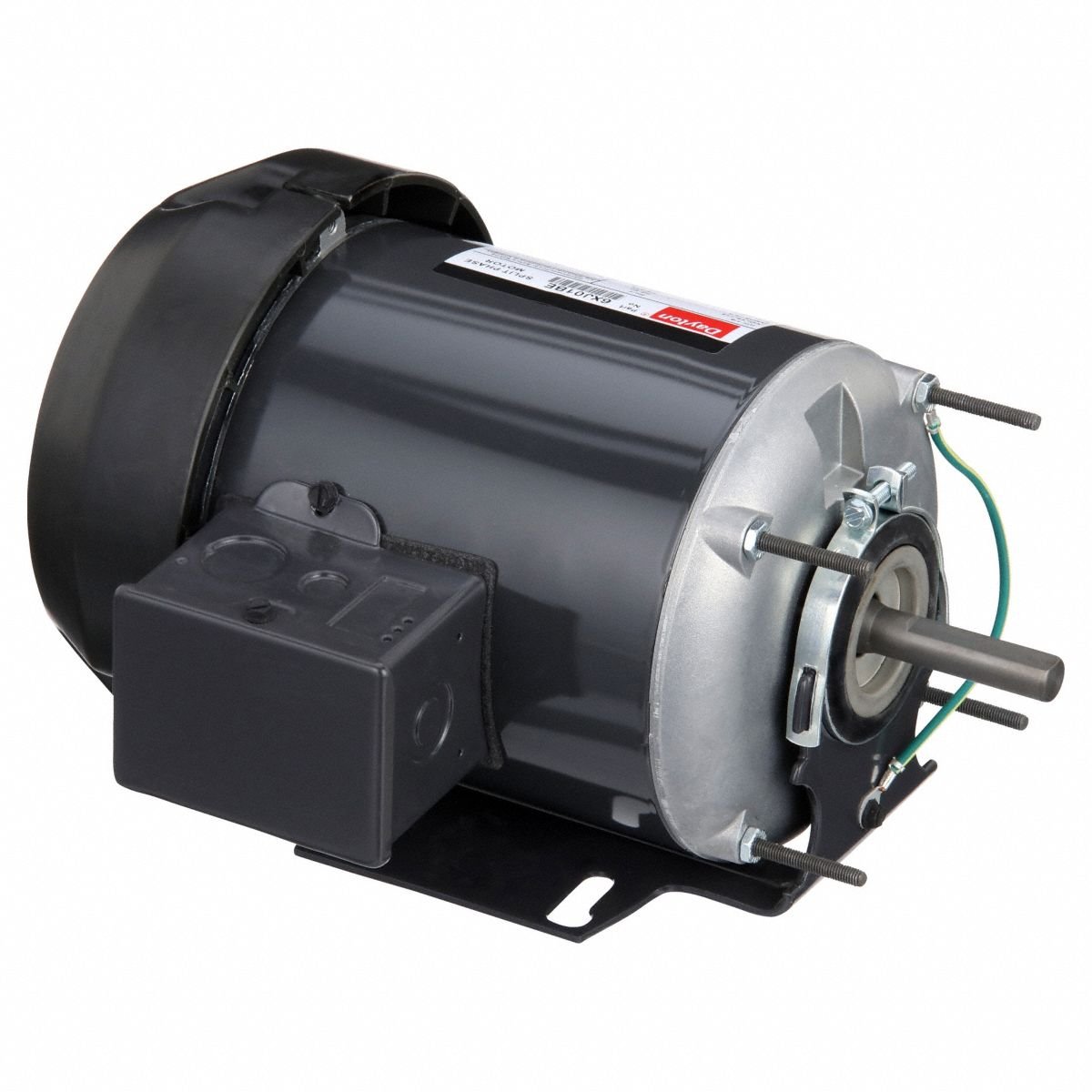

DAYTON General Purpose Motor: Single Phase, 1/8 hp, 115V AC, 48Z Frame Size, 1/2 in x 1 7/8 in, B

Specifications & Compliance

Manufacturer #

6XJ01

Brand

DAYTON

Nameplate Horsepower @ 60 Hz

1/8 hp

Nameplate RPM @ 60 Hz

1,140 RPM

Frame Size

48Z

Nameplate Voltage @ 60 Hz

115V AC

Full Load Amps @ 60 Hz

3.5 A

Motor Enclosure Type(Abbreviated)

TEFC

Motor Thermal Protection

None

Nameplate Service Factor @ 60 Hz

1

Output Shaft (Dia x L)

1/2 in x 1-7/8 in

Phase

Single

Frequency

60 Hz

Insulation Class

B

Shaft Diameter

1/2 in

Shaft Length

1-7/8 in

Motor Design

Split-Phase

Mounting Type

Cradle Base

Motor Enclosure Type

Totally Enclosed Fan Cooled

Motor Shaft Rotation

CW/CCW

Nominal Efficiency

50 %

Number of Speeds

1

Efficiency Rating

Standard Efficiency (IE1)
